Brand: RSG
Model: 27050
| Dimensions | |
|---|---|
| Width | 130.00 |
| Height | 173.00 |
| Length | 304.00 |
£1,576.62
£3,697.51
Price Ex Vat: £1,313.85

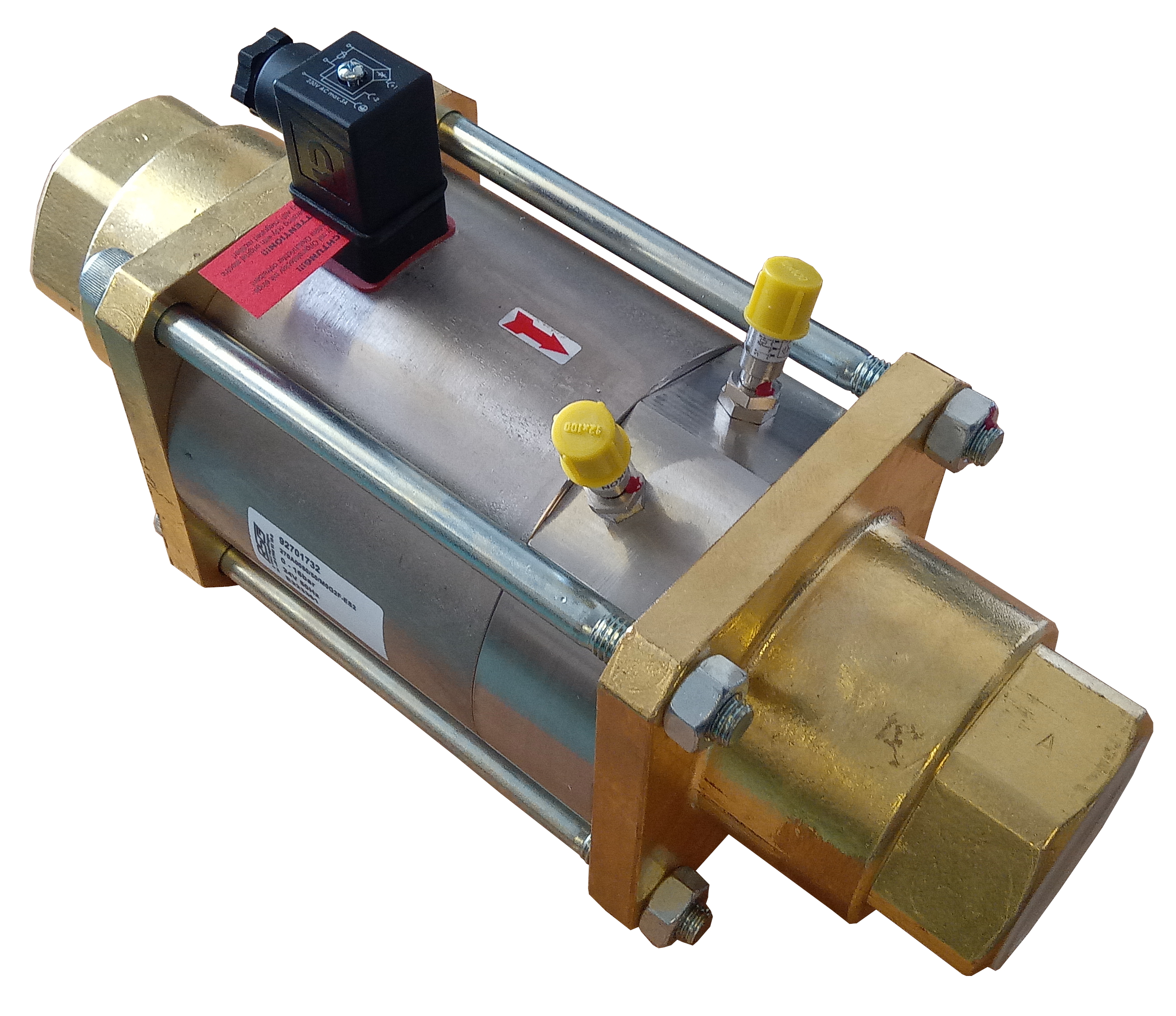

Coax solenoid valve 2 way 0-16 Bar DN50 2 inch RSG 27050
Function: 2/2 way normally closed, option normally open
Operation: direct acting
Pressure: 0 to 16 Bar
Orifice: 50mm
Kv flow factor: 787 L/Min
Port: 2 BSP, option NPT or flange
Body: Brass, option brass nickel plated, 304 or 316L stainless steel
Internals: stainless steel 316L
Media: Fluids under 500 CST and gases compatible with materials of construction.
Media temperature: -10°C to +100°C
Fluid Seals: FKM and PTFE, option NBR or EPDM.
Water Seals: UHMW Polyethylene. Excellent wear and abrasion resistance. Very good lubricity in water based media. The special sharp-edged shape of the dynamic seal has a stripping effect on the piston/plunger that removes limescale + debris. Max +80°C
Gaseous Seals: Fluoroloy® A21. Excellent wear resistant material, low friction, broad chemical compatibility and provides perfect tightness performance with gaseous media. Max +80°C.
Oxygen Seals: BAM approved FKM + PTFE seals, oil/grease free cleaning of all the valve parts, special grease for 16 Bar oxygen +60°C Maximum and correct packing and marking for oxygen application. Finally, the valve will be checked for tightness with nitrogen and packed for oxygen service.
Vacuum Seals: PTFE with leakage <10¯⁶ mbar L/S.
Voltages: 12vDC, 24vDC, 24vAC, 110vAC or 230vAC with other voltages available upon request.
Power: 91 Watts (AC rectified) or 73 Watts DC
Coil: DIN43650A 100% duty rated IP65 with connector (Included)
Approvals: TÜV, DGVM
Options: 270A50 normally closed, 270B50 normally open, without oil or grease, manual over ride, inductive open and/or closed position switches with LED + 2mtr cable, various DIN connectors or aluminium terminal box, mounting brackets and modular sub base mounted systems.
HS Code: 84818079
Data Sheet
