Brand: Connexion ®
Model: EPV2
| Dimensions | |
|---|---|
| Width | 50.00 |
| Height | 106.00 |
| Length | 50.00 |
£221.76
£288.61
Price Ex Vat: £184.80

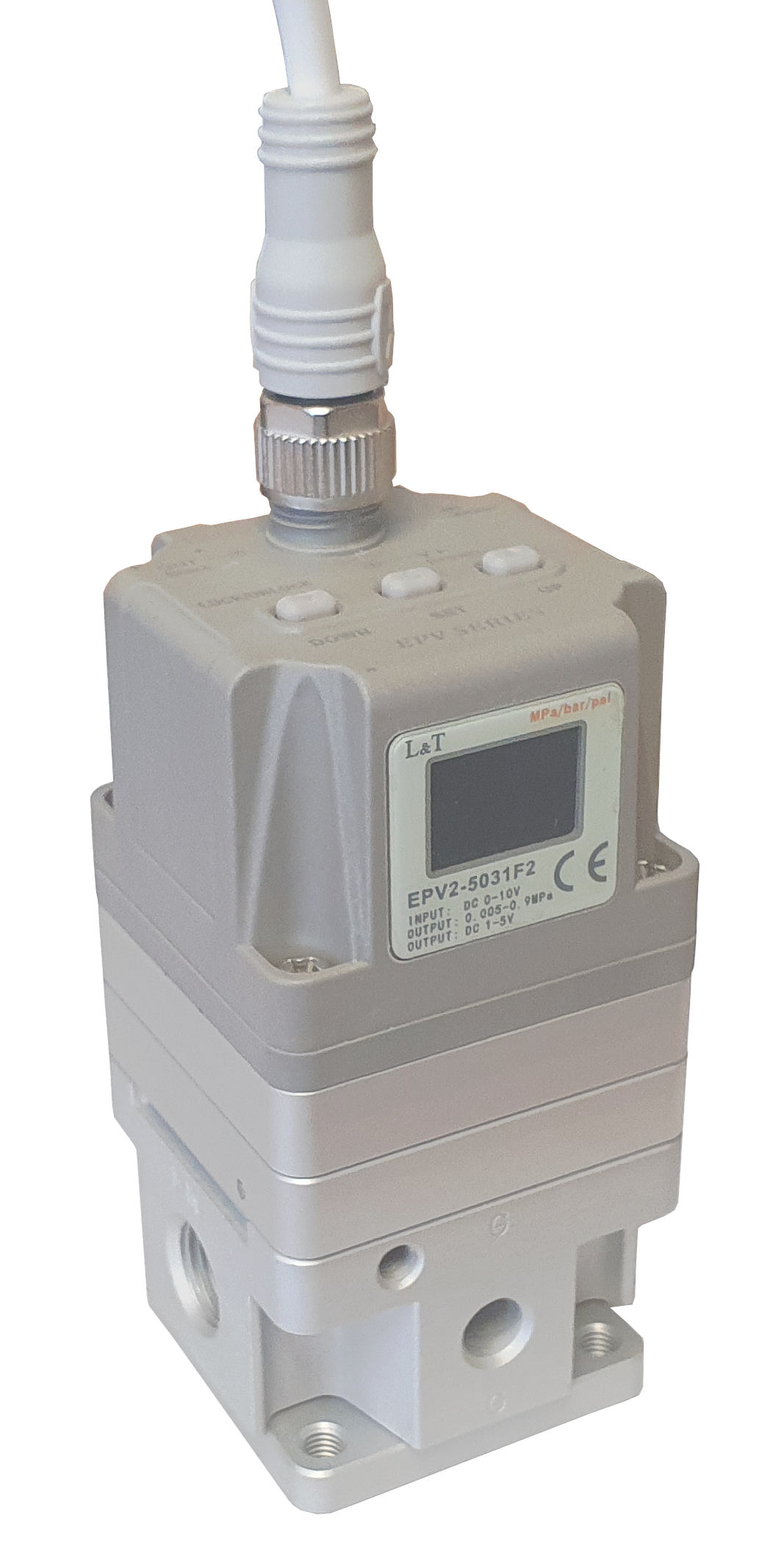

Digital air pressure regulator with modulating control 0.005 to 0.9 MPa.
Voltage: 24vDC (+10%)
Input pressure range: 1 to 10 Bar Max (0.1 to 1 MPa)
Output pressure ranges:
EPV21 0.005 to 0.1 MPa (0.05 to 1 Bar)
EPV23 0.005 to 0.5 MPa (0.05 to 5 Bar)
EPV25 0.005 to 0.9 MPa (0.05 to 10 Bar)
Input control signal:
Current: 4 to 20mA or 0 to 20mA (Resistance: Below 250Ω)
Voltage: 0 to 5 volt or 0 to 10 Volt DC. (Resistance: 605KΩ)
Output Signal:
Analogue: 1 to 5vDC (Resistance more than 1K Ω)
4 to 20mA (Resistance below 250 Ω)
Switch: NPN (load is connected to Positive and the Negative is switched NPN)
Switch: PNP (load is connected to Negative and the Positive is switched PNP)
Port sizes: 1/4 or 3/8, BSP (G), NPT, NPTF or Rc thread.
Cable options: 3mtr with straight connector (S) or option 3mtr with 90 degree connector (L)
Mounting Bracket: Flat bracket (B) or L Bracket (C)
ACCURACY
Linear: 1% F.S. Max
Temperature Characteristics: 2% F.S. Max
Hysteresis: 0.5% F.S. Max
Display Precision: 2% F.S. Max
Repeatability: 0.5% F.S. Max
Display Division: 1000
Data sheet
