Description

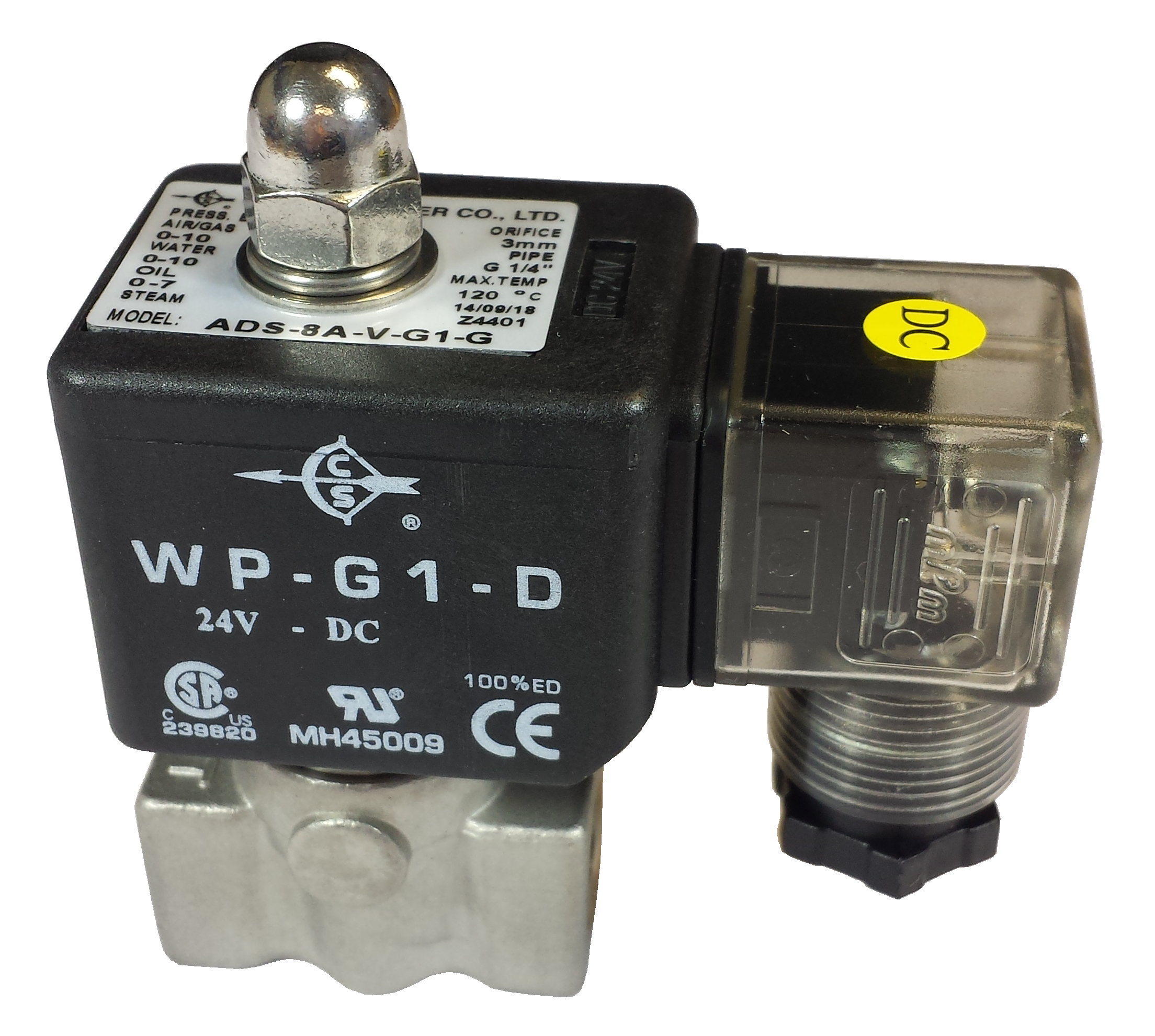

1/8 inch Stainless solenoid valve CS Fluid Power ADS6A, ADS6B and ADS6C.
Function: 2/2 way normally closed
Operation: direct acting
Port: 1/8 BSPT, option NPT thread
Body: 316 stainless steel
Internals: stainless steel
Pressure: 0 to 10 Bar according to voltage and orifice
Vacuum: 0 to -101kPa (relative 757.56 mmHg) or 99.67% vacuum
Orifice: 3mm (ADS6A), 4mm (ADS6B) or 5mm (ADS6C).
Flow: 3.71 to 9.2 L/Min according to orifice, based on water with 1 Bar pressure drop.
Temperature: -10 to +180°C Max according to seal material
Sealing: FKM standard, Option EPDM, NBR, Silicone, PTFE, VST, Neoprene, ECO, HNBR, Hypalon, Butyl IIR
Media: air, water, light oils, vacuum and most other fluids under 50CST and gases compatible with materials of construction.
Coil: WPG1 12 Watt UL, CSA, IP67 CE approved Class H 100% duty rated DIN43650A
Protection: IP65 with LED connector (Included)
Coil Option: ATEX EExmIIT4 Temperature Class T4 T130°C Ex mb IIC T4 and Gb Ex mb tb IIIC T130°C Db for hazardous area 21 and 22
Voltage: 12vDC, 24vDC, 48vDC or 24vAC, 48vAC, 110vAC or 230vAC.
Other options: Manual Override, silver shading ring, degreased for oxygen use.

Equivalent To

CS Fluid Power, ADS6
ACL solenoid valve, E111ANB25, E111ANV25, E111ANE25, E111ANW25, E111ANB31, E111ANV31, E111ANE31, E111ANW31
Burkert solenoid valve, 1/8, 126080
ASCO solenoid valve, 8262G035, SCG225B008
M&M international, B298DKG, B298DVH
