Description

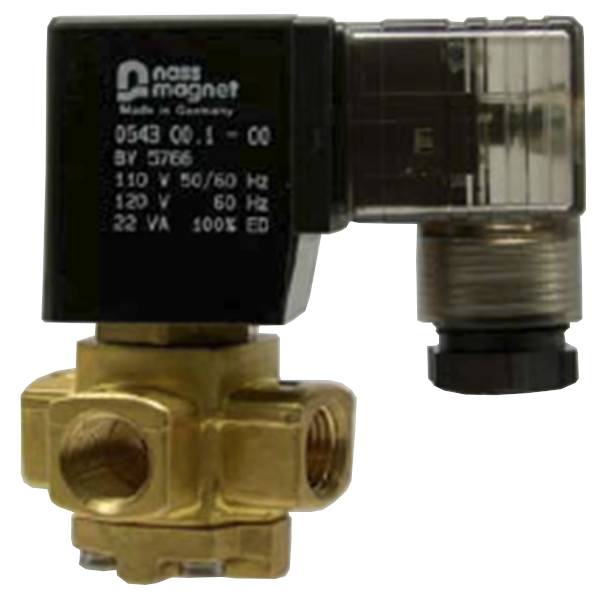

1/8 + 1/4 small body (UT03/UT06) or 1/4 3/8 (UT08/UT10) 3 way universal brass solenoid valve series UT
Function: 3/2 way universal (can be piped normally closed, open or diverting)
Operation: Direct acting
Port: 1/8, 1/4 or 3/8 BSP, option NPT thread
Body: Brass
Internals: stainless steel
Seal: NBR standard, option FKM
Media: compressed air, water, vacuum, light oil and most other fluids under 50CST and gases compatible with materials of construction.
Internals: stainless steel
Orifice: 1/8 + 1/4 small body: 0.8mm, 1mm, 1.2mm, 1.5mm, 1.8mm
Orifice: 1/4 + 3/8 larger body: 1.3mm, 1.6mm, 2mm, 2.4mm, 3mm
Pressure: 0 to 10 Bar according to orifice
Coil: Nass Magnet 8 Watt 8/30 (with connector included) Class F 100% duty rated (Models UT03+UT06)
Coil: Nass Magnet 15 Watt 13/30 IP65 (with connector included) Class H 100% duty rated (Models UT08 + UT10)
Coil option 22002EX: ATEX 5.2 Watt EExmIIT4 Temperature Class T4 T130°C Ex mb IIC T4 and Gb Ex mb tb IIIC T130°C Db for hazardous area 21 and 22 with max media temperature +80°C.
Coil option 22003EX: ATEX 10.1 Watt EExmIIT4 Temperature Class T4 T130°C Ex mb IIC T4 and Gb Ex mb tb IIIC T130°C Db for hazardous area 21 and 22 with max media temperature +80°C.
Protection: IP65 with connector (Included)
Voltage: 12vDC, 24vDC, 48vDC, 110vDC or 12vAC, 24vAC, 48vAC, 110vAC, 230vAC or 380vAC.

Equivalent To

asco, 8320g132, scb320b015, scb320b015MB, scb320b013, scb320b015, scb320b029, scb320b003, scb320b083, scb320b132, scb320b136, scb320b083mb, scb320b001, schtb320b015, scb320b130, scb320b134, scb320b015ms, l340v09g, l340v10g, 8320G130, 8320G001, 8320G212, 8320G083, 8320G213, 8320G003, 8320G214, 8320G172, 8320G174, 8320G176, 8320G178, 8320G013, 8320G215, 8320G015, 8320G216, 8320G017, 8320G217, 8320G182, 8320G184, 8320G186, 8320G188, 8320G136, 8320G027, 8320G218, 8320G029, 8320G219, 8320G031, 8320G220, 8320G192, 8320G194, 8320G196, 8320G198
