Description

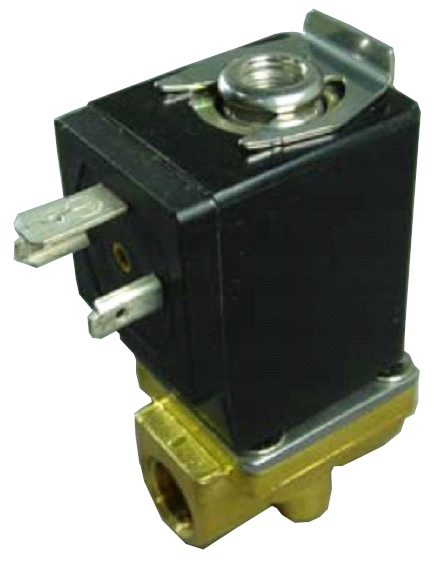

1/8 1/4 3/8 1/2 Brass solenoid valve Sunwell ZT
Function: 3/2 way normally closed
Operation: Direct Acting
Port: 1/8, 1/4, 3/8 or 1/2 BSP, option NPT thread
Pressure: 0 to 13 Bar (According to Orifice + Coil power level)
Vacuum: 10-2 Torr
Body: Brass
Internals: stainless steel
Orifice: 1.3mm, 1.6mm, 2mm, 2.5mm, 3mm, 4mm and 5mm
Kv flow factor: 1.3 to 13.3 L/min according to orifice based on water with 1 Bar pressure drop
Seals: NBR standard, option EPDM, FKM, FFKM and Ruby.
Media: air, water, vacuum, gases and fluids under 50 CST and gases compatible with materials of construction.
Media temperature: -5°C to +80°C NBR seals, option -10°C to +145°C with FKM, EPDM or Ruby seals.
Coil: 15 Watt or 18.5 Watt Nass Magnet Class H CE IP65 approved 100% duty rated DIN43650A
Protection: IP65 with connector (Included)
Coil option: ATEX EExmIIT4 Temperature Class T4 T130°C Ex mb IIC T4 and Gb Ex mb tb IIIC T130°C Db for hazardous area 21 and 22 with max media temperature +80°C.
Voltages: 12vDC, 24vDC, 48vDC, 110vDC, 220vDC or 12vAC, 24vAC, 36vAC, 48vAC, 110vAC, 230vAC or 380vAC 50/60hz.
