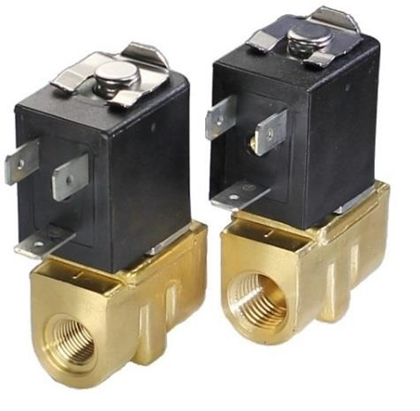

M5 1/8 1/4 Latching Brass Solenoid Valve 0-10 Bar 2/2 1-3mm

Brand: AAA (Sunwell)

Model: BL01,03,06

Width 22.00
Height 54.00
Length 22.00

£40.80 £61.20
Price Ex Vat: £34.00

0 in stock


M5 1/8 1/4 inch Brass 2/2 solenoid valve BL01 BL03 BL04 BL06
Function: 2/2 way latching / bi-stable
Operation: direct acting
Port: M5 or 1/8 (BL01-03 22x22mm body) and 1/8 or 1/4 BSP thread (BL04-06 22x35mm body), option NPT or Rc thread
Body: Brass
Internals: stainless steel
Pressure: 0 to 10 Bar according to orifice
Vacuum: 10-2 Torr or 10-1 Torr according to orifice (Not with PTFE seal)
Temperature: -20°C to +80°C
Orifice: 1.0mm, 1.3mm, 1.6mm, 2.0mm, 2.5mm or 3mm
Kv flow factor: 0.5 to 4.5 l/min according to orifice
Media: Vacuum, air, water, light oils and other fluids under 50 CST and gases compatible with materials of construction.
Coil: 6 Watt 24vDC, 6.9 Watt 6v + 12vDC Nass Magnet system 8/22 DIN43650B 100% duty rated.
Mounting holes: M3
Mounting plate optional

User Reviews

Paul on Feb 2, 2023

Hi Arron Just to let you know, I have received the latching solenoids and fitted a couple today and that they are working OK. Thank you for your help and assistance with this order, the service provided was first class and I shall be in touch for any future orders. Kind regards, Paul.
