11/4 Stainless Solenoid Valve 0.5-10 Bar 2/2 Latching

Brand: Shako Co Ltd

Model: LSPU22512

Width 96.00
Height 145.50
Length 131.00

£295.74 £443.60
Price Ex Vat: £246.45

15 in stock

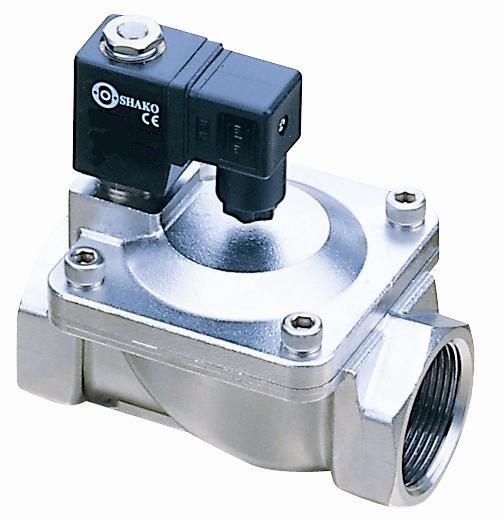

11/4 inch stainless steel solenoid valve Shako LSPU225A-12
Function: 2/2 way latching
Operation: pressure assisted, requires Min 0.5 Bar differential
Port: 11/4 BSPP, option NPT or Rc thread.
Pressure: 0.5 to 10 Bar differential, 15 Bar max working
Body: 316 stainless steel
Internals: stainless steel
Shading ring: Copper, option silver or without ring for demin water, RO water, pure water and Adblue.
Orifice: 38.0mm
Kv flow factor: 367 L/min based on water with 1 Bar pressure drop
Sealing: Viton (FKM) standard optional EPDM, NBR or HNBR
Media: air, water, oil and other fluids under 50 CST and gases compatible with materials of construction.
Temperature: -10°C to +180°C with Viton seals, option NBR -15°C to +80°C, EPDM -5°C to +130°C, HNBR -40°C to +150°C.
Protection: IP65 with connector (Included)
Coil: 22003L Latching coil 6vDC or 12vDC, 10-20 mSec power pulse stays open, reverse polarity power pulse will stay closed.

SPU225 solenoid valve is ATEX approved according to 94/9/EC certificate number Sira 09ATEX6180X, and also complies with essential health and safety requirements EN 13463-1:2001 and EN 1364-5:2003.

HS code 84818030
