1/4 3/8 1/2 Soft start / Fast vent valve for UCFR UCFRL Type VSS

Brand: Shako Co Ltd

Model: VSS

Width 57.40
Height 131.00
Length 103.00

£118.08 £177.12
Price Ex Vat: £98.40

4 in stock

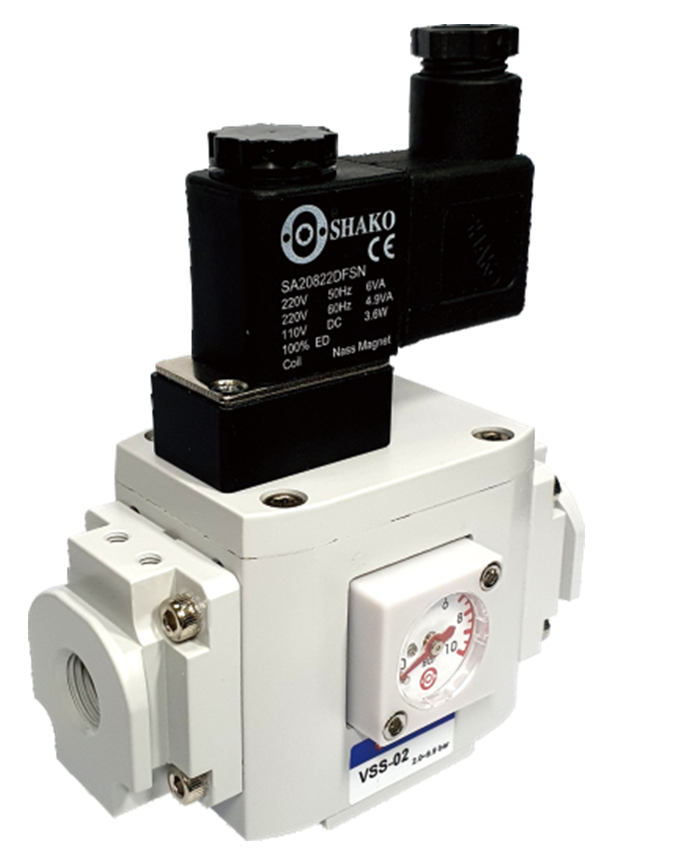

Shako soft start valve model VSS

Port sizes: 1/4, 3/8 or 1/2 BSP or NPT thread (Modular system for UCFR series)
Pressure range: 0.25 to 9 Bar, Test 15 Bar
Exhaust port: 3/8
Temperature range: -10 to +60C ambient
Duty cycle: 100% ED
Coil: low power 4.5 watt IP65 Class F DIN43650B 100% duty rated
Protection: IP65 with connector (Included)
Coil option: ATEX EExmIIT4 Temperature Class T4 T130°C Ex mb IIC T4 and Gb Ex mb tb IIIC T130°C Db for hazardous area 21 and 22.
Voltages: 6vDC, 12vDC, 24vDC, 48vDC, 110vDC and 12vAC, 24vAC, 48vAC, 110vAC and 230vAC.

The function of soft start valve is to build up pneumatic system in safety and protection. Please input air supply to P port on soft start valve, when the coil on soft start valve is energized, soft start valve is open and a little air controlled by internal throttle valve output from A port to make air pressure increase slowly in pneumatic system. While output pressure is equal to 50% of input pressure, soft start valve is fully open in highest flow rate. When the coil on soft start valve is de-energized, P port is closed and the air return to R port through internal check valve for exhaust, the pressure in the system is down to zero to protect whole system in safety.
