3/4 or 1 inch Filter Regulator 316 Stainless Steel 60 Bar USFR-06-08

Brand: Shako Co Ltd

Model: USFR06-08

Width 125.00
Height 275.50
Length 75.00

£822.62 £1,246.40
Price Ex Vat: £685.52

0 in stock

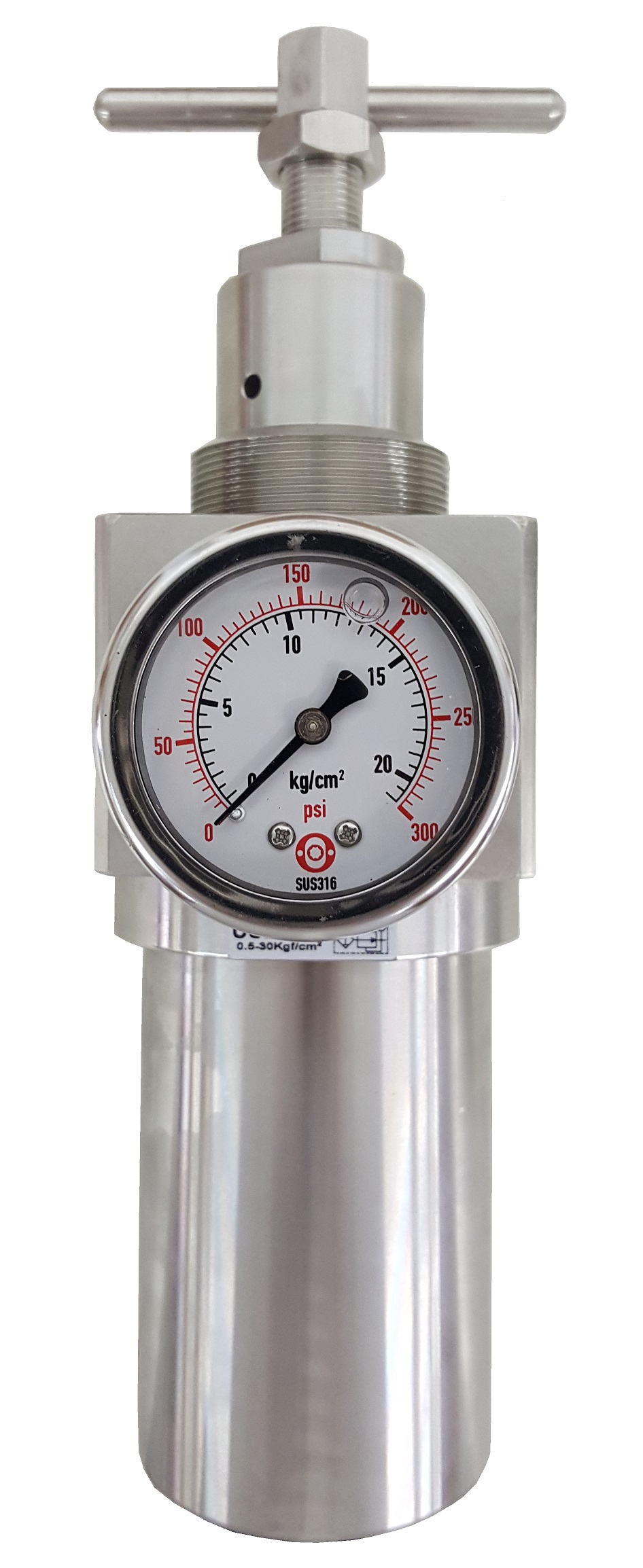

Stainless steel air filter regulator USFR 06-08
Port: 3/4 or 1 BSP thread, option NPT or Rc thread
Body: 316 stainless steel
Bowl: 316 stainless steel
Regulator: Piston 316 stainless steel
Spring: SUS303 (0.5-12 Bar), Alloy Steel (12-28 Bar)
Seals: Viton
Pressure: Inlet 60 Bar Max
Pressure: Outlet adjustable 0.5 to 12 Bar (USFRB) or 12 to 28 Bar (USFR).
Pressure Tested: 60 Bar.
Filter elements: 5 micron 316 stainless, option 40 micron
Drain: semi automatic, option manual or fully automatic. (Full auto drain 10 Bar max)
Flow: 8500, 8900 L/min (ANR) 0.5 to 12 Bar according to port size
Flow: 17000 or 21000 L/min (ANR) 12 to 28 Bar according to port size
Weight: 4580g
Filter bowl: 200cc
Accuracy: 8 to 12 Bar (+/- 2% FSD), 12 to 30 Bar (+/- 3% FSD)
Temperature: -10°C to +70°C
Option: Bowl viewer (Window) 0.5 to 12 Bar (USFRB only).

Supplied boxed and fully assembled with pressure gauge, blanking plug, mounting bracket and 2x mounting screws.

Can be supplied to FDA standards with REACH 579 food grade lubricant.

Metallic parts meet NACE Standard MR-01-75.

Can be supplied according to ATEX Annex 1 Ex II 2GD c T6, Verification module Annex VIII of 2014/34/EU, harmonised standards EN ISO 80079-36:2016, EN ISO 80079-37:2016.
