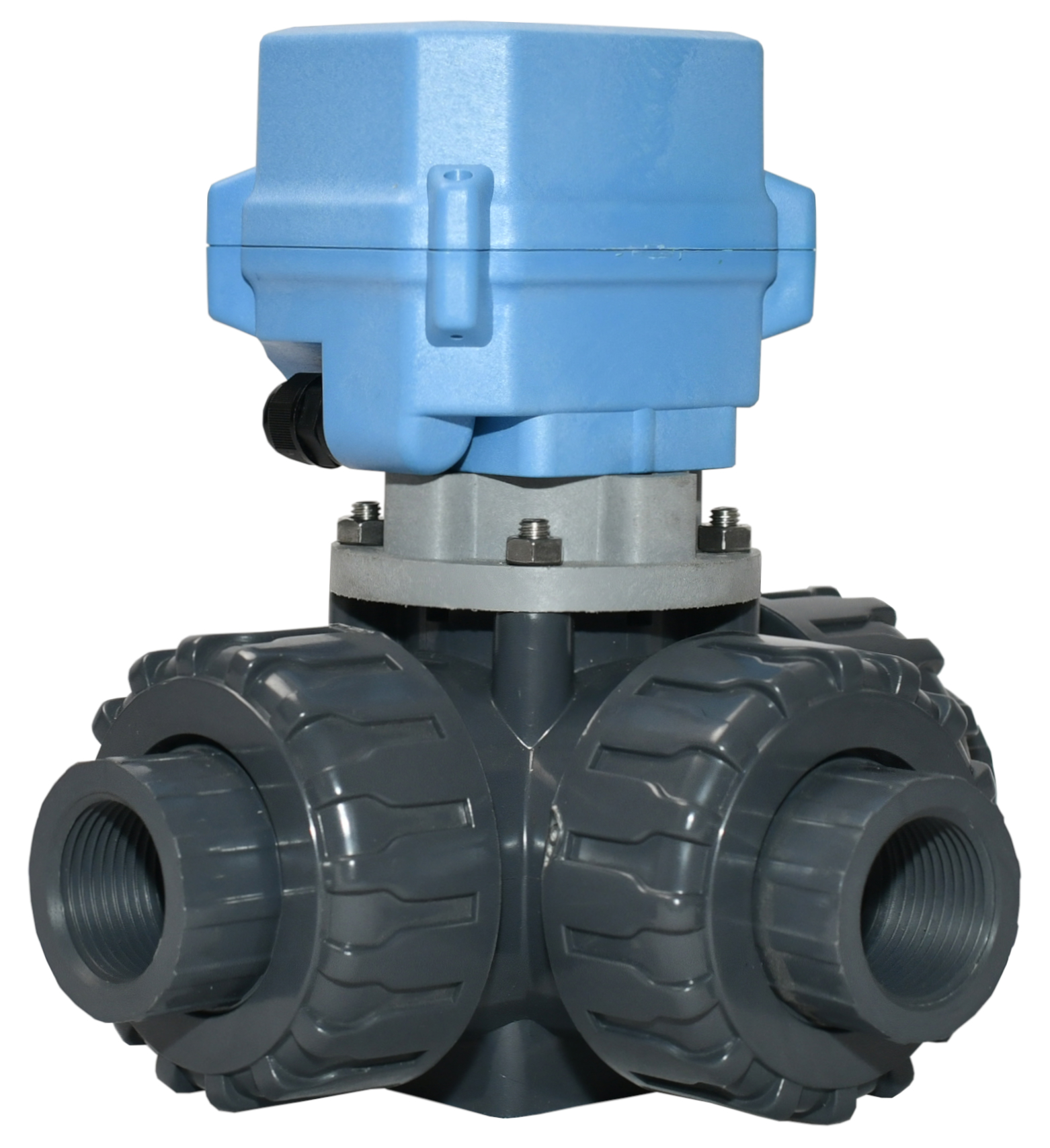

3 way UPVC Motor actuated ball valve 1/2-2" open/close + failsafe

Brand: Connexion

Model: ABV3P

Width 137.00
Height 133.00
Length 137.00

£336.97 £401.29
Price Ex Vat: £280.81

32 in stock


1/2 inch to 2 inch 3 way T or L ported UPVC true union ball valve ABVP3 series.

Torque: 16-27NM
Cycle life: 70,000 open/close
Power: 10.3 Watts
Open or close time: 10 seconds
Protection: IP67
Mounting: ISO5211 F03 + F05
Temperature: -15°C to +60°C ambient
Voltages 12vDC-24vDC-24vAC or 110-240vAC with multi voltage technology.

Control option: Failsafe return or Power Open/Power Close.

Visual position indication
Manual Override (with Allen key provided)
E2 position feed back switches. (Volt free, no voltage is supplied from the actuator. 36v or 220v, 0.4 Amp Max).

Ball valve true union:
BSP thread, option NPT or metric solvent socket
Bore: 14 to 38mm according to port size
Body + internals: UPVC
Pressure: 0 to 10 Bar
Temperature rating: +2°C to +90°C Max
Seals: PTFE + EPDM, option PTFE + FKM
Media: air, water and corrosive media suitable with the materials of construction such as seawater, swimming pools, salt solutions, acids and alkali's.
Can be supplied L Port or with T port configuration with 4 flow directions, flow direction D (standard), option E, A + B. (see image or data sheet for clarity)

Actuator Function options:
Failsafe return = Power +ve Red; -ve Black valve will move, Power OFF will automatically return to start position with reserve power.

Failsafe actuators require 30 second power ON to charge reserve power.
Will draw less than 0.5 Watt when powered and not moving.
E2 volt free open + closed position feedback 3 wires (Green + Yellow and common White)

Power Open/Power Close = Connect Red +ve and Black -ve, Green is the control wire.
Power to GREEN valve moves, remove power from GREEN valve returns to start position.
E2 volt free open + closed position feedback 4 wires (Blue + Grey and Yellow + White)
