Description

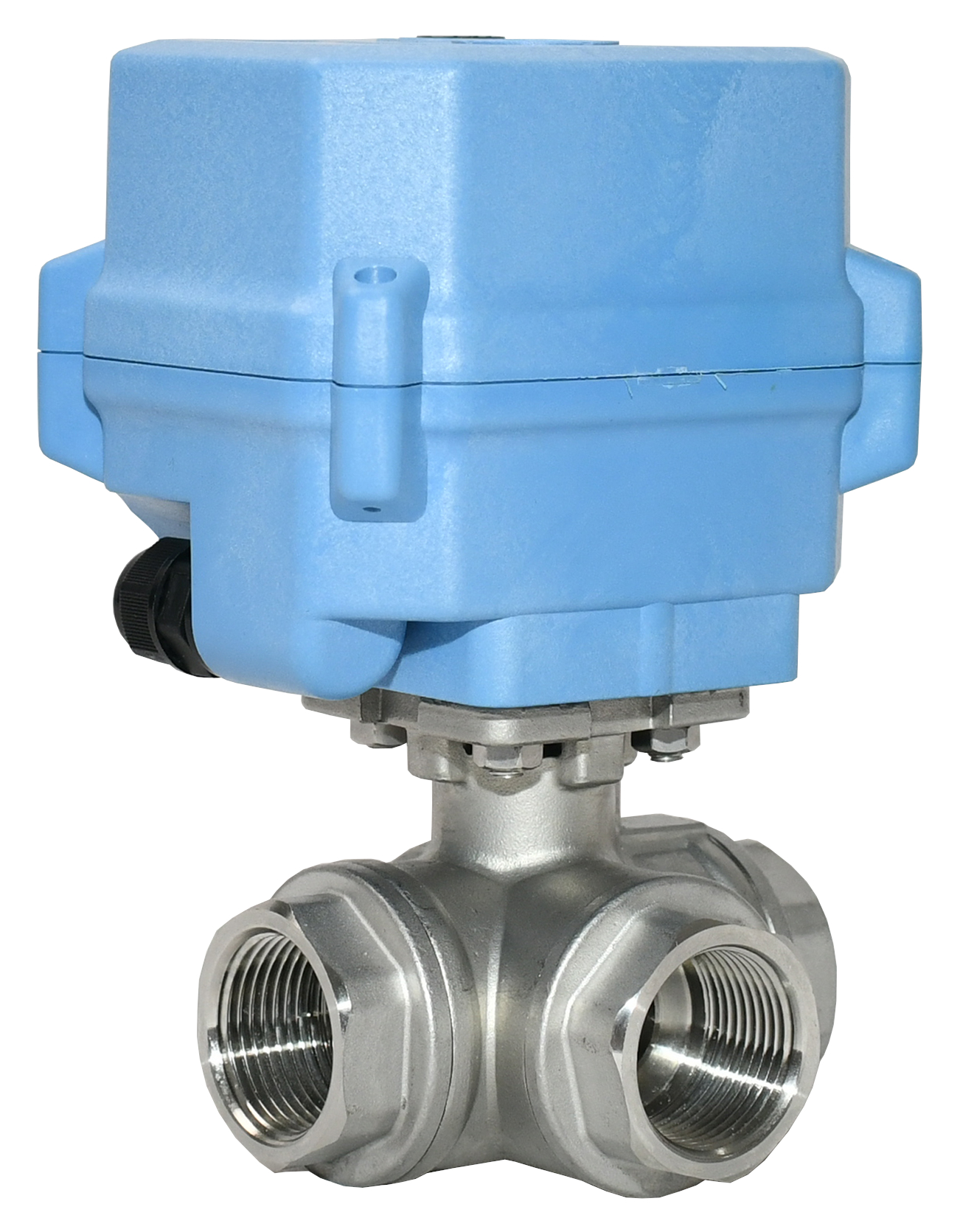

1/2 inch to 1 inch 3 way T or L ported stainless steel ball valve ABV3STL series.

Actuator:
Torque: 16-27NM
Cycle life: 70,000 open/close
Power: 10.3 Watts
Open or close time: 10 seconds
Protection: IP67
Mounting: ISO5211 F03 + F05
Temperature: -15°C to +60°C ambient
Voltages 12vDC-24vDC-24vAC or 110-240vAC with multi voltage technology.

Control option: Failsafe closed, Failsafe Open or Power Open/Power Close.

Includes:
Visual position indication
Manual Override (with Allen key provided)
E2 position feed back switches. (Volt free, no voltage is supplied from the actuator. 36v or 220v, 0.4 Amp Max).

Ball valve:
BSP thread, option NPT thread
Bore: 12 to 18mm according to port size
Body + internals: 304 stainless steel
Pressure: 0 to 10 Bar
Temperature rating: +0°C to +90°C Max
Seals: all PTFE, option PTFE/ WRAS EPDM or PTFE/FKM
Media: air, water and corrosive media suitable with the materials of construction.

Can be supplied L Port or with T port configuration with 4 flow directions, Standard Flow direction D, option E, A or B. (see image or data sheet for clarity)

Actuator Function options:
Failsafe return = Power +ve Red; -ve Black valve will move, Power OFF will automatically return to start position with reserve power.

Failsafe actuators require 30 second power ON to charge reserve power.
Will draw less than 0.5 Watt when powered and not moving.
E2 volt free open + closed position feedback 3 wires (Green + Yellow and common White)


Power Open/Power Close = Connect Red +ve and Black -ve, Green is the control wire.
Power to GREEN valve moves, remove power from GREEN valve returns to start position.
E2 volt free open + closed position feedback 4 wires (Blue + Grey and Yellow + White)
