1/4 Filter/Regulator Lubricator 316 Stainless 30 Bar Miniature SSFRL600

Brand: Shako Co Ltd

Model: SSFRL600

Width 61.50
Height 191.70
Length 90.00

£458.94 £695.36
Price Ex Vat: £382.45

0 in stock

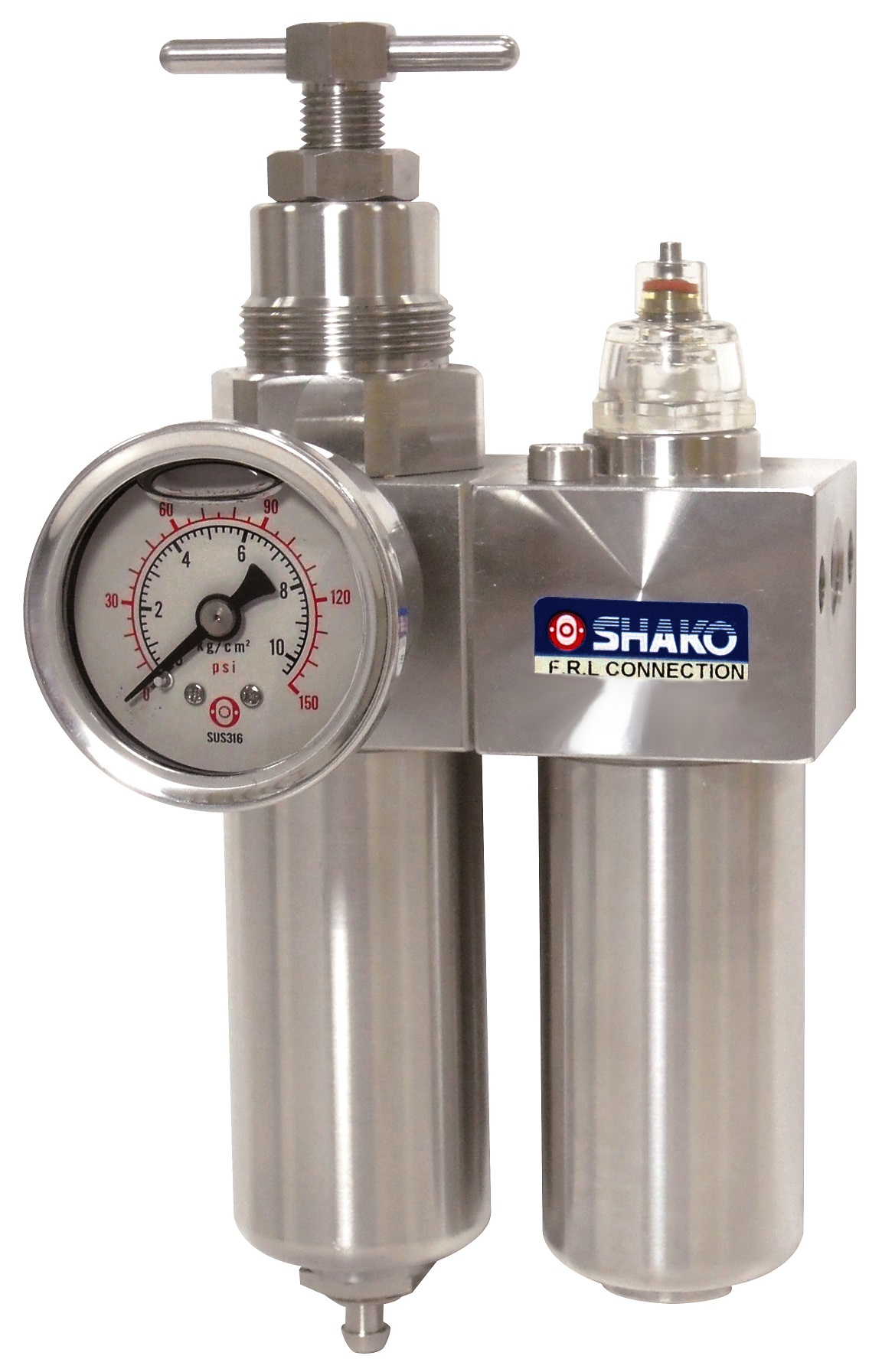

1/4 inch Stainless steel air filter regulator lubricator SSFRL600
Port: 1/4 BSP thread, option NPT or Rc thread
Inlet Pressure: 30 Bar Max
Outlet pressure: 0 to 20 Bar
Pressure Tested: 30 Bar
Body: 316 stainless steel
Bowl: 316 stainless steel
Regulator: 316 stainless steel piston
Filter element: 5 micron 316 stainless, option 40 micron
Drain: semi automatic, option manual drain
Accuracy: 0 to 8 Bar (+/- 3% FSD), 8 to 12 Bar (+/- 2% FSD), 12 to 20 Bar (+/- 3% FSD)
Flow: 1850 L/Min max
Filter bowl: 105cc
Lubricator bowl: 125cc
Temperature: -10°C to +60°C
Weight: 2660g

Supplied with stainless steel pressure gauge, mounting bracket, plug and 2x mounting screws.

Can be supplied to FDA standards with REACH 579 food grade lubricant.

Can be supplied according to ATEX Annex 1 Ex II 2GD c T6, Verification module Annex VIII of 2014/34/EU, harmonised standards EN ISO 80079-36:2016, EN ISO 80079-37:2016.
