Description

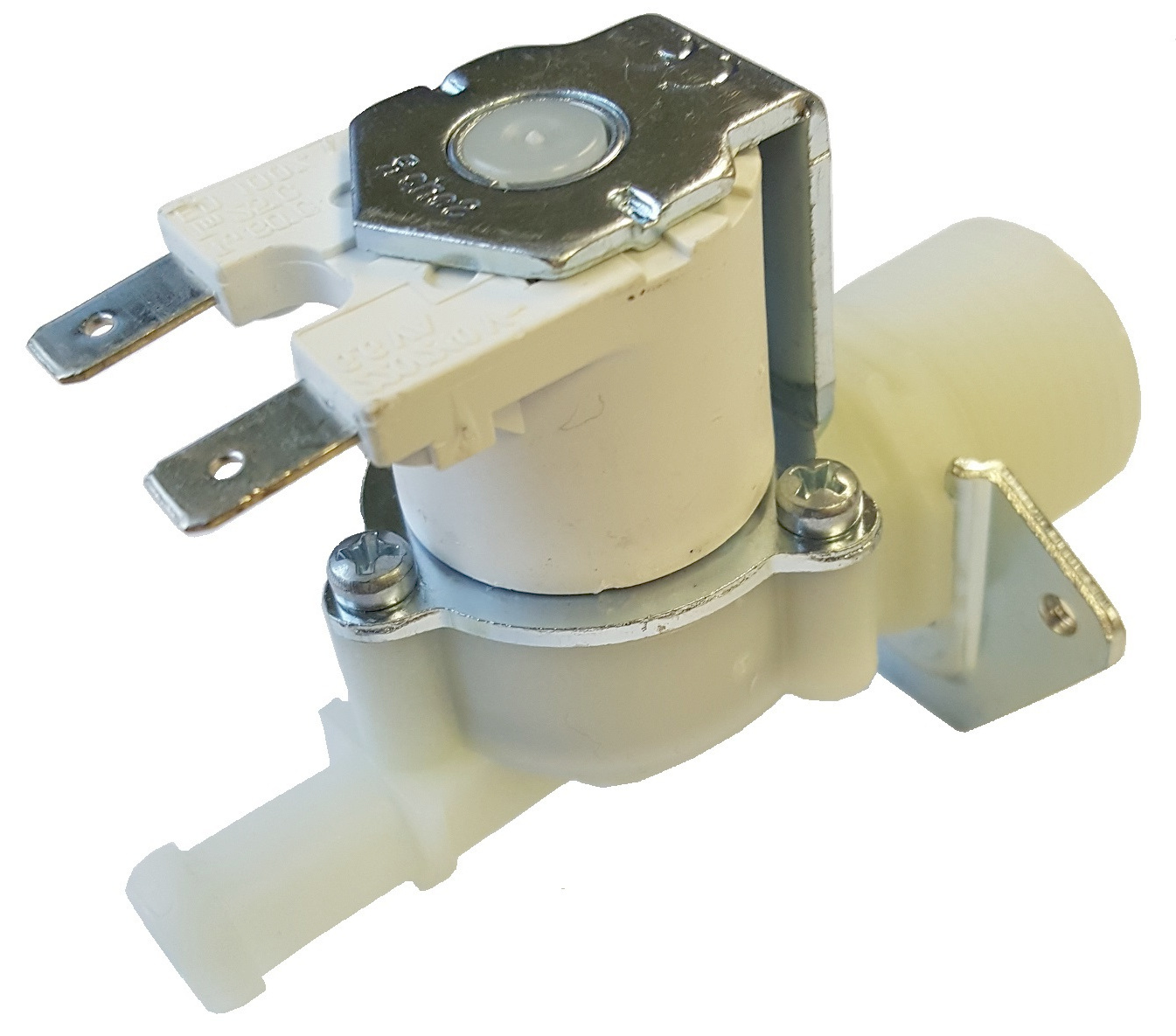

3/4 plastic washing machine water single solenoid valve S180
Function: 2/2 way normally closed
Operation: Pressure assisted (Min 0.2 Bar pressure differential)
Port: 3/4 BSP Male inlet with 180 degree (straight) single 104F 10.5mm or 120F 12.5mm hose tail outlet.
Pressure: 0.2 to 10 Bar
Orifice: 11.0mm
Body: Nylon white good grade GF
Coil: R 6.2 Watts IP00 with faston tag Class F 60% duty rated (Max 2 Min power ON with 3 min power OFF for cooling)
Voltage: 12vDC, 24vDC, 12vAC, 24vAC, 110vAC or 230vAC
Approvals: WRAS, KTW and DM174 for drinking water production, transfer and storage, ACS health compliance certificate, ENEC European Norms Electrical Certification, CSV (European Union Aviation Safety Agency), UL Underwriter Laboratories certified, MOCA FCM (Food Contact Materials), NSF food certification for public health protection.

This is the most common RPE type R cold Water inlet Solenoid Valve for most domestic and commercial washing machine, dishwasher, drinking water dispensers and most other automated water control systems. Standard 3/4 BSP appliance hose fits directly onto the 3/4 BSP male thread.

Equivalent To

12v solenoid valve water 1/2" barb
40287 inlet solenoid
Abbychart MWS90004, HE90087
Adler Dishwasher CF40
Angelo Pro Combi Oven FM1221G3, FM1011E3
Ariston washing machines 1218CDE, 1218CDE3B, 1258A.DRY, 1258CD, 1258CD3B, 156, 420(ARI), 425(ARI), 515, 520(ARI), 615, 616(ARI), 620(ARI), 626(ARI), 750CXD, 757CXD, 818, 820, 828, 880WD, 880WD3BIS, 890CD, 890CD3BIS, 898CD, 898CD3BIS, 900CD, 900CD3B, 900CDA.DRY, 948A.DRY, 948WD, 958CD, 958CD3B, 958CDA.DRY, A1100UK, A1146GB, A1148GB, A1158GB, A1217UK, A1300UK, A2090UK, A615, A636, A800, A810, A811, A817, A826, A836, A846, A848, A848BEAB, A878BEAB, A878GB, AB1030CUK, AB1036TUK, AB1036UK, AB1240CUK, AB930CUK, AB936UK, AD10UK, AD12DSGUK, AD12UK, AF1083T/1UK, AF1083TUK, AF883TUK, AI1047MT, AI1244CUK, AI1247MUK, AI1247UK, AI1248CUK, AI1248MCUK, AI1257MUK, AI1259MCUK, AI1457MTUK, AI834T, AI837MT, AI837T, AI847MT, AL1046TUK, AL1059TUK, AL1146TUK, AL1156TUK, AL1250CTUK, AL1250CUK, AL1256T/1UK, AL1256TUK, AL1257TUK, AL1456TUK, AQ800, AV1037, AV1037W, AV1048CUK, AV1243UK, AV1244UK, AV1247CUK, AV824, AV827, AV834CUK, AV835, AV838CUK, AV839, AW1120, AW1150GB, AW1280UK, AW820, AW821, AW851, AWD1200UK, CD1151, CD1152, CD12TUK, CD802GB, CD823GB, CD852GB, CW810, CXD750GB, CXD757GB, KCD121BRUK, KCD121WHUK, KCD12TBRUK, KCD12TUK, KCD12TWHUK, KLB121BR, KLB121WH, KLB12T, KLB8T, LB12TUK, LS1054NGB(B), LS1054NGB(W), LS1084NGB, LS605UK, S1000UK, S1200AUK, S1200UK, S800UK, SWD1000UK
Aristarco Dishwasher
auk muller svgw
Baumatic single solenoid valve, 2554935OH
Beko WM1010, WM1060, WM1080, WM1210S, WM1210W, WM1210WK1, WM1260, WM1280, WM1412S, WM1412W, WM1510S, WM1510W, WM1512S, WM1512W, WMA1510S, WMA1510W, WMA1512S, WMA1512W, WMA1613S, WMA1614W and WMB10W, WD61PT
Breakline dishwasher GS50, PL50
Bravilor coffee machine RLX4
Bravillor water boiler Bonamat HWA20, MAT12KTS, Matic2, Matic2WB, Matic3KTS,Matic3WB,THA10,THA20
Buffalo water boiler and tea urn CF357, NBB3
Burco, 444442472, Burco water boiler / heater solenoid valve fits models: 76500 - 10 Litre, 76501 - 20 Litre, 76502 - 20 Litre, 76700 - 3 Litre, 76702 - 20 Litre, 76703 - 15 Litre, 76704 - 15 Litre, BURCO 082634066
Bush, wmns714w, n146ca2
c200cs water solenoid
ChefKing 50
Classic H750 Gass Washer, H750, Hydro 850
Classic Dishwasher ECO1 H750, 700S, 8750-NL-HKH, DUO2, DU03, DUO500, DU)750, ECO1, ECO2, ECO3, H500, H750
Clenaglass water solenoid valve 511B, EMECH401
Colged Dishwasher GL74, BETA 50
Comenda LB200, LB215, LB215A
cnkb fpd 180f
Creda washing machine 17009, 17011, 17012, 17013, 17017, 17021, 17022, 17023, 17024, 17025E, 17027, 17028, 17029, 17030, 17031, 170310000Q, 17031E, 17032, 170320000Q, 17032E, 17033, 170330000Q, 17033E, 17034, 170340000Q, 17035, 170350000Q, 17036E, 17037, 17038, 17039, 17040, 17041, 17043E, 17044E, 17045, 17047E, 17048, 17049, 17071E, 17072E, 17076, 17077, 17078, 17079, 17080, 17081, 17083E, 17084E, 17085, 17086, 17087, 17088G, 17094E, 17095E, 17096E, 17098E, 17110, 17111, 17112E, 17112G, 17113G, 17113X, 17120, 17121E, 17306, 17307, 17308, 173090000L, 17316, 17317, 173170000L, 17317D, 173190000L, 17331, 173310000L, 17331E, 17331S, 173320000L, 17332E, 17332S, 17333, 173330000L, 17333S, 17334E, 17336, 173360000L, 17336S, 17337, 173370000L, 17337S, 17343E, 17345, 17345E, 17346X, 47301, 47302, 47303, 47304, W100FW, W1200, W120FW, W120VW, WD1200
Dexion Glass Washer LB044DP, LB044-10-000, LB044DP
DIHR Electron 500 D500 Glasswasher
Ecoserve, SOLENOID VALVE 329 220/240V 10 mm
eki solenoid valve
Electra washing machine 170150000L, 170160000L, 17018, 170180000Q, 170180001Q, 17018G, 17020, 170200000Q, 17050E, 17051, 17052, 17053E, 17054E, 17055, 17055E, 17056, 17057E, 17058E, 17059E, 17091B, 17092B, 17093B, 17207, 17338, 17339, 17340E, 17342E
Elettrobar glass ware dishwasher E78
Electrovalva apa 230V pozitie 180° 3/4"x10.5mm, 50513PC
Eloma Multimax oven B10-11
ENEC SOLENOID VALVE 230 WASHER UNIVERSAL DISHWASHER 180 ° 3/4 ELECTROLUX 4055046
English electric washing machine 1535W, 1545W, EE100A, EE100WD, EE120A, EE80A
Fagor dishwasher FI-30, LCV12, F1-120, F1-30, VPE101
Falcon dishwasher D18E
fpd180g, Haier Drum Washing Machine
Freye 2015 and 2016
Gala washing machine 1011P, 1019P, 1025A, 1025P, 1025W, 1051A, 1051P, 1051W, 1061N, 1061P, 1063N, 1063P, 1151A, 1151P, 1151W, 1161N, 1161P, 1162N, 1162P
General electric washing machine 9535PG, 9538PG, 9545PG, 9935PG, W76PP, W86PP, WM10PM, WM62PC, WM63PS, WM64PK, WRH7505TWW, WWA7300, WWA7500, WWA7503, WWC7602VWW, WWC8602VWW, WWC8802TWW, WWC8802TWW, WWC8806TWW, WWH5502TWW, WWH5506TWW, WWH5508TWW, WWH5602VWW, WWH6502TWW, WWH6504TWW, WWH6506TWW, WWH6508TWW, WWH6602VWW, WWH6604VWW, WWH7302, WWH7502, WWH7502TWW, WWH7503, WWH7503TWW, WWH7504TWW, WWH7506TWW, WWH7508TWW, WWH7602VWW, WWH7603VWW, WWH7604VWW, WWH8502SWW, WWH8502TWW, WWH8502TWW, WWH8504TWW, WWH8504TWW, WWH8505TWW, WWH8506TWW, WWH8508TWW, WWH8602VWW, WWH9502TWW
Halcyon ICE60 Ice Machine, Halcyon Amika 6XL MH100380
Goyen ST2-6-V
Hilta part no: ELVA1V
Hobart inlet valve, AMX16, AM900, AMXX, GX70N, CHH50D, hobart ecomax water inlet solenoid, HOBART 883658-1 DISHWASHER WATER INLET SOLENOID VALVE
Hobart steamer 104G, 204G, 304G, 2227
Hobart water boiler 8GS3-10
Hoover 31138167, 31093008, 31093529, 31089006, 31046527, 31046626, 31053507,LB HV 16 7,LB HV 16 UK, LB ECO1000UK, LBAQUA1000ES, LB ACTIVA 60, LBALIS1000ES, LB ALISE'100, WDALIS1200ES, 37613270, 37601101, 37613437,LB A0125001, LB A8754001, LB WN149001, A0093 001, A0095 001, A0113 001, A0115 001, A0123 001, A0125 001, A1080, A1081, A1100, A1101, A1105 001, A1106 001, A1110, A1111, A1112, A1113 001, A1115 001, A1116 001, A1120, A1121, A1123 001, A1125 001, A1126 001, A1130 001, A1137 103, A2100, A2101, A2110 004, A2120 001, A2121, A2130 001, A2135 001, A2136 001, A2139 001, A2140, A2141, A2142 001, A2146 001, A2149 001, A2150, A2152 001, A2153, A2155 001, A2156 001, A2159 001, A3576, A3582, A3588, A8604, A8606, A8608, A8610, A8612, A8612 135, A8614, A8754 001, A8756, A8758 001, AC336, AC338, WN143 001, WN145 001, WN146 001, WN149 001, WS115 001
Hoshisaki Ice Machine IM21CLE, IM30CLE, IM-130ME, IM100LE, IM130, IM130ME, IM240AME, IM45CLE,
hoshizaki water solenoid, 452993-01
Hotpoint washing machine valve for 1450, RS149029, 1824, 1827, 1828/01, 1828/02, 1828/07, 18331, 18331/9, 18340, 18361, 18370, 18371, 18380, 18381, 1842, 1848, 1850, 1851, 1851/03, 1852, 18580, 18680, 18780, 18871, 18872, 18873, 18880, 6200B, 6200P, 9506W, 9510A, 9510W, 9511W, 9512W, 95130, 95132, 9513W, 9514A, 9514W, 9515A, 9515W, 9516A, 9516P, 9516W, 9517P, 9517W, 9518P, 9518W, 9519W, 9520A, 9520W, 9524A, 9524W, 9525A, 9525W, 9526A, 9526P, 9526W, 9527A, 9527P, 9527W, 9528A, 9528P, 9528W, 9529A, 9529P, 9529W, 9530A, 9530W, 9531W, 9533P, 9533W, 9534A, 9534P, 9534W, 9535A, 9535P, 9535W, 95360, 95362, 9536A, 9536P, 9536PX, 9536W, 9536WX, 9537A, 9537P, 9537W, 9538A, 9538P, 9538W, 9539A, 9539P, 9539W, 9540A, 9540P, 9540W, 9544A, 9544P, 9544W, 95450, 95452, 9545A, 9545P, 9545PE, 9545W, 9546A, 9546P, 9546W, 95470, 95472, 95490, 95492, 9549A, 9549P, 9549W, 9550A, 9550W, 9551A, 9551W, 9554A, 9554P, 9554W, 9555A, 9555P, 9555W, 9556A, 9556P, 9556W, 9559A, 9559P, 9559W, 9560A, 9560P, 9560W, 9561A, 9561P, 9561W, 95620, 95622, 9564A, 9564P, 9564W, 9565A, 9565P, 9565W, 9566A, 9566P, 9566PE, 9566W, 9567A, 9567P, 9567PX, 9567W, 9569A, 9569P, 9569W, 9570W, 9571A, 9572W, 9573W, 9574P, 9574W, 9575W, 9576W, 9577A, 9577P, 9577W, 9578P, 95840, 95842, 9585B, 9585P, 9586B, 9586P, 9589B, 9589P, 9770P, 9773P, 9774P, 9775A, 9775W, 9776A, 9776P, 9777P, 9900A, 9900W, 9901A, 9901P, 9901W, 9912P, 9912W, 9916P, 9916W, 9920A, 9920W, 9924A, 9924W, 9925A, 9925P, 9925W, 9926A, 9926P, 9926W, 9928A, 9928P, 9928W, 9934A, 9934P, 9934W, 9935A, 9935P, 9935W, 9936A, 9936P, 9936W, 9938A, 9938P, 9938W, 9945A, 9945P, 9945W, 9946A, 9946P, 9946W, 9949A, 9949P, 9949W, 9970A, 9970W, 9971A, 9971W, 9972A, 9972P, 9972W, 9985B, 9985P, 9986B, 9986P, 9989B, 9989P, WD21P, WD22A, WD22P, WD22W, WD23A, WD23P, WD23W, WD31A, WD31P, WD31W, WD32A, WD32P, WD32W, WD41A, WD41P, WD41W, WD42B, WD42P, WD43A, WD43P, WD43W, WD51A, WD51P, WD51W, WD52P, WD61H, WD61N, WD61P, WD61S, WD61T, WD61U, WD61X, WD62N, WD62P, WD62S, WD62X, WD63N, WD63P, WD63S, WD64N, WD64P, WD64S, WD71N, WD71P, WD71S, WD71X, WD71YS, WD72N, WD72P, WD72S, WDM73A, WM11P, WM11W, WM12A, WM12P, WM12W, WM13A, WM13P, WM13W, WM14A, WM14P, WM14W, WM19P, WM20A, WM20P, WM20W, WM21P, WM21W, WM22A, WM22P, WM22W, WM23A, WM23P, WM23W, WM24A, WM24P, WM24W, WM25A, WM25P, WM25W, WM26A, WM26P, WM26W, WM29P, WM31A, WM31P, WM31W, WM32A, WM32P, WM32W, WM33A, WM33P, WM33W, WM34A, WM34P, WM34W, WM35A, WM35P, WM35W, WM36A, WM36P, WM36W, WM38P, WM41A, WM41P, WM41W, WM42B, WM42P, WM43A, WM43P, WM43W, WM51A, WM51P, WM51W, WM52A, WM52P, WM52W, WM53A, WM53P, WM53W, WM54P, WM55P, WM56P, WM60P, WM61N, WM61P, WM61X, WM62N, WM62P, WM62X, WM63H, WM63N, WM63P, WM63S, WM63T, WM63U, WM63X, WM64N, WM64P, WM64X, WM65S, WM66P, WM67P, WM68P, WM69P, WM71N, WM71P, WM71X, WM72N, WM72P, WM72X, WM73N, WM73P, WM73X, WM74N, WM74P, WM74S, WM75N, WM75P, WM75S, WM76N, WM76P, WM76S, WM77P, WM79P, WM80P, WM81P, WM82P, WM83P
Icematic Straight through water inlet solenoid valve N20L, Polar CM20, ISEEU065MA
Indesit washing machine 092B1G, 093B1G, 097A0G, 099A0G, 099B1G, 099C2G, 100A0G, 101A0G, 103AOG, 145, 2093, 2099AOG, 2099B, 2100B, 2101AOG, 2101B, 2103AOG, 2103B, 2103W, 2107, 2121, 2252E, 2253E, 2254E, 2255E, 2256E, 2258E, 2448M5G, 2449, 2450M5G, 2500, 267EHIRUNDO, 267HIRUNDO, 269HIRUNDO, 270HIRUNDO, 448M5G, 450M5G, CLASSIC2000, D371B, D372B, EXCL1100, EXCL800, L10LGB, L6SGB, L6SGBT, L6SGBV, L7LGB, MISSIG, W1030B, W1032BR, W1034BG, W1035WG, W1037BQ, W1130G, W1131U, W1150WG, W1230B, W1231WG, W1232WR, W1234WC, W1237BQ, W410G, W610G, W620G, W810BG, W820B, W822R, W823G, W824B, W825WG, W827BQ, W850BGEX, W855WG, W930U, WD1000WGEXEC, WD1001BG, WD1005WG, WD1009WR, WD1109WR, WD921WR, WD922BG, WD925BGEXEC, WDG1095GH(G), WDG1095WG, WDG1195WG, WDG1195WG/1, WDG1295WG, WDG985BG, WDG985WG, WDN1079WG, WDN2190BG, WDN2190WG, WDN2191WR, WDN2196WG, WDN960BG, WDN960WG, WDN962WR, WDN966BG, WDN966WG, WDS1000UK, WG1030G, WG1033TG, WG1034TG, WG1085WG, WG1086G, WG1130TG, WG1185BG, WG1185WG, WG1185WG/1, WG1230(GF)G, WG1230G, WG1230TGFG, WG1233TG, WG1234TG, WG1239TSG, WG1285WG, WG1286G, WG1286SG, WG12G, WG1385WG, WG1386W(G), WG1430TG, WG1432GUK, WG1436T(G), WG2020WG, WMS1200TXUK, WN1060WG, WN1060WG/1, WN1060WG/2, WN1061WR, WN1062WR, WN1063WG, WN1069WG, WN1072WR/2, WN1080WG, WN1090BG, WN1090BG/1, WN1090WG, WN1090WG1, WN1095WG, WN1095WG1, WN1096BG, WN1096WG, WN1190BG, WN1190BG1, WN1190WG, WN1190WG1, WN1191BR, WN1191WR, WN1196BG, WN1196WG, WN1263WG, WN1290BG, WN1290WG, WN1290WG1, WN1291WR, WN1296WG, WN1299WG, WN610WR, WN850WG, WN860BG, WN860BG1, WN860WG, WN860WG1, WN862WG, WN865WG, WN865WG1, WN961BR, WN961WR, WN961WR1
Instanta water boiler CT series, CT200, CT300, CT4000-3, CT6000-6, CT6000-9, WA15-3, WAS, WB200, WM15, WM3, WM7
invacare macerator inlet solenoid valve
invensys, vai 4920, k 76893, S2500 00
Jackson, washing machine 27301, 27302, 273030000L, 273040000L, 27401, 27402, 274030000L, 274040000L, 274050000Q, 274060000Q, J1000, J1200D, JJ3 water boiler
Kenwood, KDW60B16 Dishwasher Solenoid Valve
Kronus dishwasher 075S
Krupps Koral 208DB
Lainox Combi Oven solenoid valve fits models MG101M, HME101P, VG102D, ME061M, ME061D, ME101M
Lamber Newscan dishwasher L25, NSP1200, F85, NS505, DSP50
Lotus dish / glass washer MS905
Magnetventil 1-fach gerade 230V Eingang 3/4" DN10
mareno, npc78g, npc74g, npc94g, npc98g, pasta cooker
Maidaid glasswasher, C40, Dc1000, DC40, Z42, C510
Maidaid and Madiaid Halcyon dishwasher, D18E, D50, LB40, LTB11, C50D, ASC37561
Maidaid ice maker, M130-65A
Marco Aquarius 15, Aquarius 45, WMT5
Mareno SVC G12
Masterfrost, Castlemac, Scotsman Ice Machines C600, MCM15A, ACM125, Ac175, Ac225, ACM105AS-E, E35, F40, F60, F85, IT120, IT66, IT66e, MCM15A, MV450, MV600, N70, N70S, N905, N90S, Q20, Q30, Q40, Q50, Q60, SC210, SC70, SV135, SV215, SV315
Meiko Ecostar dishwasher 530F, 530FMAF, ES545D, 1PBD, 2PBD, ECOSTAR530FM, ES545D, OPTIFRESH2, OPTIFRESH3, OPTIFRESH4
Mieko dishwasher Ecostar 530, Eco Star 545D, ES545D,
Microboil, Premier and Standard Models
Migel Icemaker Solenoid Valve Rpe R153 220/240v 50hz, 3120275, fits models , IML101, IML71,IMP25, IMP35, IMP45, IMP55, IMP70, IMP85, KL101, KL102, KL131, KL151, KL152, KL171, KL172, KL21, KL301, KL31, KL41, KL51, KL71, KP20, KP30, KP90, KVB120, KVB40, KVB80, KX131, KX151, KX171, KX301, KX31, KX41, KX51, KX71
New world washing machine 016625, HLE19002BR, HLE19003WH, SG12TXUK
Olis dishwasher double water solenoid valve OLTH12
Omniwash/IME part number CEEV1, CEEV124, UNISOLV24/1, UNISOLV240/1, UNISOLV24/1-5, UNISOLV24/1-10, UNISOLV240/1-5, UNISOLV240/1-10
Parry / Norpe Ice Machine PIM25, N50A
Porkka Ice machine KL51
Prolite boiler LD203, EZT400, EZT700
Robert Shaw 3120626
RPE, 104F, 120F, R154, R153
Scholtes washing machine KCD12TUK(M)., KCD12TUK(W)., MLI1200-240V, MLI1200W240V, MLS1200-240, MLS1200W-240
Scotsman & QuasarIce Machine N20L, M20L, Q130C, GNG60, AC106, ICEEU065, KL132, N100, N12S, N150, N20, N30, N40, N50, N55, N55BI, N65, N75, N80, Q130C, SCN25AS
Sherwood compact dishwasher COMPACT model
Silanos & Komel Dishwasher DC070A, DC1000, K8034DGT, SXD50AD
Simig ice machine models AC175, C400, CP120, CP70, F40, F60, F85, IT120, IT66, IT66E, KL151, MV450, MV600, N20, N20L, N25e, N35s, N45s, N55s, N70, N90s, Q130C, Q20, Q30, Q40, Q50, Q60, Q90, Sc210, SC70, SV215, SV315, SC120AS, EC175, SC120AS
Smeg washing machine AWF592, AWG329, AWG345, AWG345/4, AWG349/3, AWG349/4, BWD20, BWM20, G2PWD2/WH, G2PWD3/WH, IW160D, IW160V, NZ5012, NZLS12, WD16BA, WDI1211, WDI1212, WM16AAA, WMI1011, WMI1012, WTI910, WTI910/1, WTI910/4
SAWO STP Steam Generators STP60C 1/3 and STP90C 1/3
Tecma Easy Fit, Tecma Silence, Tecma Silence Plus and MasterFlush 8800
thetford toilet valve, Thetford C263, thetford C260, 23709, Thetford Electric Valve C200
Universal 351
Whirlpool washing machine AWG329, B6-4b part number 34001131, replaces 1067873, AH2037098, DC62-30314H, EA2037098, PS2037098. whirlpool brands include Whirlpool, Maytag, LG, Kitchaid,Jenn-Air, Amana, Magic Chef,Admiral, Norge, Norge, Roper, Samsung and for other brands Sears and Kenmore.
Winterhalter dishwasher GS501, GS200, GS28, GS29, GS300, GS402, GS501, GS502, GS515
Other alternative part numbers: 09074774, C00161387, 813050082, 5045173364127, SMG813050082, VAL894, QUAVAL02, HPTC00161387, 71-UN-57, CAN09074774, MDAC00161387, UN7158, 092578, C00161387, MDA092578, MDAC00161387, 71-HP-12, VAL894, 5031682144404, HPTC00161387, QUAVAL02, HVR09021742, HVR09074774, 5031681702964, 71-HV-01, CAN09074774
Universal Water Boiler Inlet Solenoid Valve, Will Fit Lincat EB3
solenid valve inlet 1502190
Eltek 370750
wd15x10003
