Description

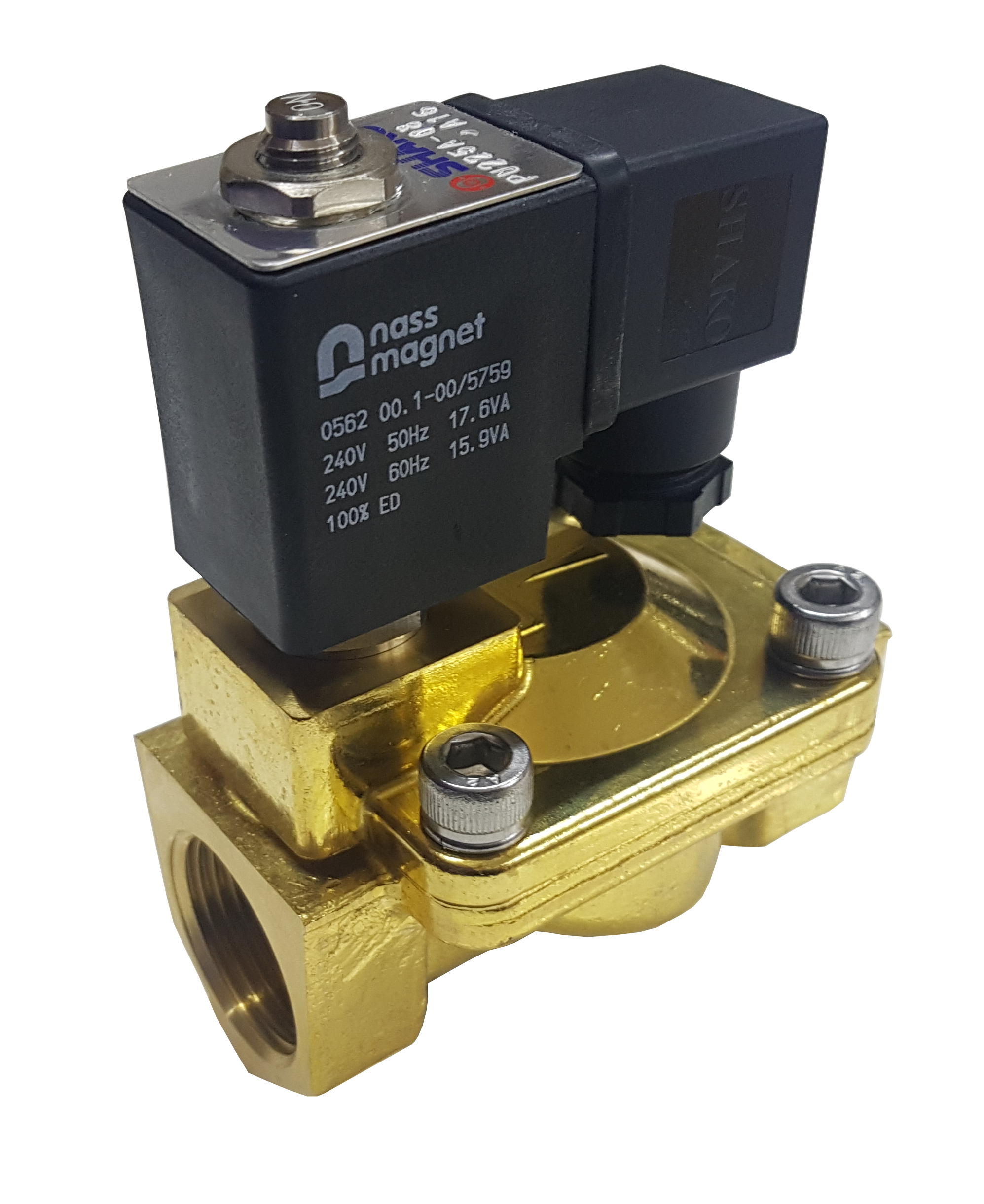

1 inch normally open Brass solenoid valve Model NOPU225A-08 (PU225AN-08)
Function: 2/2 way normally open
Operation: pressure assisted (requires 0.5 Bar min pressure differential)
Pressure: 0.5 to 10 Bar differential, Max working 15 Bar
Port: 1 BSP, option NPT thread
Orifice: 25.0mm
Kv flow factor: 165 L/min based on water with 1 Bar pressure drop
Body: Brass
Internals: Stainless steel
Sealing: NBR standard optional EPDM, Viton (FKM) or HNBR
Media: air, water, oil and other fluids under 50 CST and gases compatible with materials of construction.
Temperature: -15°C to +80°C with NBR seals, option Viton (FKM) -10°C to +180°C, EPDM -5°C to +130°C, HNBR -40°C to +150°C.
Coil: 15 Watt Nass Magnet Class H CE IP65 approved 100% duty rated DIN43650A
Protection: IP65 with connector (Included)
Coil option: ATEX EExmIIT4 Temperature Class T4 T130°C Ex mb IIC T4 and Gb Ex mb tb IIIC T130°C Db for hazardous area 21 and 22 with max media temperature +80°C.
Voltages: 12vDC, 24vDC, 48vDC, 110vDC, 220vDC or 12vAC, 24vAC, 36vAC, 48vAC, 110vAC, 220vAC, 230vAC, 240vAC or 380vAC 50/60hz.

HS code 84818030

Equivalent To

Shako, PU225AN-08, PU225AN-08N, PU225ANV-08, PU225ANV-08N, PU225ANE-08, PU225ANE-08N, NOPU22508
ACL, solenoid valve, e207fb25/8, E207FB25, E207FV25, E207FE25, e207fe25/8, e207fv25/8
Albion, EMC SLPNO valve, SLP-25E2H, SLP-25EE2H, SLP-25VE2H
Asco, solenoid valve, sce210d014, Red Hat series, 8210D014, 8210G014, 8221G027
Banico solenoid valve, 29f
Burkert solenoid valve, 023006n, 062700m, 022363w,062657d, 221937, 221938, 221939, 221940, 221941, 221942, 256228, 273475, 259205, 221937, 221938, 221939, 221940, 221941, 221942, 278917, 255523, 272540, 365094, 289922, 238767, 256393, 293414, 256228, 257713, 259205, 306769, 306800, 306826, 306788, 364593, 306573, 306632, 306661, 306605, 248896, 280961, 273547, 308571, 349783, 366381, 349784, 183129, 223653, 183132,
Ceme, solenoid valve, 8716-esm
Danfoss, solenoid valve, 042u4092, 032U7182, 032U7128, 032U7127
EPH, M29F25
ERA SIB, 225205-1000
FG Line control valve, AN03GB25T, AN03GV25T, AN03GE25T, CN03GB25T, CN03GV25T, CN03GE25T,
GSR, 4025/1001
herion, 7032730
Kelm, solenoid valve, k225-08-no
Keihin, YSP2-25
m and m solenoid valve, rb222dby, f280-1, f280-1-230, f280-1-110, f280-1-24, RB222DEY, RB222DVY
​Nadi, solenoid valve, L61T25L0P, L61T25L1P, L61T25L6P, L66T25L0P, L66T25L1P, L66T25L6P, L61T25L, L61T25M, L63T25L, L63T25M, L66T25L, L66T25M, L66T25L0, L66T25L1, L66T25L6
ODE, solenoid valve, 21w4zv250, AVW4Z25, 21W4ZB250, 21W4ZE250, 21W4Z1E250-T5
Parker, skinner, solenoid valve, 7322gbn64n00, 7322gbn64nc0, 73222bn63n00, 73228bn64n00, 7322BDN00, 443808W, 7322BDV00, 444502W, 7322BDH00, 444603W, 7322BDN90, 444612W, 7322BDH90, 444616W, 16F24O2164ACF, 16F24O2164A3F, 7322KBG62VW0, 7322GBG64V00, 7322GBG64N00, 7322BBG64N00
Sirai, solenoid valve, l290v1z510a, l280b6z723a, l280v6z723a, l282b01-1, L282V01
Thermador, 087004, 087014, 087034, 087044, 087054
RS SOL valve, 1440815, 1440816
J series, 1342BA08INATA, 1342B08INATB, 1342BV08INATA, 1342BV08INATB
