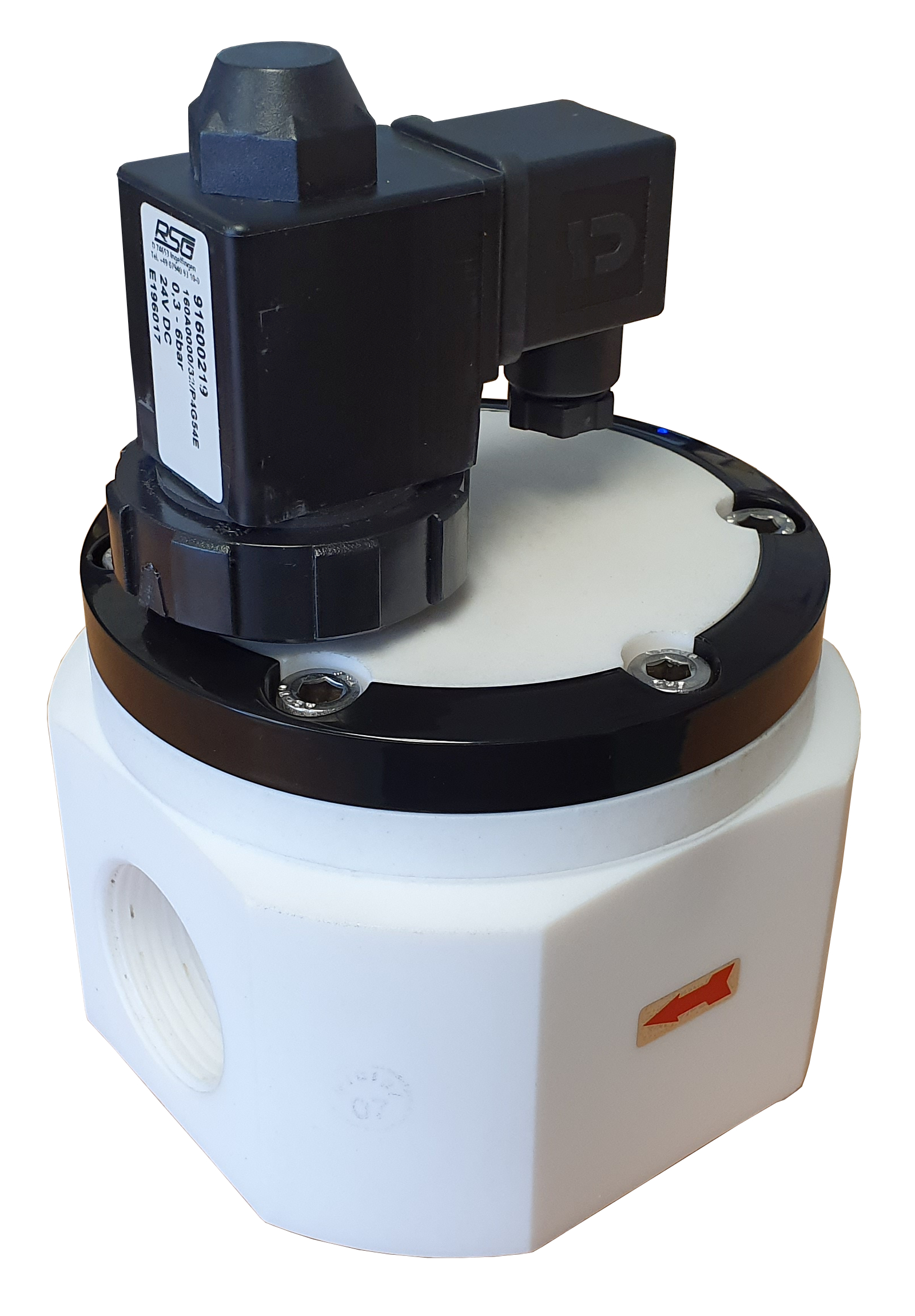

11/4 40mm PTFE,PVC,PP Solenoid Valve 0.3-6 Bar 2/2 N/Closed 160A32

Brand: RSG

Model: 160A32

Dimensions
Width 74.00
Height 129.00
Length 74.00

£1,192.67 £1,192.67
Price Ex Vat: £993.89

0 in stock

Description

PTFE, PVC or PP acid alkali solenoid valve 160A32
Function: 2/2 way normally closed with PTFE isolating bellows
Operation: Pressure assisted (requires min 0.3 Bar pressure difference)
Port: 11/4 BSP thread or 40mm socket
Body: P1 PVC body with 40mm cementing socket
Body: P2 Polypropylene PP body with 40mm welding socket
Body: P4 PTFE body with G11/4" BSP Thread
Pressure: 0.3 to 6 Bar
Orifice: 32.0mm
Kv flow factor: 387.44 L/min based on water with 1 Bar pressure difference.
Seals: EPDM or FKM
Media: air, water, acids, alkali's and fluids under 50 CST and gases compatible with materials of construction.
Coil: Nass Magnet system 13/30 Class H 100% duty rated CE IP65
Coil power: 15 Watt 17-22VA
Protection: IP65 with the electrical DIN connector supplied
Coil option: ATEX EExmIIT4 Temperature Class T4 T130°C Ex mb IIC T4 and Gb Ex mb tb IIIC T130°C Db for hazardous area 21 and 22
Voltages: 12vDC, 24vDC, 48vDC, 110vDC and 220vDC or 12vAC, 24vAC, 48vAC, 110vAC, 220vAC, 230vAC and 240vAC 50/60 Hz
Other option: Manual over ride.
