Brand: CS Fluid Power
Price Ex Vat: £138.94

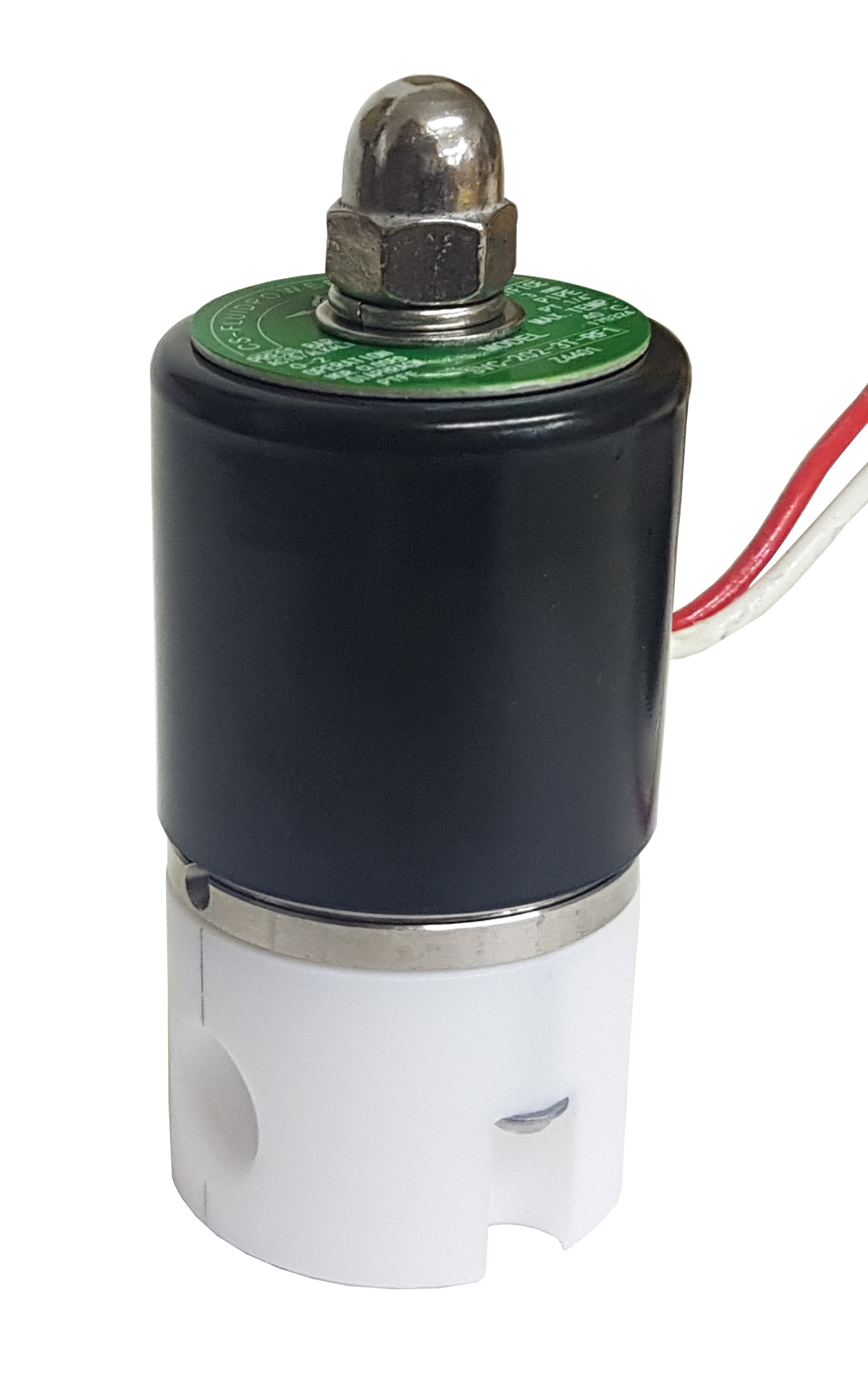

1/4 inch PTFE solenoid valve for acids and alkali CS Fluid Power SVC202.
Function: 2/2 way normally closed with PTFE isolating diaphragm
Operation: direct acting
Port: 1/4 BSP, option NPT or Rc thread.
Media: most acids, alkali's, Hydrochloric Acid (HCL), Sulphuric Acid (H2SO4) and corrosive fluids under 50 CST and gases compatible with PTFE. (Not vacuum).
Orifice: 3.0mm or 6.0mm
Pressure: 0 to 2 Bar or 0 to 0.5 Bar according to orifice and coil
Kv flow factor: 3.71 or 16.01 L/min according to orifice, based on water with 1 Bar pressure drop.
Coil: RF1 12 watt UL CSA CE and IP54 Class F coil 100% duty rated.
Protection: IP54 30cm flying lead wires
Coil option: WPG1 12 Watt IP67 UL CSA approved DIN43650A
Protection: IP65 with LED connector (included)
Coil option: ATEX EExmIIT4 Temperature Class T4 T130°C Ex mb IIC T4 and Gb Ex mb tb IIIC T130°C Db for hazardous area 21 and 22 with 50% pressure reduction.
Voltages: 12vDC, 24vDC, 48vDC, 24vAC, 48vAC, 110vAC or 230vAC 50/60 Hz.
Shako PE220-03CS 3/8" BSP, PE220-04CS 1/2" BSP rated 0 to 1 bar tested to 3 bar
Shako PE220-03NC 3/8" NPT, PE220-04NC 1/2" NPT rated 0 to 1 bar tested to 3 bar
Shako PE220-03HCS 3/8" BSP, PE220-04HCS 1/2" BSP rated 0 to 3 bar tested to 4.5 bar
Shako PE220-03HNC 3/8" NPT, PE220-04HNC 1/2" NPT rated 0 to 3 bar tested to 4.5 bar
