Brand: Kuhnway (Queen)
Price Ex Vat: £254.79

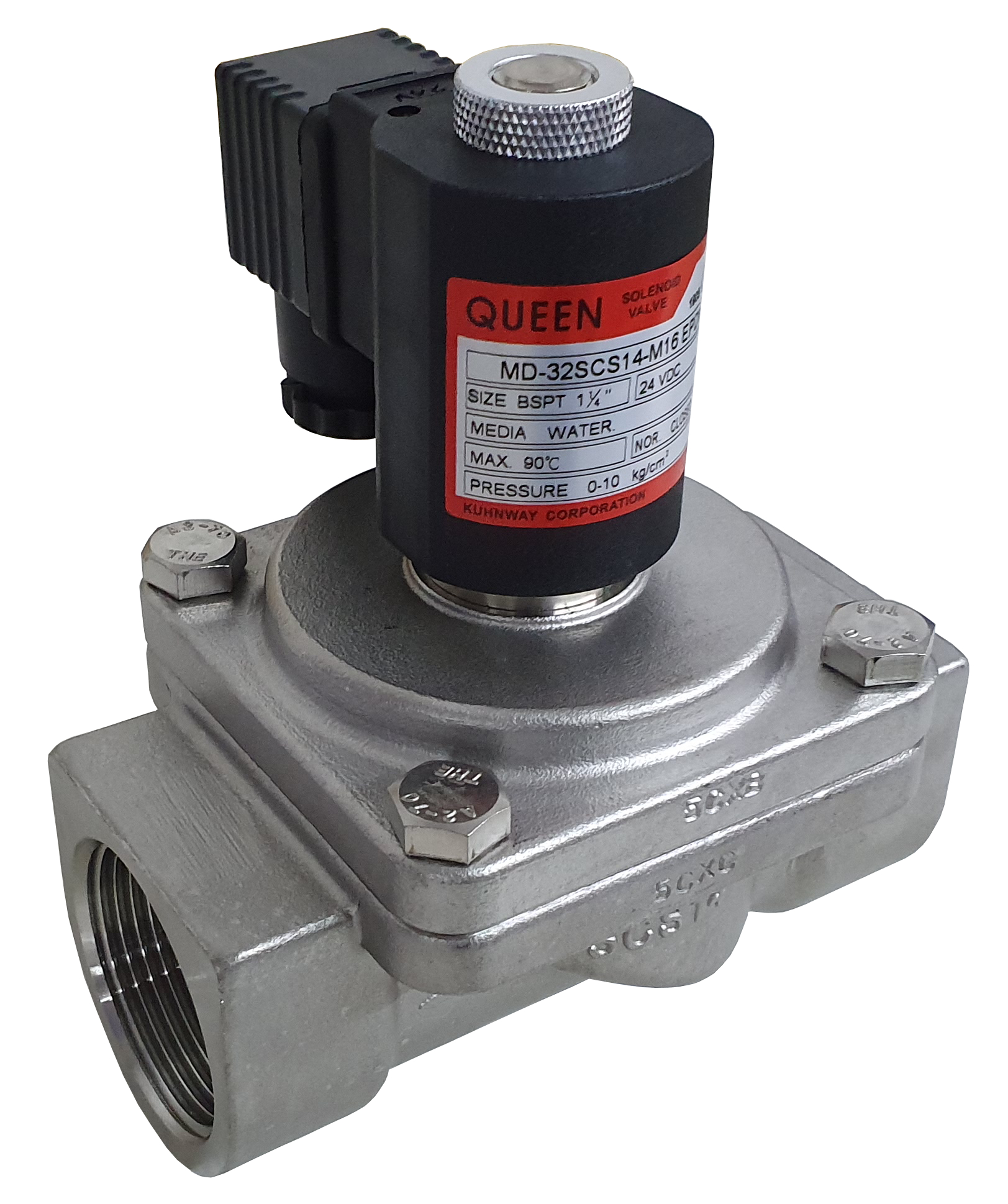

11/4 inch Stainless steel solenoid valve Queen MD32CSC14
Function: 2/2 way Normally Closed
Operation: Assisted Lift (Zero rated)
Port: 11/4 BSPT standard, option NPT thread
Pressure: 0 to 10 Bar (Air/Water), 0 to 7 Bar (Oil)
Body: 316 stainless steel
Internals: stainless steel
Shading ring: Copper, option without shading ring (DC only or rectified AC/DC), for demin water, RO water and adblue.
Sealing: EPDM standard; option NBR or FKM.
Media: vacuum (10 Torr with NBR sealing), compressed air, water, light oil, RO or pure water, diesel fuels and most liquids under 50CST and gas compatible with the materials of construction.
Kv flow factor: 185.9 L/Min water with 1 bar pressure difference.
Coil: M16 26 Watt IP65 CE approved Class F DIN43650A, 100% duty rated.
Coil option: M17 high power Class N DIN43650A IP65 coil, Pressure 0 to 16 Bar, Ambient Temp +50°C
Protection: IP65 with connector (Included)
Voltages: 12vDC, 24vDC, 48vDC or 125vDC or 24vAC, 110vAC and 230vAC.
