Price Ex Vat: £172.81

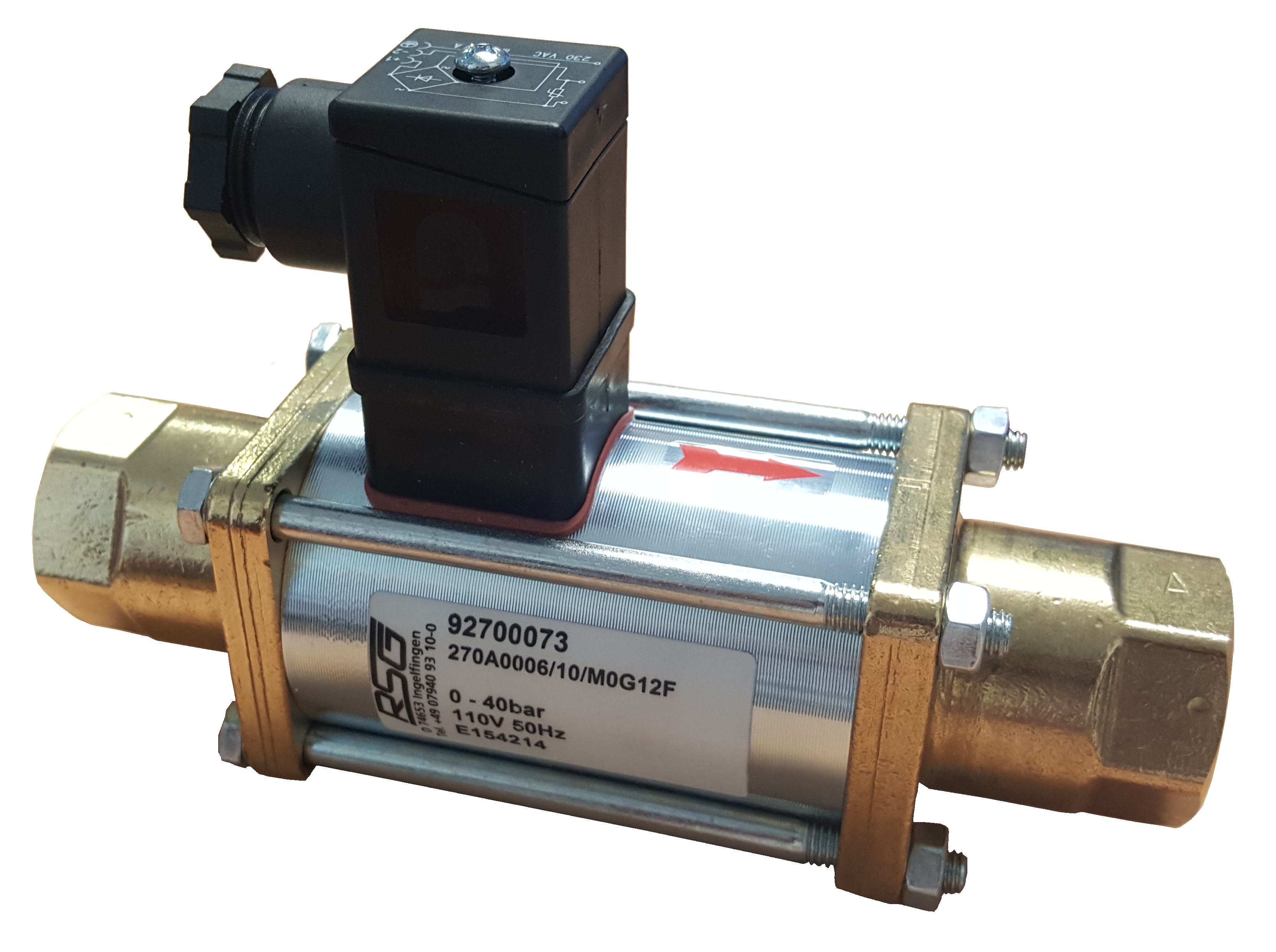

Coax solenoid valve 2 way 0-40 Bar DN10 RSG 27010
Function: 2/2 way normally closed, option normally open
Operation: direct acting
Port sizes: 1/4, 3/8, 1/2 or 3/4 BSP thread, option NPT thread or flange
Pressure: 0 to 40 Bar (0 to 16 Bar reverse flow)
Kv flow factor: 51 L/Min
Body Brass, option Brass nickel plated, 304 or 316L stainless steel
Internals: stainless steel 316L
Media: Fluids under 500 CST and gases compatible with materials of construction.
Media temperature: -10°C to +100°C
Fluid Seals: FKM and PTFE, option NBR or EPDM.
Water Seals: UHMW Polyethylene. Excellent wear and abrasion resistance. Very good lubricity in water based media. The special sharp-edged shape of the dynamic seal has a stripping effect on the piston/plunger that removes limescale + debris. Max +80°C
Gaseous Seals: Fluoroloy® A21. Excellent wear resistant material, low friction, broad chemical compatibility and provides perfect tightness performance with gaseous media. Max +80°C.
Oxygen Seals: BAM approved FKM + PTFE seals, oil/grease free cleaning of all the valve parts, special grease for 20 or 40 Bar oxygen +60°C Maximum and correct packing and marking for oxygen application. Finally, the valve will be checked for tightness with nitrogen and packed for oxygen service.
Vacuum Seals: PTFE with leakage <10¯⁶ mbar L/S.
Increased leak tightness 10-5 mbar*l/sec: valve cleaned oil and grease free, special treatment of valve seat, special seal components and then a sealing tightness test with Helium.
Voltages 12vDC, 24vDC, 24vAC, 110vAC or 230vAC with other custom voltages available upon request.
Coil: DIN43650A 100% duty rated IP65 with connector (Included)
Approvals: TÜV, DGVM
Options: 270A10 normally closed, 270B10 normally open, without oil or grease, manual override, inductive open and/or closed position switches with LED + 2mtr cable, various DIN connectors or aluminium terminal box, mounting brackets and modular sub base mounted systems.
The 24vDC valve can be fitted with DIN43650A PWM connector (Pulse Width Modulating) a power reduction technology that reduces the holding power by up to 80% for a Greener environmentally friendly low power; low heat emission and improved thermal stability.
Other PWM voltages available upon request.
HS Code: 84818079
Muller coax valve MK10, RMK10, xx coax
ASCO valve SCG287A001,SCG287A009 stainless, SCG287A005 n/open, SCG287A013 n/open stainless
CX Tec co-ax valve CXD10
Breitner, E191690, 119948, 270BC627/10/V4G12F
GSR 2918, 2/918-59-1002-R270, 2/918-69-1002-R270, 2/918-59-0602-R270, 2/918-69-0602-R270
Hydac CX032/2DC210040, CX032/2DC410040, CX032/2DC510040,CX032/2DO210040, CX032/2DO410040, CX032/2DO510040, CX03-2/2-D/C-2/10/040/014/24V, 3767228, CX03-2/2-D/C-2/10/040/014/24V-HW, 3467197, CX03-2/2-D/C-2/10/040/014/24V-M12, 4270611, CX03-2/2-D/C-2/10/040/014/24V-Z80
3917114, CX03-2/2-D/O-2/10/040/014/24V, 3767229, CX03-2/2-D/O-2/10/040/014/24V-HW, CX03M-2/2-D/C-2/10/040/014/24V-1X-M5-M12, 3438195, CX03M-2/2-D/C-2/10/040/014/24V-1X-M6, 4524464, CX03P-2/2-D/C-2/10/040/014/24V, 4524512, CX03PM-2/2-D/C-2/10/040/014/24V-1X, 4460210, CX03-2/2-D/C-4/10/040/012/24V-Z80
RSG 270A10 normally closed or 270B10 normally open, 92700001, 92700002, 92700003, 92700005, 92700006, 92700007
oxygen service, 20 or 40 Bar, +60°C Maximum with BAM approved FKM + PTFE seals, oil/grease free cleaning of all the valve parts, special grease for oxygen and correct packing and marking for oxygen application
