Price Ex Vat: £956.35

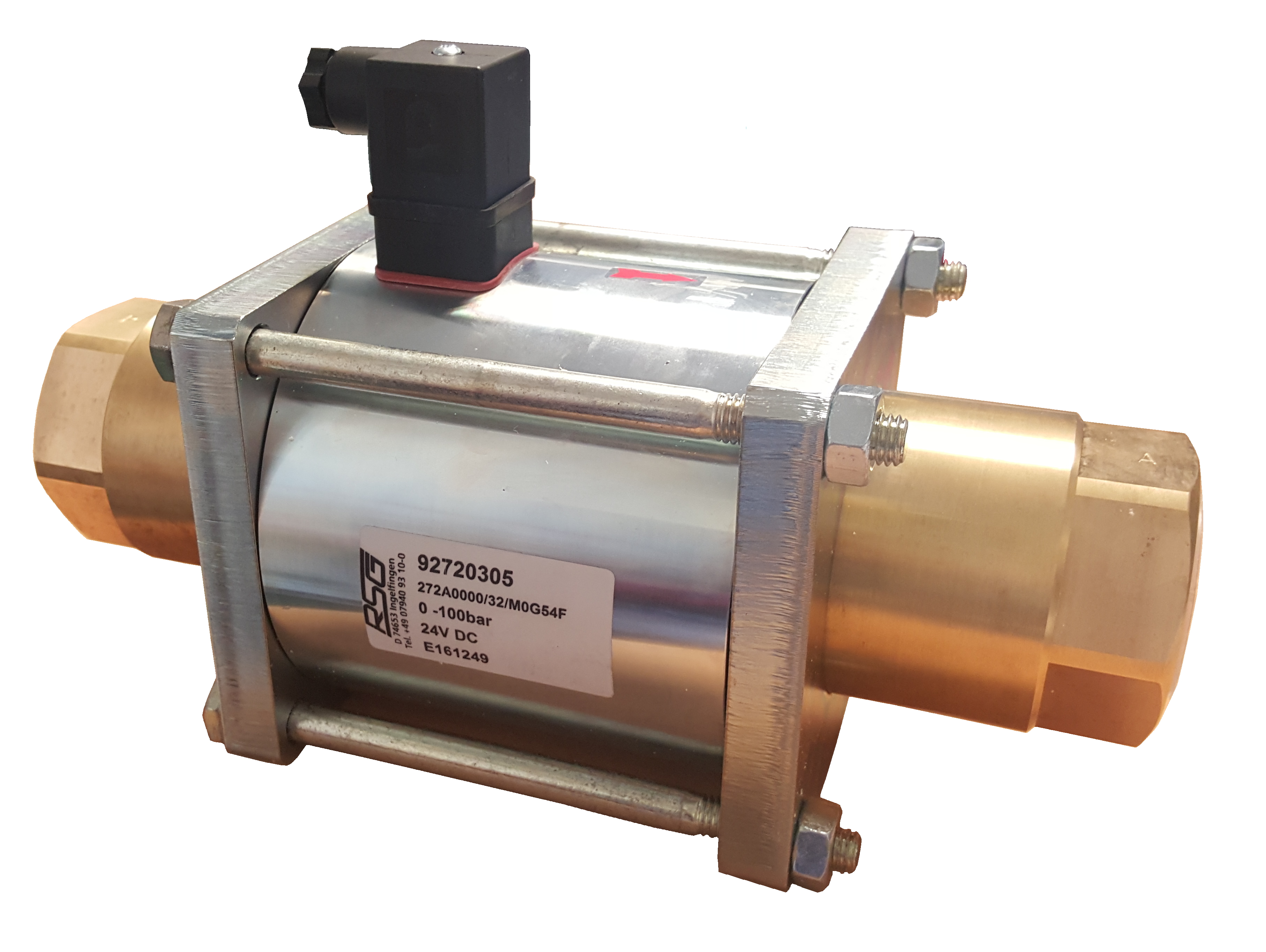

Coax solenoid valve 2 way 0-100 Bar DN32 RSG 27232
Function: 2/2 way normally closed, option normally open
Operation: direct acting
Pressure: 0 to 100 Bar (0 to 16 Bar reverse flow)
Kv flow factor: 333 L/Min
Port sizes: 1, 11/4 or 11/2 BSP thread, option NPT or flange
Body: Brass, option stainless steel 303 or 316L
Internals: stainless steel 316L
Media: Fluids under 500 CST and gases compatible with materials of construction.
Media temperature: -10°C to +100°C
Fluid Seals: FKM and PTFE, option NBR or EPDM.
Water Seals: UHMW Polyethylene. Excellent wear and abrasion resistance. Very good lubricity in water based media. The special sharp-edged shape of the dynamic seal has a stripping effect on the piston/plunger that removes limescale + debris. Max +80°C
Gaseous Seals: Fluoroloy®. Excellent wear resistant material, low friction, broad chemical compatibility and provides perfect tightness performance with gaseous media. Max +80°C.
Voltages: 12vDC, 24vDC, 24vAC, 110vAC or 230vAC with other custom voltages available upon request.
Coil: DIN43650A 100% duty rated IP65 with connector (Included)
Approvals: TÜV, DGVM
Options: 272A32 normally closed, 272B32 normally open, manual over ride, inductive open and/or closed position switches with LED + 2mtr cable, various DIN43650A connectors or aluminium terminal box, mounting brackets and modular sub base mounted systems.
The 24vDC valve can be fitted with DIN43650A PWM connector (Pulse Width Modulating) a power reduction technology that reduces the holding power by up to 80% for a Greener environmentally friendly low power; low heat emission for improved thermal stability.
Other PWM voltages available upon request.
GSR, 2/918-26-1002-R272, 2/918-26-0602-R272
Hydac, CX052/2DC232100, CX052/2DC432100, CX052/2DC532100, CX052/2DO232100, CX052/2DO432100, CX052/2DO532100
Muller coax, MK32, RMK32
RSG, 272A32 normally closed, 272B32 normally open
