Brand: RSG
Model: 28215
| Dimensions | |
|---|---|
| Width | 70.00 |
| Height | 70.00 |
| Length | 184.00 |
£401.45
£941.48
Price Ex Vat: £334.54

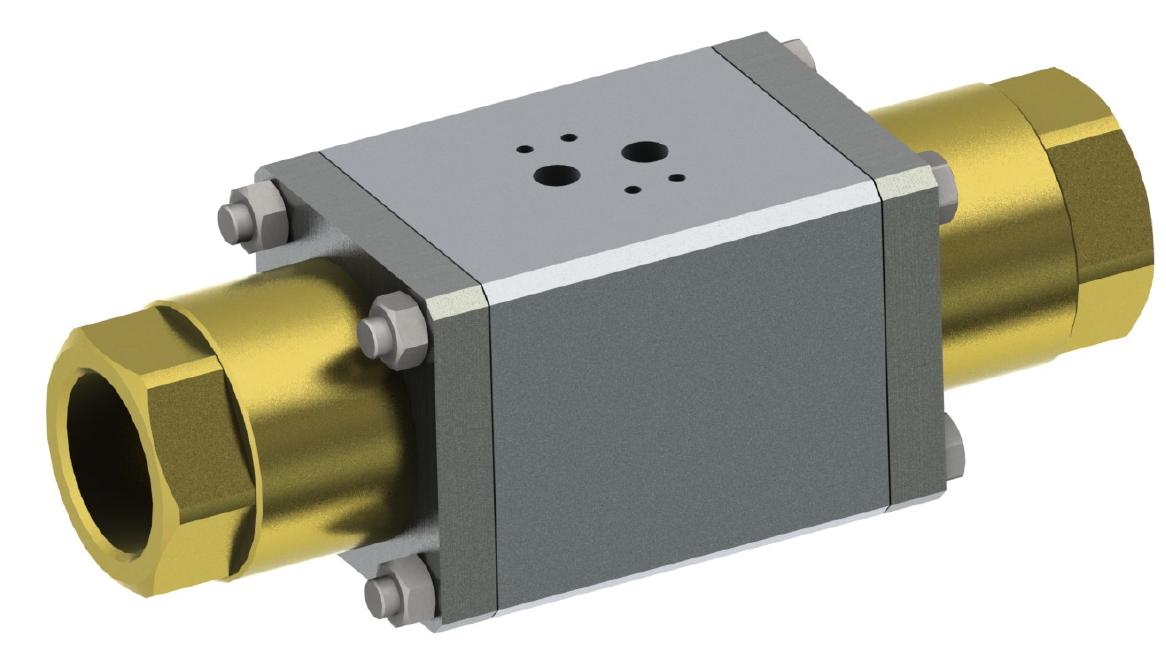

Coax air pilot valve 2 way 0-160 Bar DN15 RSG 28215
Function: 2/2 way normally closed, option normally open
Operation: air pilot control 3 to 8 Bar 1/4 BSP and Namur interface
Pressure: 0 to 160 Bar (0 to 16 Bar reverse flow)
Orifice: 15.0mm
Kv flow factor: 91 L/min
Port sizes: 3/8, 1/2, 3/4 or 1 BSP thread, option NPT or flange
Body: Brass, option stainless steel 303 or 316L
Internals: stainless steel 316L
Media Temperature: -10°C to +100°C
Seals: FKM and PTFE, option for PTFE with EPDM.
Media: Fluids under 500 CST compatible with materials of construction.
For air, gas or water media, please contact us.
Options: normally closed 282A15, normally open 282B15, mounting brackets, inductive open and/or closed position switches with LED + 2mtr cable.
Data Sheet
