Brand: CS Fluid Power
Model: SASHH
| Dimensions | |
|---|---|
| Width | 48.00 |
| Height | 123.00 |
| Length | 67.00 |
£1,130.47
£1,541.56
Price Ex Vat: £942.06

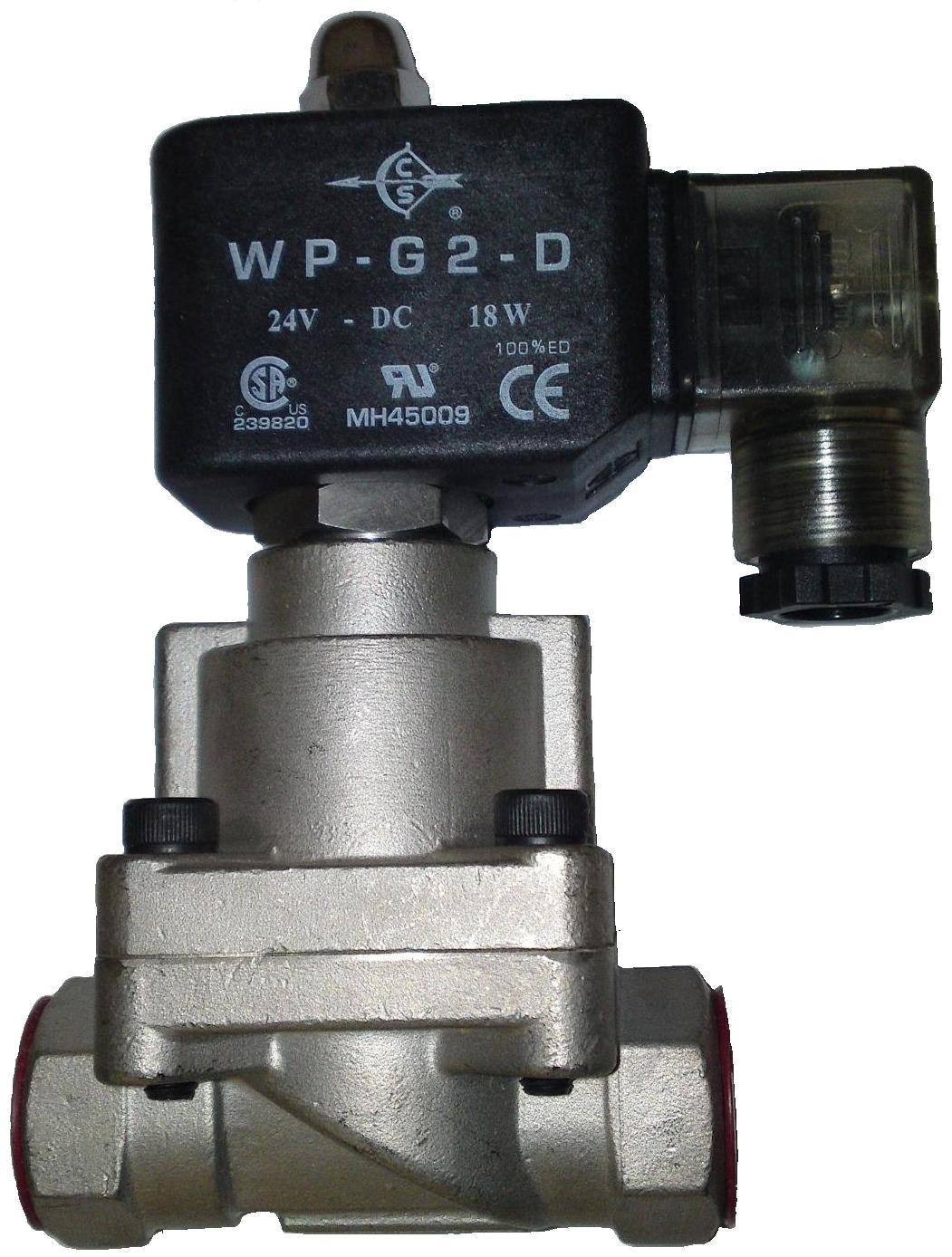

High pressure stainless steel solenoid valve CS Fluid Power SASHH
Function: 2/2 way normally closed (Failsafe closed power to open)
Operation: Pressure assisted (Min 0.5 Bar differential)
Pressure range: 0.5 to 80 Bar
Port: 3/8, 1/2 or 3/4 BSP or NPT Thread.
Body: 316 stainless steel
Seals: PTFE
Orifice: 15.0mm or 20.0mm according to port size
Kv flow factor: 64.4 or 133 L/min according to orifice, based on water with 1 Bar pressure drop.
Media Temperature: +180°C Max
Media type: air, water, light oil and other fluids under 50CST and gases that are compatible with materials of construction.
Coil: WPG2 UL and CSA approved IP67 18 Watt (15.3VA to 18.7VA) 100% duty rated DIN43650A
Protection: IP65 with LED connector (Included)
Coil Option: ATEX EExmIIT4 Temperature Class T4 T130°C Ex mb IIC T4 and Gb Ex mb tb IIIC T130°C Db for hazardous area 21 and 22). Sizes 3/8 to 3/4 only
Voltages: 12vDC, 24vDC, 48vDC or 12vAC, 24vAC, 48vAC, 110vAC, 220vAC, 230vAC, 240vAC or 380vAC 50/60Hz.
Data Sheet
