Description

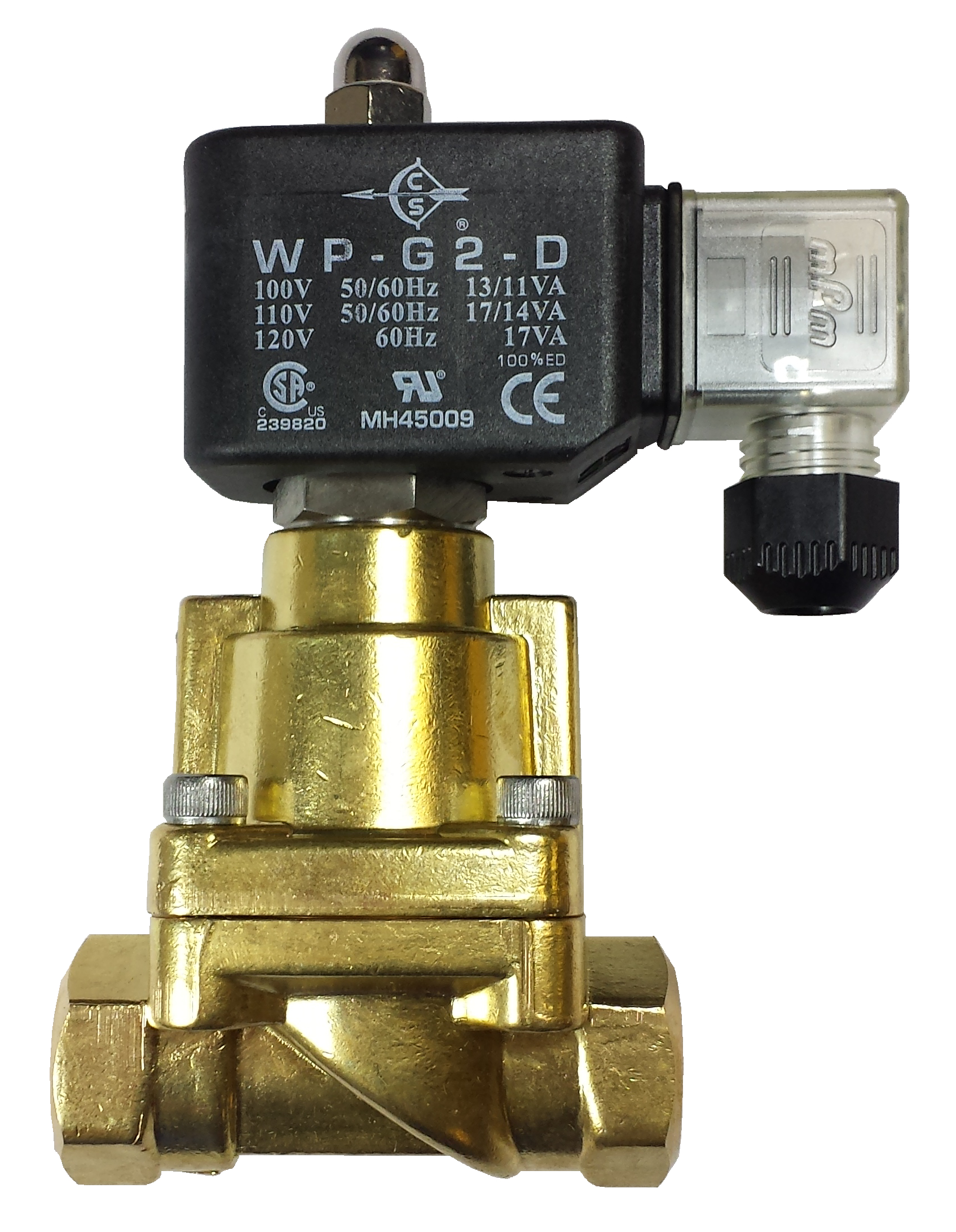

High pressure Brass solenoid valve CS Fluid Power SAH
Function: 2/2 way normally closed (Failsafe closed power to open)
Operation: pressure assisted (requires min 0.5 Bar pressure difference)
Port: 3/8, 1/2, 3/4, 1, 11/4, 11/2 and 2 BSP, option NPT Thread
Pressure: 0.5 to 40 Bar / 580 PSI
Body: Brass
Seals: PTFE
Piston: Stainless steel
Media: air, water, light oils and fluids under 50CST and gases compatible with materials of construction.
Orifice: 15mm, 20mm, 25mm, 35mm or 50mm (according to port size)
KV flow factor: 64 to 686.4 L/Min based on water with 1 Bar pressure drop (according to orifice)
Coil: WPG2 UL and CSA approved IP67 18 Watt (15.3VA to 18.7VA) 100% duty rated DIN43650A
Protection: IP65 with LED electrical connector (included)
Coil option: ATEX EExmIIT4 coil for hazardous area zones 21 and 22 (Max 20 Bar custom option 25 Bar).
Voltages: 12vDC, 24vDC, 48vDC or 12vAC, 24vAC, 48vAC, 110vAC, 220vAC, 240vAC or 380vAC 50/60Hz.

Equivalent To

Alcon, solenoid valve ACPH7, ACPH8, ACPH10
Braglia, 200.1915 1
CS Fluid Power, SA14H, SA15H, SA20H, SA25H, SA35H, SA40H, SA50H
Norgren, Herion, Bushjost, solenoid valve 8536500.9151.02400, 8536700.9151.23050, 8536700.9151.02400, 8536600.9151.23050, 8536600.9151.02400, 8536500.9151.23050, 8536400.9151.23050, 8536100.9151.23050, 8536000.9151.23050, 8536000.9151.02400, 8530400.9151.23050, 8530400.9151.02400, 8530300.9151.23050, 8530300.9151.02400, 8530200.9151.23050, 8530200.9151.02400, 85301XX.9151.00000, 85302XX.9151.00000, 85303XX.9151.00000, 85304XX.9151.00000, 85305XX.9151.00000, 85306XX.9151.00000, 85307XX.9151.00000
Parker, 08F28C1D24A3F, 7321HBN4UN00, 12F28C1D48A3F, 7321HBG4UV00, 7321HBG4UVT0
