1/8 1/4 3/8 1/2 Stainless Solenoid Valve 0-10 Bar 2/2 N/Open 3-6mm

Brand: CS Fluid Power

Model: NOS612

Width 19.00
Height 108.00
Length 41.00

£116.41 £158.75
Price Ex Vat: £97.01

16 in stock

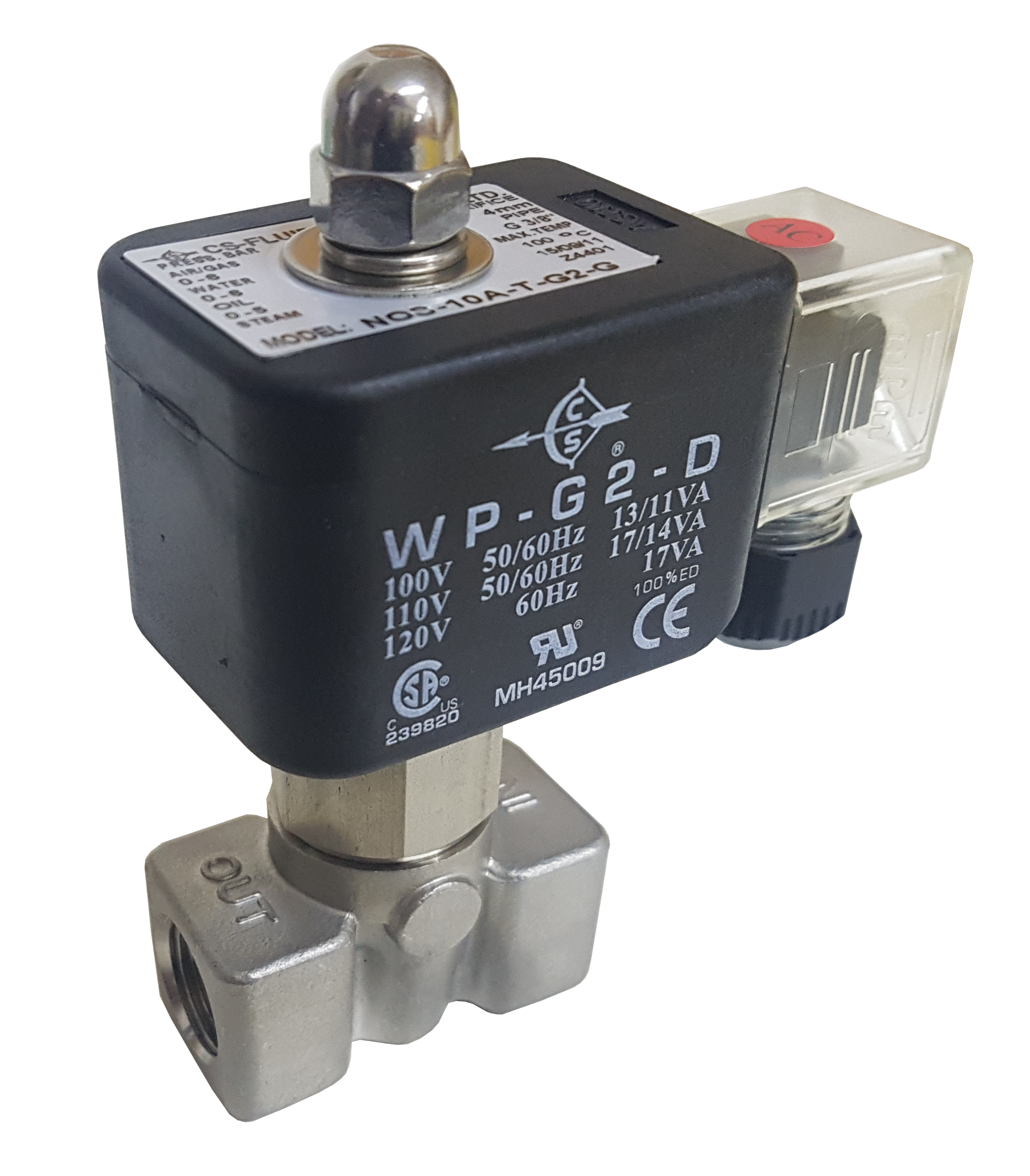

1/8 1/4 3/8 1/2 inch stainless solenoid valve CS Fluid Power NOS612
Function: 2/2 way normally open
Operation: Direct acting
Port sizes: 1/8, 1/4, 3/8 or 1/2 BSP, option NPT thread
Pressure: 0 to 10 Bar according to orifice and coil power level.
Vacuum: 10-4 torr
Body: 316 stainless steel
Internals: stainless steel
Shading ring: copper, option silver
Seals: FKM standard, option EPDM, Silicone, VST, PTFE, Hypalon, Neoprene, HNBR and ECO.
Media: air, water, light oils and most other slightly aggressive fluids under 50CST and gases compatible with materials of construction.
Orifice: 3mm, 4mm, 5mm or 6mm (option according to port size)
Kv flow factor: 3.7 to 11.3 L/Min based on water with 1 Bar pressure drop.
Coil: WPG2 18 Watt UL CSA CE IP67 Class H certified 100% duty rated DIN43650A
Protection: IP65 with LED connector (Included)
Voltage: 12vDC, 24vDC, 48vDC, 110vDC or 24vAC, 48vAC, 110vAC or 230vAC 50/60Hz.
