11/2 Steam Solenoid Valve 0.5-20 Bar 2/2 Normally Open

Brand: CS Fluid Power

Model: NOSA40

Width 90.00
Height 192.00
Length 120.00

£453.40 £559.25
Price Ex Vat: £377.83

25 in stock

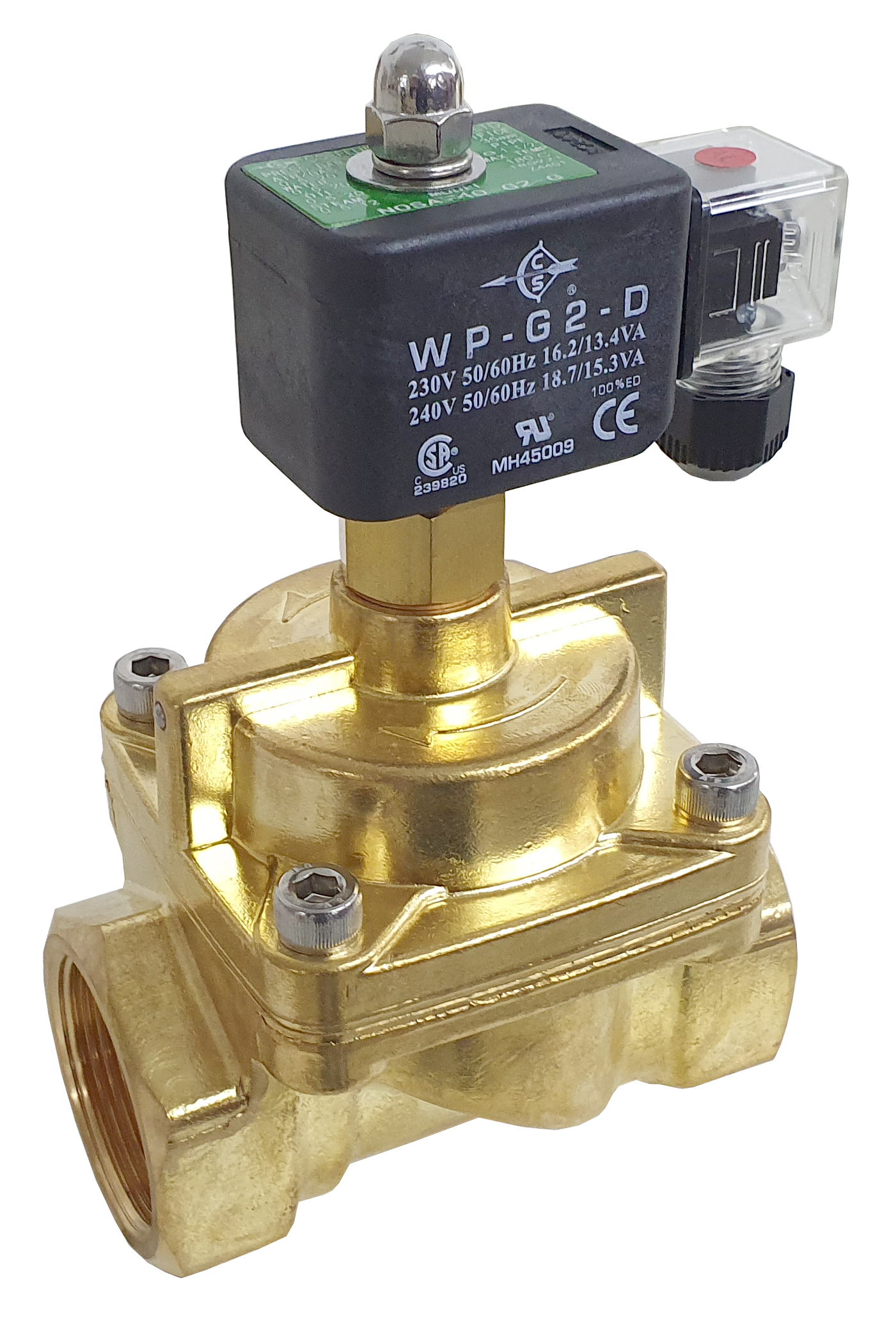

11/2 inch Steam solenoid valve CS Fluid Power Model NOSA40.
Function: 2/2 way Normally Open
Operation: Pressure assisted (Requires min 0.5 bar pressure difference)
Port: 11/2 BSPP, option NPT or Rc thread.
Pressure: 0.5 to 12 Bar Steam, 0.5 to 20 Bar air / water
Body: Brass
Internals: Stainless steel.
Seals: PTFE Graphite impregnated.
Media Temperature: +180ºC Max
Media: air, water, steam, light oil and most other fluids under 50 CST and gases compatible with materials of construction.
Orifice: 35.0mm
Kv flow factor: 371.8 L/min based on water with 1 Bar pressure difference.
Coil: WPG2 18 Watt UL; CSA; CE and IP67 approved DIN43650A Class H 100% duty rated.
Protection: IP65 with LED connector (Included)
Voltages: 12vDC, 24vDC, 48vDC or 24vAC, 48vAC, 110vAC, 230vAC or 380vAC.
