Brand: RPE srl
Price Ex Vat: £11.36

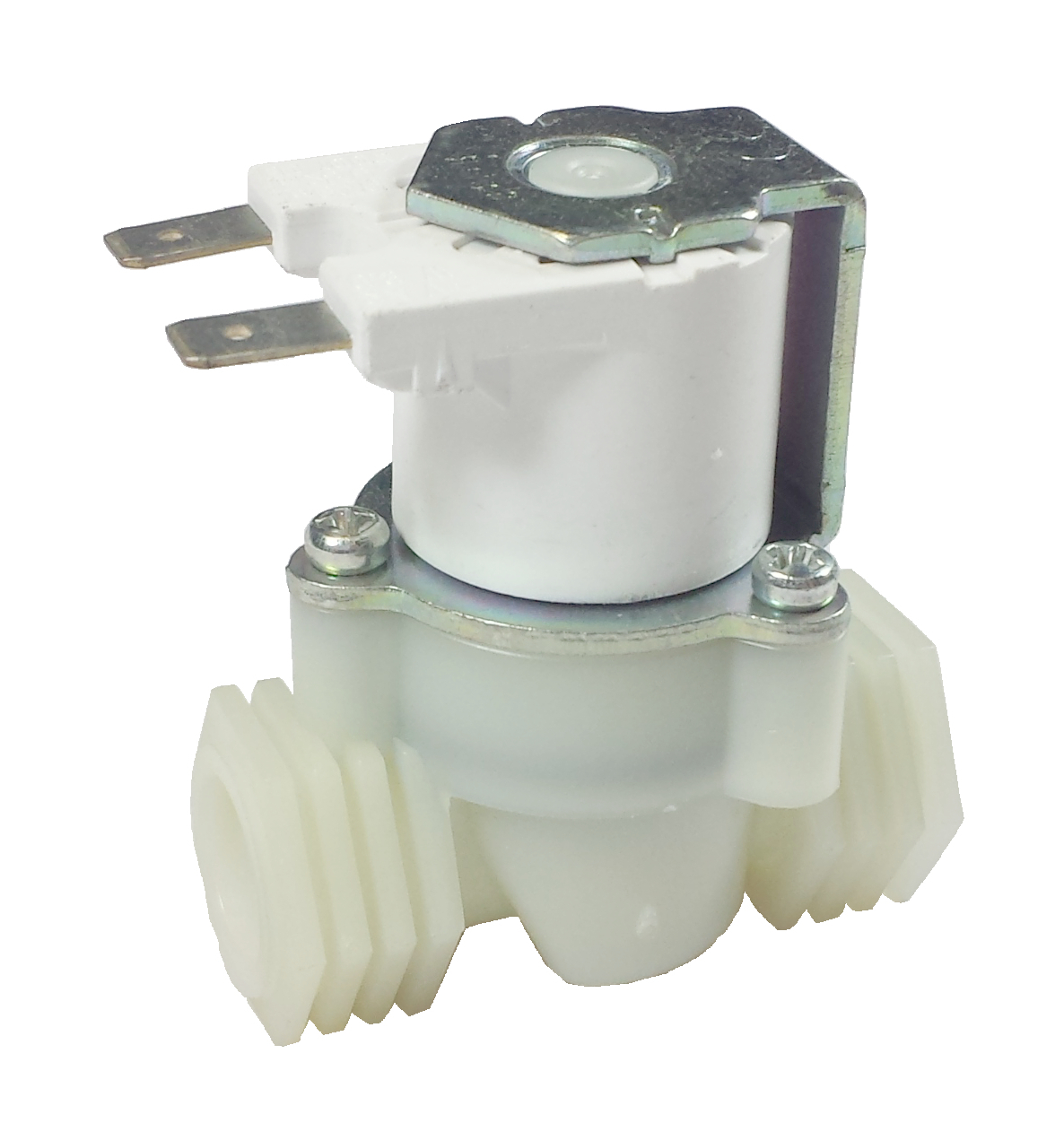

1/4 inch plastic water solenoid valve RPE R Mini 3105BC
Function: 2/2 way normally closed
Operation: Pressure assisted (Min 0.2 Bar pressure differential)
Port: 1/4 BSP female thread
Pressure: 0.2 to 10 Bar
Kv flow factor: 25.81 L/min based on water with 1 Bar pressure drop.
Body: Nylon white good grade 30% Glass Filled
Seals: NBR, option EPDM
Media Temperature: +60°C (100% duty rating), +90°C (60% duty rating)
Ambient temperature: +60°C Max
Coil: R 6.2 Watts IP00 with faston tag Class F 100% duty rated
Coil option: Low power 12vDC 3.2 Watt or 24vDC 3.6 Watt IP00 with faston tag Glass F
Electrical connection: faston tags 6.3x0.8mm, (option flying lead wires)
Voltage: 12vDC, 24vDC, 12vAC, 24vAC, 110vAC or 230vAC
Approvals: WRAS, KTW and DM174 for drinking water production, transfer and storage, ACS health compliance certificate, ENEC European Norms Electrical Certification, CSV (European Union Aviation Safety Agency), MOCA FCM (Food Contact Materials), NSF food certification for public health protection and option for UL Underwriter Laboratories certified.
The RPE R Mini 310 water solenoid valve is ideal for most water inlet systems, drinking water applications, electrical taps and washing machine water systems.
RPE 3105NC, food grade
060099, One way solenoid valve 230V thread 1/4" F. for cod. 20030023 - drain line
