Description

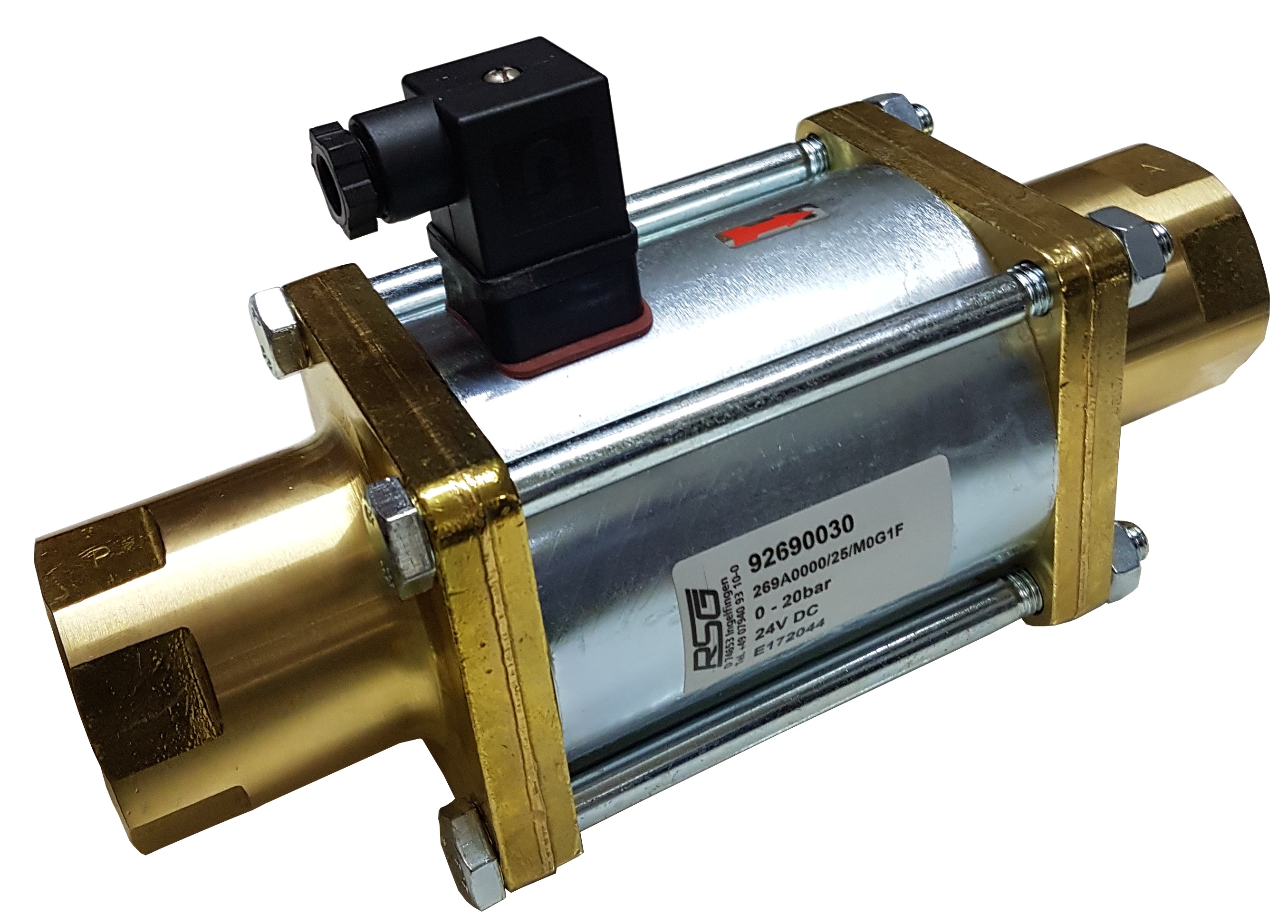

Coax solenoid valve 2 way 0-20 Bar DN25 RSG 26925
Function: 2/2 way normally closed, option normally open
Operation: direct acting
Pressure: 0 to 20 Bar (0-16 Bar reverse flow)
Orifice: 25.0mm
Kv flow factor: 205 L/min
Port sizes: 3/4, 1, 11/4 or 11/2 BSP thread
Body: Brass
Internals: stainless steel 316L
Media Temperature: -10°C to +100°C
Seals: PTFE + FKM.
Media: Fluids under 500 CST compatible with materials of construction.
Voltages: 12vDC, 24vDC, 24vAC, 110vAC or 230vAC with other custom voltages available upon request.
Coil: DIN43650A 100% duty rated IP65 with connector (Included)
Approvals: TÜV, DGVM

Options: 269A10 normally closed, 269B10 normally open, oil and grease free, vacuum version leakage <10¯⁶ mbar L/S, various DIN connectors or aluminium terminal box and mounting brackets.

The 24vDC valve can be fitted with DIN43650A PWM connector (Pulse Width Modulating) a power reduction technology that reduces the holding power by up to 80% for a Greener environmentally friendly low power; low heat emission for improved thermal stability.
Other PWM voltages available upon request.

For other fluids, gases, pressures and many other options please consider series 270, 272 and 272.

Equivalent To

Muller Coax, MK25, RMK25
CX Tec, co-ax valve, CXD25
ACL, CE100FGV25/821
Hydac, CX022/2DC220020, CX022/2DC420020, CX022/2DC520020,CX022/2DO220020, CX022/2DO420020, CX022/2DO520020, CX02-2/2-D/C-2/25/020/100/24V, 3633321, CX02-2/2-D/C-2/25/020/100/24V-HW, 3467189, CX02-2/2-D/C-2/25/020/100/24V-M12, 3596195, CX02-2/2-D/C-2/25/020/10024V-M12-HW, 3721692, CX02-2/2-D/C-2/25/020/100/24VIP68HWZ80, 4616361, CX02-2/2-D/C-2/25/020/100/24V-LED-HT, 3590147, CX02-2/2-D/O-2/25/020/100/24V, 3688124, CX02-2/2-D/O-2/25/020/100/24V-Z80, 4192432, CX02-2/2-D/O-2/25/020/100/230V
RSG, 269A25 normally closed or 269B25 normally open, 92690025, 92690026, 92690027, 92690029, 92690030, 92690031
