Description

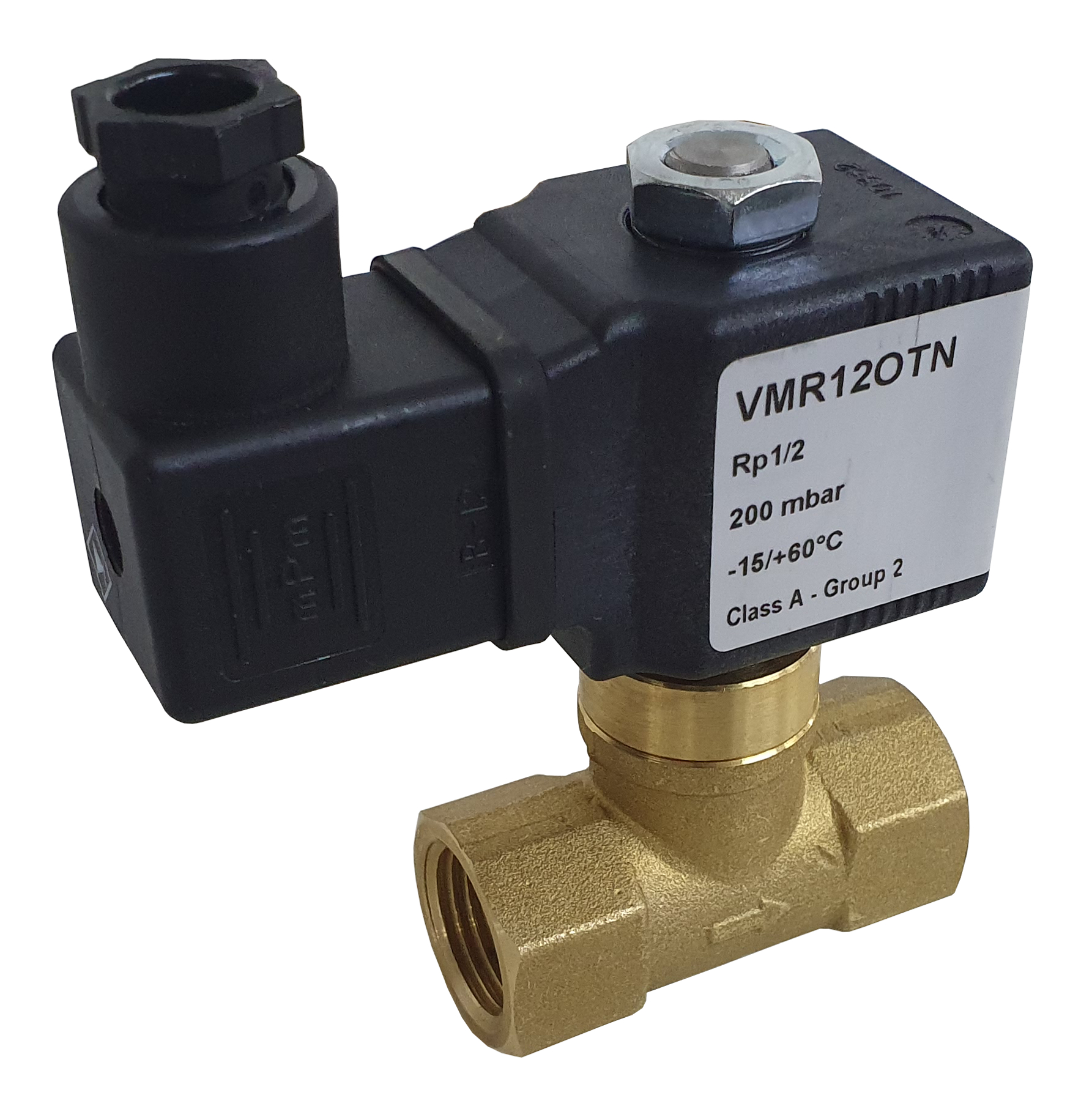

1/2 Gas solenoid valve Elektrogas VMR12OTN
Certified: EN161 Class A Group 2 Gas safety shut off
Function: 2/2 way Normally Closed
Port: 1/2 BSP, Option NPT thread (N)
Body: Brass
Seals: NBR
Operation: direct acting
Gas Pressure: 0 to 200mBar
Orifice: 6mm
Kv flow factor: 9.16 L/Min.
Voltages: 12vDC, 24vDC, 24vAC, 110vAC or 230vAC
Protection: IP65 with connector (Included)
Coil option: ATEX hazardous area available upon request.

The VMR120 type valve is a fast opening single-stage solenoid valve, normally closed. This type of device is suitable for air or gas blocking and releasing controls, required in gas power burners, atmospheric gas boilers, furnaces and others gas consuming equipment. The VMR120 type valves are made in accordance with EN161 standards and the CE test certificate is issued from GASTEC (Pin 0063AQ1350).

VMR1930.2101 230vAC coil to suit
VMR1930.2151 24vAC/DC coil to suit
VMR1930.2171 12vAC/DC coil to suit

Equivalent To

S8011.03
Asco solenoid valve sce215c020, jge215a040, egsce040b002, egsce030a016, EGSE040B002, EGSCE040B2D02, 8030g069, 8214G020, SCB040A022
Alcon, 34D11Z3A1-1A11, 34D11Z3A1-1A21, GB4C
​Banico zev15
BES 8961
Black Teknigas, 2841, 63aq7350 1, 63aq7350/1, 2843312-20
BRAHMA GAS VALVE E6G S10 1/2 GMO 13742002 18811053 SOLENOID VALVE 220 V
Burkert, 271199, 271430, 253502, 287438, 322107, 322109, 322110, 322112, 291453, 270994
Caleffi, series 838, 838004, 838104
Coster, 815, 415, 215, GNC815, GNC415, GNC215, GCA 415, GCA815, GCA 215
Danfoss, EVO/NC15
DMS geca sapphire AV015FO Gas valve fast opening ½ inch 500 mbar
DMS geca sapphire AV015FO-6B Gas valve fast opening ½ inch 6 bar
Econex VSARP315C, VSARP315B, VSBRP215B, VSBRP215C
exodraft, EFC21
Dungs, MVD205/5
Econex, VSBR215, VSBRP215
Flame fast, Sv15
Garland oven FM30GM, H91DS-12
Honeywell VE5015A, v4295a1015, v4295a1106, VE4015A1005
Kromschroder, vgp 15r02w6, VAS115
madas, GSSV15
Seitron, EVG PCF M015
Sontay VS-VMR-01-LV, VS-VMR-01
