Description

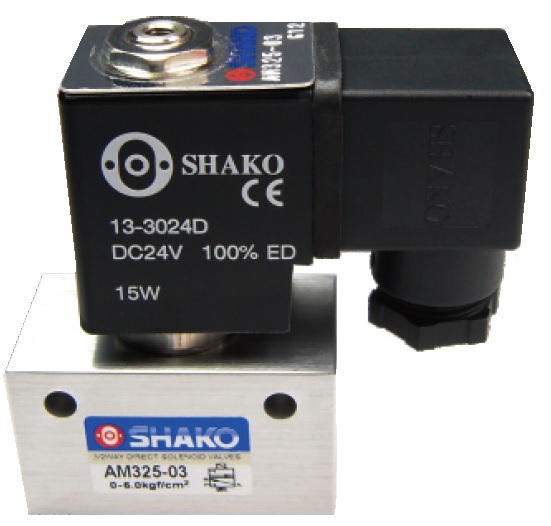

1/4 3/8 inch 3/2 solenoid valve Shako AM325
Function: 3/2 way normally closed
Operation: direct acting
Port: 1/4 or 3/8 BSP, option NPT thread, exhaust port M5.
Pressure: 0 to 6 Bar, (test pressure 7 Bar)
Body: Aluminium alloy
Internals: stainless steel
Seals: NBR
Media: compressed air, vacuum, gases or fluids under 50 CST compatible with materials of construction.
Orifice: 2.2mm
Kv flow factor: 2.3 L/Min based on water with 1 Bar pressure drop
Coil: 15 Watt Nass Magnet system 13/30 DIN43650A Class H IP65 100% duty rated
Coil option: ATEX EExmIIT4 for hazardous area use zones 21 and 22.
Voltages: 12vDC, 24vDC, 48vDC, 110vDC and 220vDC or 12vAC, 24vAC, 48vAC, 110vAC, 230vAC and 380vAC.

Equivalent To

Ingersoll Rand air solenoid Valve, CAT 66P-120-A, 65853, 120vAC, L0149
Sirai, L340V08G
Danfoss, 032U4907, 032U4908, 032U4909

Related Products

CLEARANCE

£21.12

3/8 Air solenoid valve 2-7 Bar 3/2 Normally Open PU310

£49.72

1/4 brass 3/2 solenoid valve 0-11 Bar 1.2-2.2mm VX

£35.90

1/8 1/4 solenoid valve 3/2 Normally Closed 0-8 Bar 1.4mm (Option Manifold + ATEX)

£111.01

1/4 stainless 3/2 solenoid valve 0-11 Bar 1.2-2.2mm VXS

CLEARANCE

£32.77

1/4" 3/2 way air compressor unloader soft start solenoid valve

£41.46

1/4 3/8 1/2 BSP 90 degree solenoid valve 0-25 Bar 2/2 Normally Closed

£52.98

1/8 1/4 Brass 3/2 solenoid Valve 0-8 Bar 1-2.5mm (ATEX option)

£41.80

M5 1/8 Brass 3/2 solenoid Valve 0-8 Bar 1-2.5mm BT01/BT03

£69.78

1/4 3/8 stainless 3/2 solenoid valve N/Closed 0-12 Bar 1.3-5mm (ATEX option)

£49.18

1/8 1/4 stainless 3/2 solenoid valve 0-8 Bar 1-2.5mm (ATEX option)

£36.11

1/8 1/4 solenoid valve 3/2 N/Open 0-8 Bar 1.4mm

Dimensions
Width	31.80
Height	96.00
Length	77.00
