Brand: Rotex
Model: 57450IS
| Dimensions | |
|---|---|
| Width | 53.00 |
| Height | 38.00 |
| Length | 289.00 |
£270.95
£504.10
Price Ex Vat: £225.79

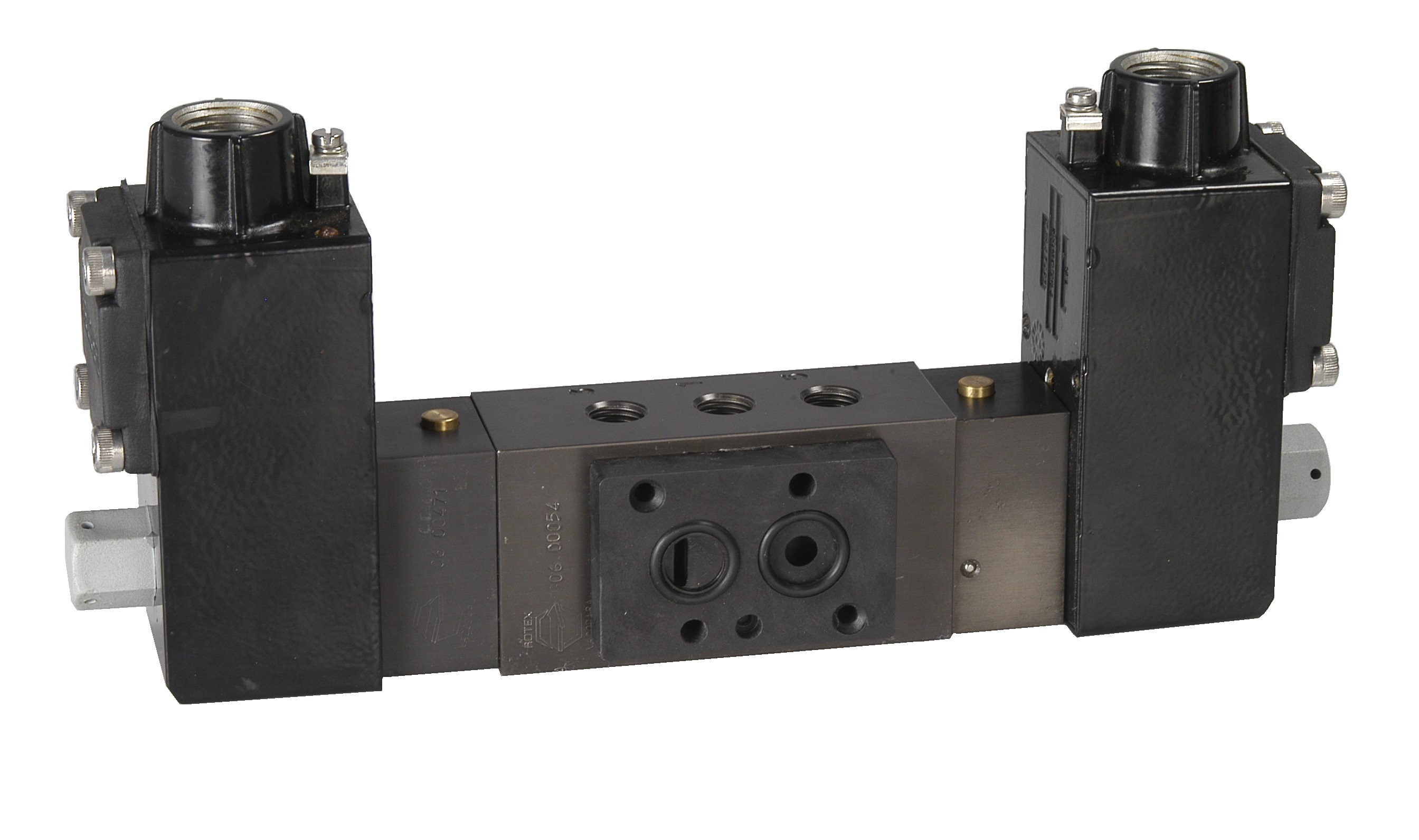

ATEX Ex ia Namur Solenoid Valve intrinsically safe bi stable Rotex 57450IS.
Function: 5/2 way double acting internal pilot
Port: 1/4 BSP or NPT
Pressure: 2 to 8 Bar
Orifice: 6.0mm
Body: Aluminium hard anodised or 316 stainless steel, internals Aluminium, Brass and 316 stainless steel.
Manual over ride: Push to operate momentarily, push and turn for for stay put.
Seat seal: NBR / Viton, EPDM or Fluorosilicone
Media: air, inert gas
Temperature range: -25°C to +75°C
Protection: Explosion proof IP67 enclosure Ex ia having integrated terminals
Conduit entry: 1/2NPT or M20x1.5mm
Approval: IEC Ex + ATEX Intrinsically safe WO CKT
Coil size: III 13mm
Voltage: 24vDC
Coil power: 2.3 Watts
Insulation class: H
Enclosure: Aluminium powder coated or 316 stainless steel.
Certificate No: Baseefa12ATEX0243X - Issue 1
Marking:
EX ia IIC T5, Ga (-60°C ≤ ta ≤75°C)
EX ia IIC T6, Ga (-60°C ≤ Ta ≤60°C)
EX ia IIIC T200 125°C IP67 Da (-60°C ≤ Ta ≤ 75°C)
Entity parameter: Ui 32vDC, Ii 230mA, Pi 2.3W, Li 0, Ci 0
Minimum operating parameter: V / I / W - 14V / 25mA / 0.350W
Valve Data Sheet
