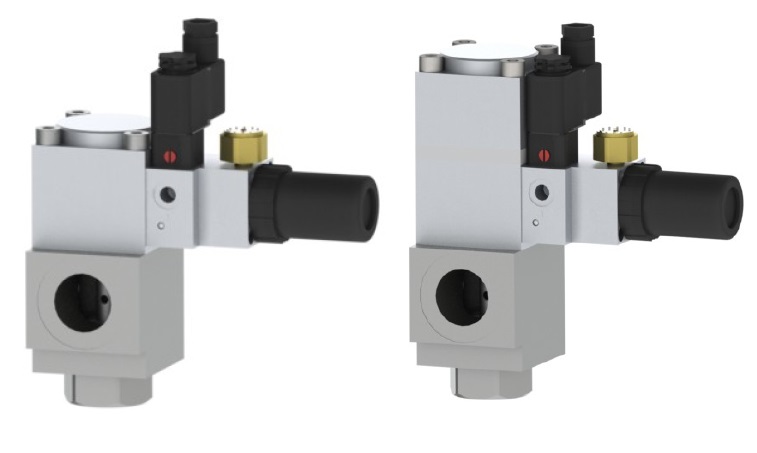

1 BSP pressure reducing valve 10-200 Bar - Manual c/w Closing Solenoid 785-P

Brand: RSG

Model: 785-P

Width 60.00
Height 143.00
Length 169.00

£908.89 £1,761.58
Price Ex Vat: £757.41

0 in stock


Manual pressure regulator with solenoid ON/OFF control type 785-P
Stepless pressure regulation.
Connection: G1 (BSP)
Pressure range: 12 to 160 Bar, 10 to 120 Bar, 5 to 64 Bar, 3 to 40 Bar, 10 to 200 Bar, 5 to 140 Bar or 3 to 80 Bar according to orifice and actuator.
Media: Liquid / fluid (50 micron)
Orifice: 10mm, 12mm, 15mm or 20mm
Kv flow factor: 3, 6, 8.3 or 14.1 M³/hr according to orifice
Body: AISI303 stainless
Seal: FKM
Temperature media: 0 to +60°C
Temperature ambient: 0 to +50°C
Electrical connection: DIN43650B industrial form
Nominal voltage: 24vDC or 230vAC
Voltage tolerance: +/- 10% according to VDE 0580
Power consumption: 24vDC 6 Watts, 230vAC 9.2VA
Protection: IP65 with connector (Included)
Duty factor: 100% ED
Mounting: Manometer preferred upright
Control air 8 Bar max filtered to 40 micron or better
Piping: Following flow-calming sections in terms of straight conduit are best.
Before the valve (P) a length of three times the internal diameter.
After the valve (T) must be free discharge of media. No dynamic pressure and minimal flow resistance must be ensured at all times.
