The Power Behind High Pressure Solenoid Valves

High pressure solenoid valves are crucial components in many industrial systems, precisely controlling the flow of liquids and gases, even under challenging conditions. These robust valves operate on the principles of electromagnetism, allowing for precise control even with extreme pressures that standard valves couldn't handle. This capability makes them essential across various UK industries.

How Electromagnetic Principles Drive Performance

At the core of a high pressure solenoid valve is a solenoid, an electromagnetic coil. When energized, this coil creates a magnetic field that interacts with a plunger inside the valve, moving it against a spring. This movement opens or closes the valve orifice, controlling media flow. You might find this helpful: General-Purpose Solenoid Valves.

Normally-Open Vs. Normally-Closed Configurations

High pressure solenoid valves come in two main configurations: normally-open (NO) and normally-closed (NC). NO valves stay open when de-energised and close when power is applied. NC valves are the opposite – closed when de-energized and open when energized. The right configuration depends on the specific application and the desired fail-safe position.

Direct-Acting Vs. Pilot-Operated Mechanisms

These valves can also be direct-acting or pilot-operated. Direct-acting valves rely solely on the solenoid's force to actuate. Pilot-operated valves use a small pilot orifice and the system's pressure to assist in opening and closing the main valve. This allows them to control larger flow rates with a smaller solenoid. Choosing the correct mechanism is key for performance and efficiency. Pilot-operated valves are often preferred for high flow rate applications.

The UK market consistently demands these crucial components. The UK solenoid valve market, which includes high pressure variants, has held a value of roughly USD 70 million in recent years, reaching nearly $71.8 million in 2023. This steady performance highlights the importance of solenoid valves across various sectors. More information can be found here: UK Solenoid Valve Market Trends. This stability fosters continued development in high pressure solenoid valve technology, adapting to the evolving demands of modern industrial processes.

Real-World Applications That Demand Exceptional Performance

High pressure solenoid valves are essential components in many UK industrial processes. From North Sea oil platforms to the complex systems within power stations, these valves are critical for maintaining operations where failure is simply not an option. Let's explore how these components perform in demanding UK environments.

Oil & Gas: Taming Extreme Pressures

Offshore oil and gas platforms present a uniquely challenging environment. High pressure solenoid valves play a crucial role in controlling the flow of extracted resources. These valves operate under immense pressures, often exceeding several hundred bar, while also enduring harsh weather conditions. Their reliable performance is paramount for safety and efficiency.

Power Generation: Ensuring Reliable Energy Supply

UK power stations rely on high pressure solenoid valves for precise control of steam and water flow in turbines and other critical systems. These valves must withstand high temperatures and pressures to ensure the continuous generation of electricity for homes and businesses. Maintaining precise control under these intense conditions is vital. Specific valve configurations also contribute significantly to optimizing power generation efficiency.

Chemical Processing: Precision Under Pressure

The chemical processing industry depends on high pressure solenoid valves for handling corrosive and hazardous materials. These valves require construction from corrosion-resistant materials and must incorporate advanced sealing technologies to prevent leaks. This ensures the safe and efficient handling of potentially dangerous chemicals in UK facilities. For instance, specific high pressure solenoid valves are crucial for controlling the flow of reactants and products in chemical reactors, directly impacting both safety and production output. High pressure solenoid valves are integral to UK power generation and chemical processing, sectors demanding components that can withstand extreme conditions. Market analysis shows that these valves must endure high temperatures and pressures while maintaining precise fluid control. Stringent UK safety and environmental regulations have driven the integration of advanced solenoid valve technologies featuring corrosion-resistant materials and enhanced sealing. These improvements ensure valve integrity under pressures exceeding 600 bar, a typical requirement in UK power plants and chemical facilities. Explore this topic further: High Temperature and High-Pressure Solenoid Valve Market.

Water Treatment: Safeguarding Public Health

Water treatment plants use high pressure solenoid valves to regulate water flow and ensure the accurate dosing of chemicals for purification. These valves play a vital role in delivering safe and clean drinking water to communities across the UK. Their reliable operation underscores the need for durable and dependable valves that meet stringent industry standards.

Emerging Applications: A Sustainable Future

High pressure solenoid valves are finding increasing use in renewable energy systems, supporting a more sustainable industrial future for Britain. These valves are essential components in solar thermal power plants and geothermal energy systems, managing fluid flow and optimizing energy generation. This adaptability highlights their contribution to cleaner energy solutions. Their robust performance characteristics make them well-suited for the demanding conditions often present in renewable energy applications.

Selecting Your Perfect Valve: Beyond the Specification Sheet

Choosing the right high-pressure solenoid valve is a crucial decision that goes beyond simply reviewing specifications. It demands a thorough understanding of your application's specific needs and careful consideration of factors often overlooked. This guide walks you through the key aspects experienced UK engineers prioritize when choosing valves for critical applications.

Decoding the Essential Specifications

Understanding core specifications is paramount. Start by focusing on the pressure rating, ensuring it comfortably exceeds your system's maximum operating pressure. A safety margin is essential. Next, evaluate material compatibility. The valve's body and seals must be resistant to the chemical properties of the media being controlled, especially crucial in the harsh environments often found in UK industrial settings. For a more detailed guide, check out our resource on selecting the right high pressure solenoid valve.

Coil Specifications and Environmental Resilience

Coil specifications, including voltage and power consumption, must be compatible with your electrical system. Also, assess the valve's environmental resilience. Consider factors such as temperature fluctuations, humidity, and potential exposure to corrosive elements, particularly relevant in the UK's variable weather conditions. These considerations ensure consistent and reliable operation even in demanding environments.

High-pressure solenoid valves are crucial for various manufacturing processes requiring precise fluid control. You can learn more about their impact on manufacturing processes. This knowledge helps you select valves tailored to specific UK industrial needs.

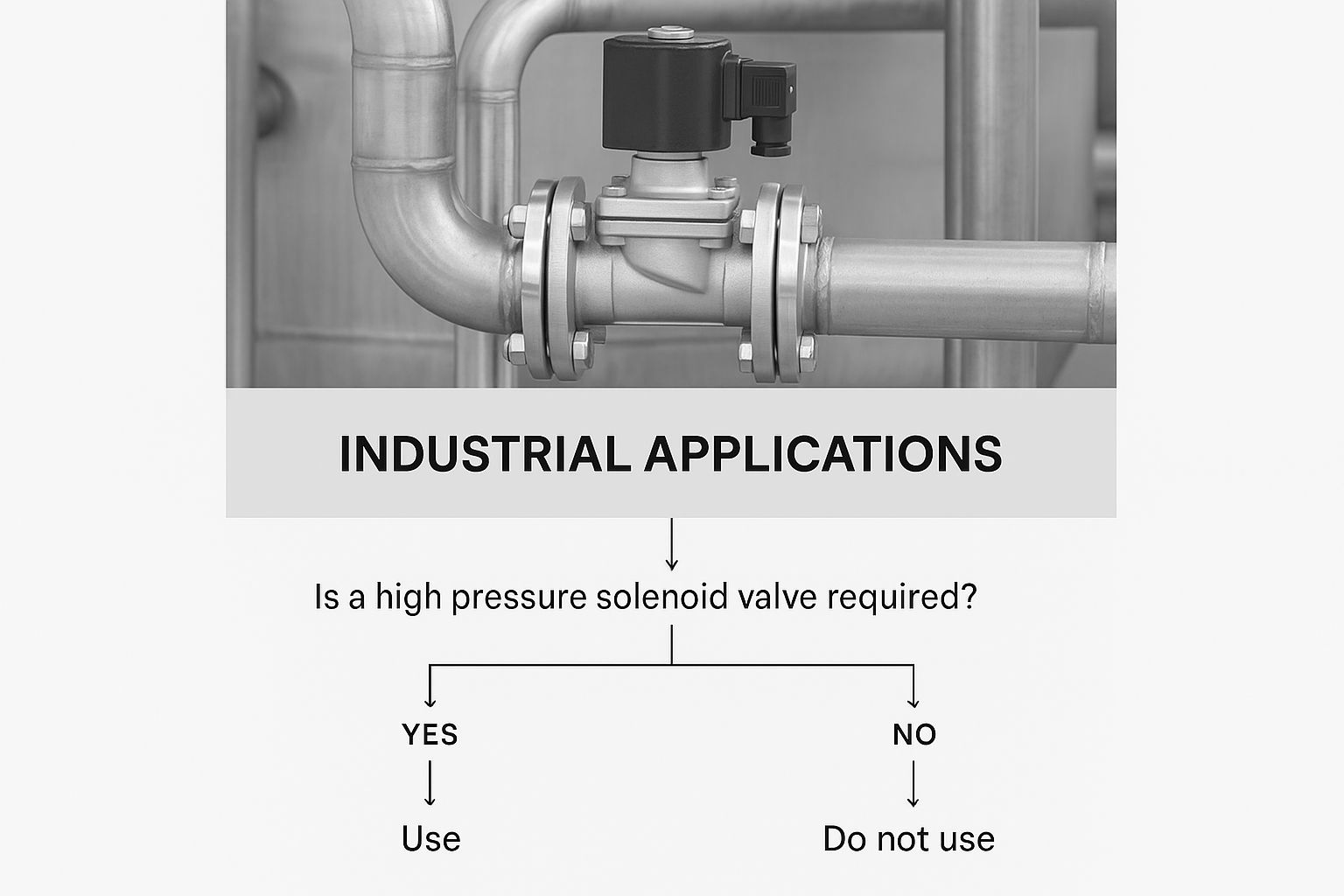

This infographic illustrates the varied industrial applications of high-pressure solenoid valves. The key takeaway is the diversity of operating environments, highlighting the importance of careful selection based on application-specific criteria.

Navigating UK and European Standards

Adhering to UK and European standards is essential. Look for valves certified to relevant standards, such as the Pressure Equipment Directive (PED), ensuring the valve meets stringent safety and performance requirements. For hazardous environments often encountered in UK industries like oil and gas, consider ATEX certification.

Calculating Pressure Drop and Flow Coefficients

Understanding pressure drop and flow coefficients (Cv) is critical. Pressure drop indicates the pressure loss across the valve. The Cv value reflects the valve's flow capacity. Accurate calculation of these parameters ensures sufficient flow for your application. Inaccurate calculations can result in performance issues and costly inefficiencies.

To assist in selecting the right valve, we've compiled a comparison table outlining key criteria for various industrial uses.

The following table provides a comprehensive comparison of selection criteria for different industrial applications.

Selection Criteria	Oil & Gas	Chemical Processing	Power Generation	Water Treatment
Pressure Rating	High (often exceeding 10,000 PSI)	Medium to High (dependent on specific chemicals)	Medium	Low to Medium
Material Compatibility	Resistant to corrosive chemicals and high temperatures	Highly resistant to specific corrosive chemicals	Resistant to high temperatures and pressures	Corrosion-resistant, often brass or stainless steel
Temperature Range	Wide range, including extreme lows and highs	Dependent on specific chemicals	High temperatures common	Moderate temperature range
Certification	ATEX certification often required	PED certification essential; specific chemical certifications may apply	PED and other industry-specific certifications	NSF/ANSI 61 and other relevant certifications

This table summarizes the key differences in valve requirements across various industries, demonstrating the importance of considering specific application needs when choosing a valve.

Balancing Performance and Budget

Finally, balance performance needs with budget considerations. While higher-quality valves may have a higher initial cost, they often provide a longer lifespan and lower maintenance costs over time. This careful balancing act avoids costly operational failures and downtime frequently associated with less robust valves. Investing in a slightly more expensive, high-quality valve can lead to significant long-term savings by minimizing premature replacements and maintenance needs. A reliable high-pressure solenoid valve is an investment in the continued success of your operation.

Tomorrow's Valve Technology: Innovations Reshaping UK Industry

The high-pressure solenoid valve landscape is constantly evolving. Is your UK operation ready for what's next? Through discussions with leading UK manufacturers and industry experts, we've identified the key innovations transforming how businesses operate. These advancements offer substantial benefits for companies looking to stay ahead of the curve.

Smart Solenoid Valves: The Future of Predictive Maintenance

Imagine a high-pressure solenoid valve that anticipates its own maintenance needs. This is the reality of solenoid valves with SMART IO link connectors with integrated sensors. These sensors monitor critical parameters like current, voltage, temperature, and cycle time and count, providing real-time data that enables predictive maintenance.

By detecting subtle performance variations, these smart valves alert operators to potential issues before they become major problems. This proactive approach shifts maintenance from reactive to predictive, optimizing operational efficiency and minimizing downtime.

IoT Connectivity: Unprecedented System Visibility

The Internet of Things (IoT) is revolutionising industrial processes, and high-pressure solenoid valves are no exception. Connecting these valves to a network gives operators unparalleled visibility into system performance. This real-time data empowers businesses to make data-driven decisions, optimize resource allocation, and identify potential issues remotely.

IoT connectivity also enables remote monitoring and control, providing increased flexibility and responsiveness.

Energy Efficiency: Reducing Costs Without Compromising Performance

Energy efficiency is a primary concern for UK businesses. New high-pressure solenoid valve designs address this by minimising energy consumption without sacrificing performance. Innovative designs reduce power consumption during operation, lowering operating costs while maintaining the reliability and performance of high-pressure systems.

These advancements are crucial for businesses aiming to reduce their environmental impact and improve profitability. Europe, including the UK, holds a significant share of the solenoid valve market – over 38% of the revenue in 2023. This highlights the UK's influence in driving demand for these valves across sectors like manufacturing, transportation, and energy. Learn more about market trends: Solenoid Valves Market Report.

Material Innovations: Extending Lifespan in Harsh Environments

High-pressure solenoid valves often operate in challenging environments, from corrosive chemicals to extreme temperatures. New material innovations are extending the lifespan of these vital components.

Advanced materials, such as specialized alloys and polymers, offer superior resistance to corrosion and temperature extremes. This enhanced durability leads to a longer service life, reducing maintenance costs and ensuring reliable operation, even in the harshest UK industrial settings. These innovations are particularly important for industries working with harsh chemicals or extreme temperatures, ensuring continuous operation and minimizing the risk of expensive failures.

Installation and Maintenance Secrets From the Field

Even the best high-pressure solenoid valve can fail prematurely without the right installation and maintenance. Drawing on insights from experienced UK maintenance engineers, this section offers practical techniques to prevent costly downtime and extend component lifespan in demanding industrial settings.

Installation Best Practices: Getting It Right From the Start

Proper installation sets the stage for a reliable high-pressure solenoid valve system. First, ensure the system is thoroughly flushed to remove any debris or contaminants that could damage the valve. This is especially important in older systems where rust or scale can be a problem. Next, install the valve in the correct flow direction as marked on the valve body. Incorrect installation can reduce performance and lead to early wear.

System Preparation: Flush the system to remove debris. Consider a strainer upstream to catch remaining particles.

Orientation: Install the valve in the correct flow direction, noting any arrows on the valve body.

Mounting: Securely mount the valve to prevent vibration and stress on the connections. This is crucial for high-pressure applications where forces can be significant.

You might be interested in: How to master Pressure Reducing Valves.

Electrical Connections: UK Standards and Safety

Electrical connections must meet all relevant UK standards. Use correctly sized wiring and proper grounding to prevent hazards. Incorrect wiring can lead to coil burnout or safety risks. Double-check all connections before powering up the valve.

Wiring: Use the correct gauge wire for the valve’s power needs, checking the manufacturer's specifications.

Grounding: Ground the valve properly to prevent shocks and ensure safe operation.

Connection Verification: Verify all wiring and connections before applying power.

Maintenance Schedules and Inspection Protocols

Regular maintenance is essential for maximizing the lifespan of a high-pressure solenoid valve. While the manufacturer's recommendations are a good starting point, actual schedules should reflect the specific operating conditions. Factors like the controlled media, operating pressure, and frequency of use influence the optimal maintenance interval.

Routine Inspections: Regularly inspect the valve for signs of wear, leakage, or corrosion.

Coil Inspection: Check the solenoid coil for overheating or damage. A multimeter can check coil resistance.

Cleaning: Clean the valve and pipework to prevent debris buildup, especially important in UK environments prone to mineral deposits in water systems.

Troubleshooting Common Issues: From the Field to Your Fix

Even with meticulous installation and maintenance, problems can still occur. Here are some common issues and solutions from UK field engineers:

Coil Burnout

Symptom: Valve doesn't operate.

Cause: Often voltage fluctuations or overheating.

Solution: Check the voltage supply and replace the coil if needed.

Leakage

Symptom: Fluid leaking around the valve stem or body.

Cause: Worn seals or loose connections.

Solution: Tighten connections or replace seals. For persistent leaks, replace the valve.

Pressure Loss

Symptom: Reduced system flow.

Cause: Blockage in the valve or pipework, or a faulty valve.

Solution: Check for blockages and clean or replace parts as needed. If there’s no blockage, the valve may be faulty.

By following these practical tips, you can ensure your high-pressure solenoid valve operates reliably and efficiently, minimizing downtime and maximizing its service life in demanding UK environments. This proactive approach to valve management will save time and money in the long run.

Navigating UK Regulations Without Drowning in Paperwork

The UK's regulatory landscape for high pressure solenoid valves is increasingly complex, especially post-Brexit. Understanding these regulations is crucial for ensuring worker safety, environmental protection, and avoiding significant financial penalties. This section provides a clear guide to navigating these requirements efficiently.

Understanding the Pressure Equipment Directive (PED)

The Pressure Equipment Directive (PED) is a cornerstone of UK regulations for high pressure equipment, including solenoid valves. It establishes essential safety requirements for the design, manufacture, and conformity assessment of this equipment. Compliance with the PED is mandatory for selling high pressure solenoid valves in the UK.

Maintaining your valves properly can significantly extend their working life. For helpful guidance, refer to these maintenance and troubleshooting tips.

ATEX Certifications for Hazardous Environments

ATEX certification is essential in hazardous environments where explosive atmospheres may be present. ATEX regulations define essential health and safety requirements, along with conformity assessment procedures, for equipment and protective systems used in these potentially explosive atmospheres. High pressure solenoid valves operating in such environments must adhere to the relevant ATEX directives. This is particularly critical in industries like oil and gas and chemical processing, both prominent sectors in the UK.

Decoding Certification Markings and Documentation

Understanding certification markings and related documentation is key to demonstrating compliance. The CE marking signifies conformity with the PED. For ATEX-certified equipment, specific markings indicate the equipment’s category and its intended use within different hazardous zones.

Maintaining comprehensive documentation, including certificates of conformity and technical files, is essential for audits and inspections. These markings offer assurance that the high pressure solenoid valve meets required safety standards.

Conformity Assessment Procedures

Navigating conformity assessment procedures can be challenging. Different modules exist, depending on the classification of the high pressure solenoid valve and its associated risk. These modules range from self-certification for simpler devices to the involvement of a Notified Body for higher-risk equipment. Selecting the appropriate procedure is essential for ensuring compliance and minimizing administrative overhead. Understanding these procedures simplifies the compliance process and helps avoid potential problems.

Real-World Case Studies: Practical Compliance Strategies

Examining real-world examples can offer valuable insights. We will explore case studies from UK facilities that have effectively implemented compliance strategies for their high pressure solenoid valve systems. These examples provide practical solutions for meeting regulatory requirements while minimizing operational disruption. They underscore the importance of a proactive approach to compliance.

The following table provides an overview of key UK regulatory requirements:

Regulation/Standard	Scope	Key Requirements	Application Areas	Compliance Documentation
Pressure Equipment Directive (PED)	Design, manufacture, and conformity assessment of pressure equipment	Essential safety requirements related to design, materials, manufacturing processes, and testing	High pressure solenoid valves operating above specified pressure limits	EC Declaration of Conformity, technical documentation
ATEX Directives	Equipment and protective systems for use in potentially explosive atmospheres	Essential health and safety requirements for preventing ignition sources	High pressure solenoid valves used in hazardous environments	ATEX certificate, technical documentation
British Standards (e.g., BS EN 60529 - IP Ratings)	Specifies protection provided by enclosures against external influences	Defines degrees of protection (IP ratings) against ingress of solid objects, dust, and water	High pressure solenoid valves needing environmental protection	Test reports, manufacturer's declaration

This table summarizes important UK regulatory requirements for high pressure solenoid valves. This information is not exhaustive, and consulting with a compliance expert is recommended. This proactive step ensures you have the most accurate and current information.
