Non Return Check Valves: Expert Guide for Selection & Use
Understanding Non-Return Check Valves Like Never Before
Imagine a revolving door at a fancy hotel. People can easily push through from the street to enter the lobby, but trying to go back out through the same section of the revolving door is much harder – it’s designed to only allow easy passage in one direction. A non-return check valve works similarly in a piping system: it permits fluid (like water or gas) to flow freely in one direction but blocks it from flowing back the other way.
These ingenious devices are conceptually straightforward. Think of it like a swing door in a restaurant kitchen. A waiter can easily push through with a plate of food, but the door swings shut behind them, preventing kitchen smells from wafting into the dining area. Non-return check valves operate on this same principle, utilizing a disc or ball within the valve body that’s pushed open by the forward flow of the fluid.
When the flow stops or attempts to reverse, this disc or ball is pushed back onto its seat by the back pressure, effectively sealing the valve shut. This prevents backflow, which can harm equipment, contaminate processes, or even lead to dangerous situations. A malfunctioning non-return check valve can be like a blocked fire exit – a seemingly small issue with potentially significant consequences.
How Check Valves Work
Here's a glimpse inside a typical check valve: Notice the simple design: a closing mechanism activated by reverse pressure. This ensures efficient one-way flow.

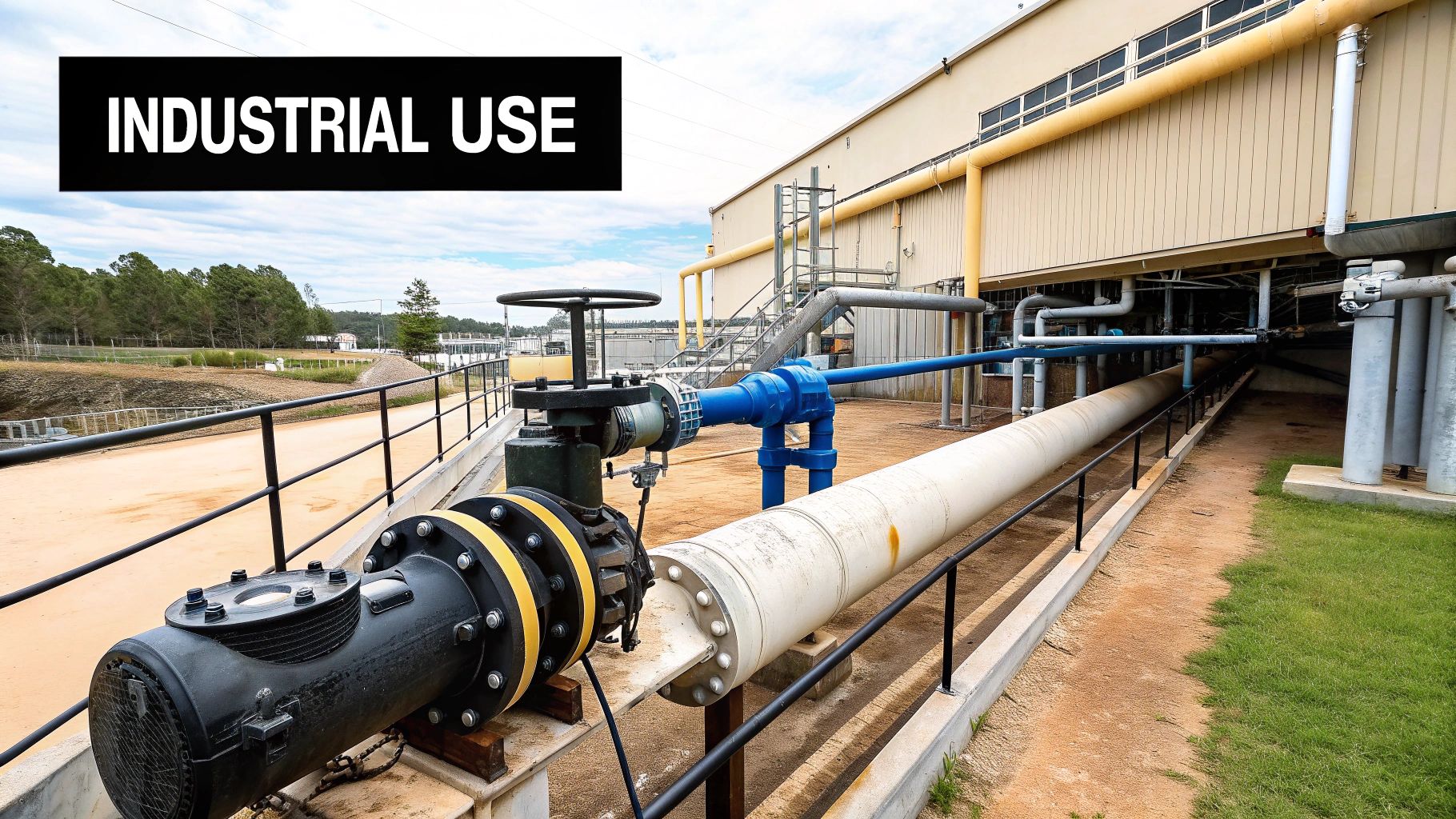

This simple mechanism plays a crucial role across various industries. In a water treatment plant, non-return check valves safeguard the treated water supply by preventing contaminated water from re-entering the clean system. They perform the same vital function in everything from the plumbing in our homes to complex industrial processes. When planning your next plumbing project, choosing the right valves is key. For helpful tips, check out Yasu Trading Co. LLC's plumbing project considerations.
The Importance of Non-Return Check Valves
Non-return check valves are the unsung heroes of fluid systems, working quietly in the background to ensure everything flows smoothly. Their automatic operation and reliability make them critical components in countless applications, protecting systems and preventing costly downtime. Understanding the potential problems caused by backflow highlights the indispensable role these valves play in modern engineering.
The Fascinating Mechanics Behind Check Valve Operation
Let's explore how these ingenious components work, starting with a simple analogy. Imagine a swinging door – you push it open, applying pressure greater than the door's resistance. A non-return check valve operates on a similar principle of pressure differential. Forward-flowing fluid in a pipe acts like your push on the door, exerting pressure on the obturator. This obturator is the movable part of the valve (think of it as the door itself), and can be a disc, ball, or poppet.
This pressure overcomes the obturator's resistance, which might come from a spring, gravity, or simply the obturator's own weight. Once the pressure is high enough, the valve opens, allowing the fluid to flow smoothly downstream.
But what happens when the flow stops or reverses? Just like a swinging door closing when you stop pushing, the check valve closes automatically. When the flow reverses, downstream pressure equals or exceeds the upstream pressure. The force holding the obturator open disappears, allowing it to close and prevent backflow.

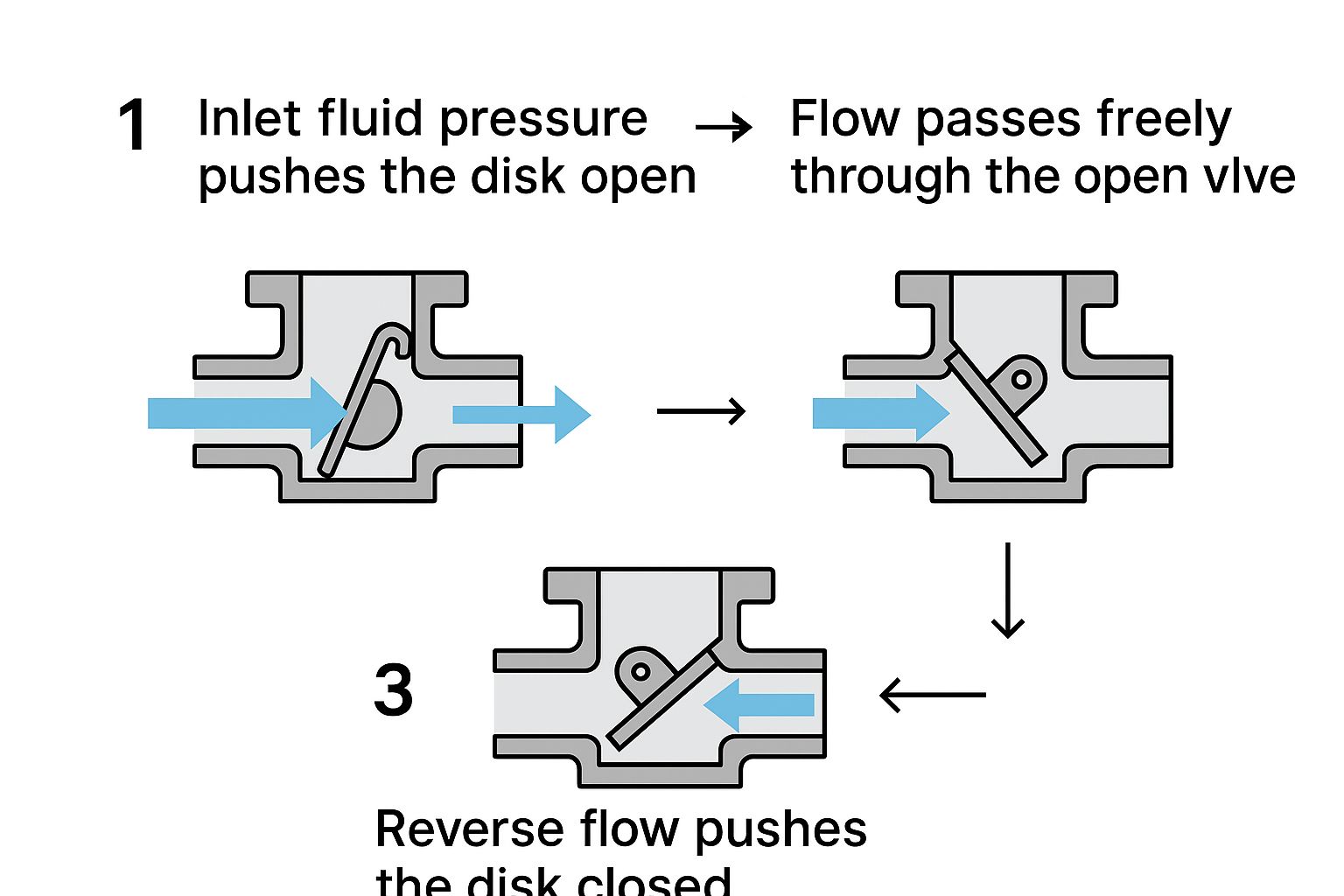

The infographic above illustrates this beautifully: forward flow opens the valve, while reverse flow shuts it tight, protecting your system from the damaging effects of backflow.
Cracking Pressure: The Key to Valve Activation
Now, let's talk about cracking pressure – a critical concept in check valve operation. Think of it as the initial "push" needed to open that swinging door. It's the minimum upstream pressure required to open the valve and initiate flow.
A low cracking pressure means the valve opens easily with minimal flow, while a high cracking pressure requires more force. This cracking pressure depends on the obturator's resistance, which can be adjusted by changing the spring tension (if present) or by using a heavier obturator.
Choosing the right cracking pressure is crucial. Too high, and your system may not achieve the desired flow rate. Too low, and the valve might not seal tightly enough, allowing some backflow.
To help you understand the various types of check valves and their operating mechanisms, let's take a look at this comparison table:
| Check Valve Operating Mechanisms Comparison | Comparison of different check valve mechanisms, their opening methods, and typical applications |
|---|---|
| Mechanism Type | Opening Method |
| Swing Check | Forward pressure pivots the disc open |
| Lift Check | Vertical upward lift of the disc or ball |
| Stop Check | Similar to lift check but with manual override |
| Ball Check | Ball moves out of the flow path |
The table highlights some key differences between common check valve mechanisms. Notice how each type is suited to particular applications, and understanding these nuances is essential for selecting the right valve.
Getting the cracking pressure right, along with choosing the appropriate valve type, ensures efficient and safe operation of your fluid system. This foundational knowledge empowers you to pick a check valve that reliably performs its job, keeping your system running smoothly.

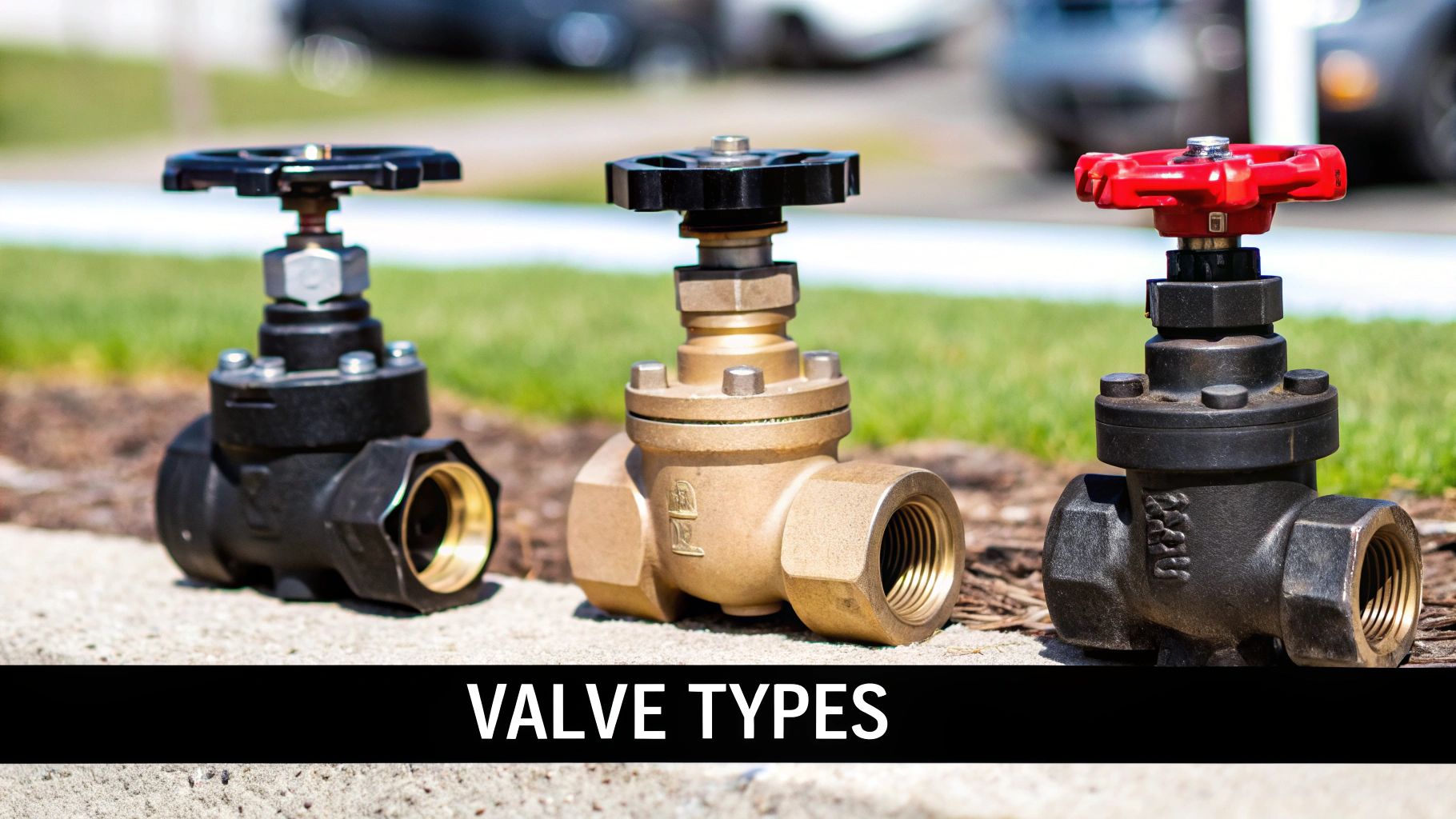

Exploring the Check Valve Family Tree
Non-return check valves come in various designs, much like doors. You wouldn't use a flimsy interior door as a fire exit, right? Similarly, different check valves suit different jobs. Let's delve into the key types.
Swing Check Valves: The Reliable Workhorse
Picture a garden gate swinging open in one direction and then closing with its own weight. That's the simple idea behind a swing check valve. A hinged disc allows fluid through when pressure pushes it open. When the flow reverses, the disc swings shut, preventing backflow. These workhorses are common in larger pipes where space isn't an issue.
Lift Check Valves: The High-Pressure Specialist
When the pressure's on, lift check valves take center stage. These valves use a guided disc or ball that lifts vertically to allow flow. Gravity or back pressure then closes the disc, stopping any reverse flow. They're built for high-pressure industrial environments.
Ball Check Valves: The Compact and Quick Responder
Imagine a small ball bearing acting as a plug. That’s the essence of a ball check valve. Forward pressure pushes the ball out of the way, and back pressure reseats it to stop backflow. Compact and quick, these valves are perfect for smaller lines or when rapid response is essential. Want to learn more? Check out additional resources on check valves at Solenoid Valve World.
Wafer Check Valves: The Space-Saver
In tight spaces, wafer check valves are the heroes. Sandwiched between pipe flanges, they minimize space requirements. Their design simplifies maintenance and replacement, making them a go-to choice when access is tricky. Interestingly, these valves, especially resilient hinge check valves, have saved the UK water industry millions by preventing backflow and contamination. Discover more about these cost-saving valves.
Choosing the Right Valve: A Matter of Matching Personalities
Each check valve type has its own strengths and weaknesses. Swing check valves are tough but can be slow to close in fast flows. Lift check valves handle high pressure well. Ball check valves are compact and react quickly. Wafer check valves save space. Understanding these differences lets you choose the best valve for your system's needs, ensuring efficient and reliable performance.
Material Selection: Choosing Your Valve's Armor
Picking the right material for your non-return check valve is crucial. Think of it like selecting armor for a knight – you wouldn't send someone into battle wearing leather against cannons. The material determines how long your valve lasts, how well it resists corrosion, and its ability to handle pressure and temperature extremes. A bad choice here can lead to early failure, expensive downtime, and even safety risks.
Common Check Valve Materials and Their Applications
Different materials bring different strengths and weaknesses to the table when it comes to non-return check valves. Let's take a closer look at some common options:
Brass: A popular choice thanks to its corrosion resistance and affordability. Brass shines in water and low-pressure applications. However, it's not suited for high-temperature environments due to its limitations.
Cast Iron: Strong and durable, cast iron is a workhorse in water systems, especially for larger pipes. While generally dependable, it can be prone to rusting under certain conditions.
Stainless Steel: This material boasts excellent corrosion resistance and can handle higher temperatures and pressures. It's a top pick for demanding applications like food processing and pharmaceuticals. Different grades of stainless steel offer a range of performance and cost options.
Plastic (PVC, CPVC): Cost-effective and lightweight, plastic valves are well-suited for specific uses like chemical handling and irrigation, where resistance to certain chemicals is key. However, they're typically limited to lower pressures and temperatures.
Exotic Alloys: When facing extremely corrosive chemicals or incredibly high temperatures, specialized alloys like Hastelloy or Monel provide exceptional protection. They come at a premium cost but offer remarkable longevity in these challenging conditions.
For a deeper dive into various valve types and their uses, you might find Solenoid Valve World helpful, especially if you're interested in exploring solenoid valve options.
The True Cost of Material Choices
Focusing only on the initial price tag when choosing a valve can be a penny-wise, pound-foolish decision. A cheaper material might seem appealing upfront, but it could lead to frequent replacements, system downtime, and potential damage to other components. Investing in a higher-quality material often translates to lower overall costs over the valve's lifetime.
Think of it like buying shoes. A cheap pair might wear out quickly, needing frequent replacements, while a well-made pair can last for years. The same principle applies to non-return check valves: choosing a durable material designed for your specific needs pays off in the long run.
Real-World Examples: Materials in Action
Imagine a food processing plant using stainless steel non-return check valves. These valves withstand frequent cleaning and the corrosive nature of some food products, ensuring product quality and preventing contamination. In contrast, a water treatment facility might choose robust cast iron valves to handle the high flow rates and pressures within their system. Understanding how different materials perform in real-world scenarios is vital for making the best choice for your particular needs.
To help guide your selection process, we've put together a handy table:
Check Valve Material Selection Guide Guide to selecting appropriate materials based on operating conditions and fluid types
| Material | Temperature Range | Pressure Rating | Chemical Resistance | Typical Applications | Cost Category |
|---|---|---|---|---|---|
| Brass | Moderate | Moderate | Good | Water, low-pressure systems | Low |
| Cast Iron | Moderate | High | Fair (can rust) | Water systems, large pipes | Medium |
| Stainless Steel | High | High | Excellent | Food processing, pharmaceuticals, demanding applications | Medium-High |
| PVC/CPVC | Low | Low | Excellent (specific chemicals) | Chemical handling, irrigation | Low |
| Hastelloy/Monel | Very High | High | Exceptional (highly corrosive chemicals) | Extreme environments | High |
This table provides a general overview; specific material properties can vary. Always consult manufacturer specifications for your chosen valve. Choosing the right material is a balance of performance needs and budget. Consider the long-term cost of ownership when making your decision.
Check Valves in Action: Real-World Success Stories
Let's shift gears from the technical nitty-gritty and explore how non-return check valves perform in the real world. These unsung heroes play a vital role across various industries, quietly preventing disasters and ensuring everything runs smoothly.
Protecting Our Water: Check Valves in Water Treatment
Picture a bustling city's water treatment plant. Here, non-return check valves are essential, acting like gatekeepers. They ensure treated water flows to homes and businesses while preventing untreated or contaminated water from flowing back into the clean system. This is crucial for public health, preventing outbreaks of waterborne illnesses.
Ensuring Safety at Sea: Offshore Oil Platforms and Check Valves
Out on a North Sea oil platform, reliability is key. Non-return check valves safeguard critical equipment from backflow, maintaining operations even in brutal weather. Their robust design and materials allow them to withstand corrosive seawater and intense pressure fluctuations.
Life-Saving Applications: Check Valves in Healthcare
Hospitals depend on non-return check valves in life-support systems and other vital applications. These valves guarantee one-way flow of gases and fluids, preventing potentially fatal backflow. Their reliable operation lets medical professionals focus on patient care, knowing these essential components are working behind the scenes.
Preventing Contamination in Food Processing
Hygiene is paramount in food processing plants. Non-return check valves prevent cross-contamination between different product lines. They ensure one-way flow, stopping potentially contaminated materials from mixing with processed food, safeguarding product quality and safety.
The Rise of Renewables: Check Valves in Green Energy
As the UK embraces renewable energy, non-return check valves are in higher demand. These valves play a key role in solar thermal systems, geothermal installations, and other green energy applications. They regulate fluid flow and protect equipment, contributing to the efficiency and reliability of these sustainable technologies. Interestingly, the UK's adoption is part of a global trend. The check valves market, valued at USD 6.5 billion in 2023, is expected to reach USD 21.17 billion by 2030, growing at a CAGR of 15.3%. Discover more insights on the check valves market.
Unexpected Applications: Creative Uses for Check Valves
Beyond these common uses, non-return check valves pop up in surprising places. They’re used in fire suppression systems for quick activation, in CO2 recovery systems for beverage dispensing, and even in some musical instruments to control airflow.
From Problem to Solution: The Power of Proper Selection
These examples show how the right non-return check valve makes all the difference. Choosing the correct valve type, material, and cracking pressure is vital for reliable performance and avoiding costly issues. For more on related products, see the Solenoid Valve World homepage. These stories aren't just about technical success; they show how selecting the right valve transforms potential problems into dependable systems.
Mastering Valve Selection: Your Strategic Approach
Picking the right non-return check valve is a fundamental decision, much like choosing the right foundation for a house. It's not just about what you need today, but how it will perform and what it will cost you down the line. Let's walk through a strategic approach to help you confidently choose the best valve for any situation.
Understanding Your System's Needs
First things first: you need a deep understanding of your system's specific demands. Think about it like a doctor diagnosing a patient – they need all the vital signs before prescribing treatment. Here's what you need to examine:
Flow Requirements: How much fluid needs to pass through the valve, and how quickly? This dictates the valve's size and type. High flow rates might need a larger valve, while smaller flows might be fine with a smaller, more responsive one. Think about applications like pumps, such as these Rule Brand Bilge Pumps, which have specific flow requirements.
Pressure Conditions: What are the highest and lowest pressures the valve will encounter? This is key for selecting a valve that can handle the stress. Higher pressures require tougher valves.
Temperature Extremes: What's the temperature range the valve will operate in? Extreme temperatures can affect the valve's material and how well it performs. Some materials get brittle in the cold or weak in the heat.
Fluid Characteristics: What type of fluid are we talking about? Is it corrosive, thick, or full of particles? This affects the materials and design of the valve.
Decoding Valve Specifications
Once you know your system's needs, it's time to understand the language of valve specifications. These are like the instructions for your new gadget – you need to understand them to use it correctly.
Cracking Pressure: This is the minimum upstream pressure needed to open the valve. Getting this right is crucial for efficient operation.
Pressure Rating: This tells you the maximum pressure the valve can safely handle. Exceeding this limit could lead to failure, and that's never good.
Temperature Rating: This specifies the safe operating temperature range for the valve. Going outside this range can damage the valve and affect its performance.
Size and Connection Type: Make sure the valve's physical dimensions and connection type (flanged, threaded, etc.) fit your piping system.
Considering the Total Cost of Ownership
The initial price tag is important, but it's not the whole story. Total cost of ownership looks at the long game: operating costs, maintenance, and how often you'll need to replace it. A pricier valve that lasts longer and needs less maintenance might actually save you money in the long run. The projected growth of the UK control valve market, from USD 350 million in 2024 to USD 1,500 million by 2035, highlights how crucial strategic valve selection is for key industries like oil & gas and water treatment. Explore the full research on the UK control valve market.
Avoiding Common Pitfalls
Even seasoned professionals can make mistakes. Here are a few common valve selection traps to avoid:
Undersizing the Valve: A valve that's too small restricts flow and causes a big pressure drop.
Overlooking Material Compatibility: Using the wrong material with the wrong fluid can lead to corrosion and early valve failure.
Ignoring Installation Requirements: Improper installation can mess up valve performance and cause leaks.
By following these steps and avoiding these common mistakes, you can choose non-return check valves that will deliver reliable, long-lasting performance and keep your fluid systems running smoothly.
Installation and Maintenance: Keeping Your Investment Protected
Even the best non-return check valves need proper care to perform reliably. Think of them like the tires on your car – essential for performance and safety, but needing regular attention. This section covers the key installation and maintenance practices that will keep your valves working smoothly and protect your investment.
Installation Best Practices: Setting the Stage for Success
Proper installation is the foundation of a well-functioning fluid system. It’s like building a house – a solid foundation prevents future problems. A poorly installed non-return check valve can lead to leaks, wear, and wasted energy. Here’s how to do it right:
Orientation is Key: Non-return check valves only work in one direction. Make sure the valve is installed in the correct flow direction, as shown by the arrow on the valve body. Installing it backwards is like trying to drive your car in reverse on the highway!
Support is Crucial: Support the weight of the valve and connecting pipes to prevent stress and potential damage. This is particularly important for larger valves. Imagine a bridge without proper supports – it wouldn't last long.
Cleanliness Matters: Before installation, make sure the piping is clean and free of debris. Even small particles can interfere with the valve's seal and cause problems. It's like cleaning a wound before bandaging it – cleanliness is key for proper healing (and valve function!).
Follow Manufacturer's Instructions: Every valve is different. Consult the manufacturer's guidelines for specific torque settings, sealing materials, and other important details. It’s like following a recipe – the instructions are there for a reason.
Maintenance Matters: Extending Valve Life
Even with perfect installation, regular maintenance is essential. Think of it like regular oil changes for your car – preventative maintenance saves you money and headaches in the long run.
Regular Inspections: Periodically inspect the valve for signs of wear, leaks, or damage. Look for external signs like corrosion, or listen for unusual noises during operation.
Testing Valve Function: Make sure the valve opens and closes completely. This can be done manually or with automated tests.
Cleaning and Lubrication: Depending on the valve and its operating conditions, cleaning and lubrication might be necessary. Refer to the manufacturer’s recommendations for the right procedures.
Troubleshooting Common Issues: Solving Valve Problems
Even well-maintained valves can sometimes have issues. Here are some common problems and how to fix them:
Leaks: Leaks can be caused by worn seals, damaged parts, or incorrect installation. Check the valve's sealing surfaces and replace any damaged components.
Sticking or Binding: If the valve doesn't open or close smoothly, it might be stuck due to debris or corrosion. Cleaning and lubrication can often solve this.
Water Hammer: This loud banging noise in pipes can damage valves. Proper pipe support and slow-closing valves can help prevent this issue.
Proactive System Design: Preventing Problems Before They Start
Good system design can prevent many valve problems in the first place. It's like designing a house with good insulation – you prevent problems before they start. Here are some things to consider:
Minimizing Pressure Fluctuations: Sudden pressure changes can strain valves. Using pressure regulators or surge protectors can help protect the system.
Proper Pipe Sizing: Incorrect pipe sizes can create excessive pressure or flow velocity, leading to valve wear. Make sure the piping is the right size for the intended flow rate.
By following these installation and maintenance practices, you can ensure your non-return check valves perform reliably for years, protecting your investment and keeping your fluid systems running smoothly. Want to explore more fluid control solutions? Visit Solenoid Valve World for a wide selection of products and expert advice.
