Best Solenoid Valve For Steam Systems: UK Industry Guide

Understanding Steam Solenoid Valve Fundamentals

Managing steam effectively is a fundamental part of operations for many industries across the UK. In this context, the solenoid valve for steam emerges as an essential device. These valves are specifically built to withstand the tough conditions found in steam systems, including wide temperature swings and corrosive condensation.

Unlike older manual valves that need someone to operate them, solenoid valves provide the exactness and quick action required in modern, highly automated industrial settings. This move towards automation is crucial for keeping operations both efficient and safe.

The Core Principle: Electromagnetic Actuation

The core working part of a solenoid valve for steam is its electromagnetic actuation mechanism. This system uses an electric coil, known as the solenoid. When electricity flows through this coil, it generates a magnetic field.

This field then shifts a plunger (or core), which in turn opens or closes the valve's opening to manage the steam. It's very important that this magnetic field is strong enough to push against the steam pressure in the pipe, which ensures reliable operation even under demanding conditions. This setup enables almost immediate control, far quicker than the slower, manual adjustments of older valves. Such fast and accurate control is vital for any process that needs steam delivered with precision.

Material Science In High-Performance Steam Valves

Selecting the right materials for a solenoid valve for steam is incredibly important because of the tough conditions it works in. Steam, especially when it's very hot and under high pressure, can be quite harsh. For this reason, the main body of the valve and its internal parts are frequently made from materials like stainless steel.

This metal is favored for its strong resistance to rust and its capacity to handle high temperatures without breaking down. Seals and diaphragms also need special materials, such as PTFE (often recognized by the brand name Teflon) or EPDM, chosen because they work well with steam and can endure repeated heating and cooling. Careful material choices like these guarantee the valve will last a long time and perform reliably, which helps avoid expensive interruptions and repair work.

Driving Efficiency In UK Industries

UK industries have increasingly turned to automated solutions, such as solenoid valves, to improve how efficiently they operate. For a long time, the use of solenoid valves in the UK has been linked to boosts in industrial automation and overall efficiency. In fields like steam power generation, these valves are critical for managing steam flow, a key factor for both effective operation and safety. You can Explore this topic further to understand the market dynamics.

This level of exact control cuts down on wasted energy and helps keep product quality consistent in various uses, from sterilizing equipment to providing heat. Being able to connect these valves into broader control systems also permits more advanced ways to manage steam.

To handle steam well, it's important to fully understand its characteristics and the equipment designed to control it. If you're looking for more information, you might find this article useful: The Critical Role of Solenoid Valves in Steam Systems. By getting to grips with these basic principles, engineers and facility managers can gain a clearer insight into the benefits these advanced parts offer to their daily work.

Steam Valve Types And Performance Configurations

When choosing a solenoid valve for steam, looking beyond simple 'normally open' or 'normally closed' classifications is vital for your system's best performance. The true factors for efficiency and dependability in tough steam applications are found in the valve's internal design, the materials it's made from, and how well it suits specific working conditions. A well-considered choice means your steam control will be both accurate and reliable.

Direct-Acting Vs. Pilot-Operated: Core Differences

The way a steam solenoid valve is activated greatly affects its performance. Direct-acting solenoid valves work by having the solenoid coil directly open or close the valve's opening. This design usually means very fast response times, often within milliseconds, and they can work well even from zero bar pressure differential. However, they typically need stronger solenoids for larger openings or higher pressures, which can make them less suitable for high-flow situations.

On the other hand, pilot-operated solenoid valves, also called servo-assisted or indirect-acting, use the existing line pressure to help open or close the main valve opening. The solenoid controls a small pilot opening, which then uses system pressure to move the main seal. This approach allows for controlling much higher flow rates and pressures with smaller, less powerful solenoids. A key point for pilot-operated valves is that they usually need a minimum pressure differential, often around 0.5 bar, across the valve to work properly.

Material Selection: Critical For Steam Environments

Picking the right body material for a solenoid valve for steam is essential because steam can be harsh, especially at high temperatures and pressures. While brass is common for general-use solenoid valves and can work for lower-pressure saturated steam (usually up to about 10 bar and 185°C), it might suffer from dezincification or stress corrosion cracking over time in more severe steam conditions.

For most industrial steam uses, stainless steel (usually grade 304 or 316) is the better choice. It offers excellent resistance to corrosion from steam and condensate, and it keeps its strength at higher temperatures, often handling pressures well above 10 bar and temperatures over 200°C. This makes stainless steel vital for the durability and safety of strong steam systems.

Visualising Key Performance Data

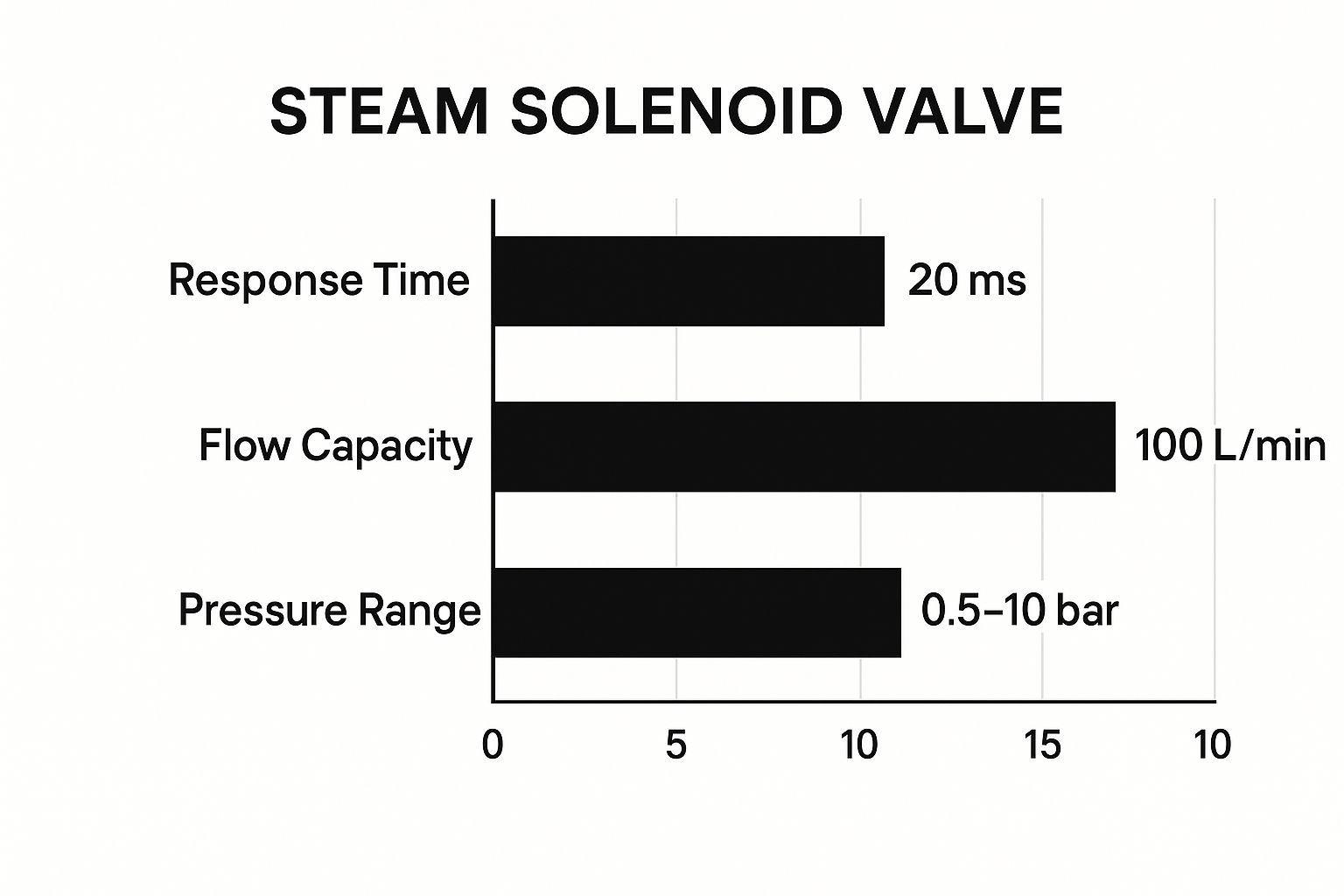

To help understand how these elements connect, the chart below shows typical performance numbers for a common solenoid valve for steam:

This image shows a balance between a quick response time (20 ms), a moderate flow capacity (100 L/min), and a flexible pressure range (0.5–10 bar), which are typical for many widely available steam solenoid valves.

Understanding Valve Construction: Two-Way And Three-Way Designs

Solenoid valves for steam generally come in two main functional types. Two-way valves are the most frequent, offering simple on/off control of steam flow in a single line. They have one entry port and one exit port.

Three-way valves, however, have three ports and can be used to switch steam flow from one path to another or to combine two steam flows. Although less common for basic steam shut-off, they are essential in more intricate process control situations, like alternating steam supply or managing condensate return. The choice between these designs depends completely on what your steam application needs.

Temperature Derating In High-Pressure Steam Systems

A very important factor that's often missed is temperature derating. As the steam's operating temperature goes up, the maximum pressure a valve can safely manage often goes down. Manufacturers supply derating charts or tables that show the allowed operating pressure at different temperatures. For high-pressure steam systems, it’s crucial to pick a solenoid valve for steam whose pressure rating at the actual working steam temperature is adequate, not just its listed pressure rating at room temperature. Ignoring this can cause early valve failure or safety issues.

Comparing Steam Solenoid Valve Characteristics

To help clarify these distinctions and guide your selection, the following table, "Steam Solenoid Valve Types Comparison," provides a side-by-side look at key characteristics. This comparison focuses on different solenoid valve types, detailing their pressure ratings, temperature limits, materials, and ideal applications for steam systems.

Valve Type	Pressure Rating	Temperature Range	Material	Best Application
Direct-Acting	Low to Medium (0-10 bar)	Up to 185°C	Brass, Stainless Steel	Low flow, fast response times, systems with zero pressure differential, rapid cycling
Pilot-Operated	Medium to High (0.5-25 bar+)	Up to 250°C+	Brass, Stainless Steel	Higher flow rates, higher pressures, systems where min. 0.5 bar pressure drop is present

This table highlights the main operational differences and material considerations for direct-acting and pilot-operated solenoid valves in steam applications. Matching the valve's capabilities with your system's specific demands is crucial for safe and efficient steam control.

Choosing the correct setup for your solenoid valve for steam ensures not only that it works, but also that it operates efficiently and lasts a long time. Learn more about various steam valves and their applications in our detailed article.

Real-World UK Industrial Applications

Throughout the UK, the practical benefits of effective steam management are clear across numerous industrial sectors. More than just a simple part, the solenoid valve for steam is crucial for improving efficiency, upholding safety standards, and ensuring high quality. These valves are making a real difference in how steam processes are handled, from advanced research laboratories to large manufacturing sites.

Precision in Pharmaceuticals and Food Processing

In fields like pharmaceuticals and food processing, where exactness and cleanliness are top priorities, the solenoid valve for steam is incredibly important. Pharmaceutical companies, for instance, depend on these valves for precise steam sterilisation control. This level of accuracy is essential for keeping medical equipment and products free of contaminants, meeting strict UK regulations. Automating and precisely managing steam flow ensures sterilisation is both successful and consistent every time.

Food processing operations in the UK also use steam solenoid valves to uphold critical hygiene standards. Steam plays a key part in cleaning and sanitising machinery, and the dependable function of a solenoid valve for steam guarantees these tasks are done well. This directly supports food safety, reducing the risk of expensive product recalls and maintaining customer confidence. The sturdy build of these valves, often made from stainless steel, makes them ideal for the tough, frequently cleaned conditions found in food manufacturing.

Efficiency in Energy and District Heating

The push for better energy efficiency and greener methods means the solenoid valve for steam is finding its place in the energy industry. District heating networks, supplying heat to numerous buildings from one main point, gain a lot from the accurate control these valves provide. They play a big part in optimising energy distribution, making sure steam goes only where and when it’s required. This helps cut down on waste and lower total energy use; for example, studies indicate better control in district heating can save up to 15-20% on energy.

Additionally, biomass energy facilities are becoming more widespread in the UK’s renewable energy efforts. These plants frequently face tough operating environments, and their steam systems can severely test valve capabilities. Strong and dependable solenoid valves for steam are vital for handling the high-temperature, high-pressure steam produced, supporting the effectiveness and feasibility of these environmentally friendly energy sources.

Consistency in Brewing and Textiles

Manufacturing sectors also use the features of the solenoid valve for steam to improve their production methods. In UK brewery operations, specific valve setups are critical for temperature-sensitive processes such as mashing and boiling the wort. Accurate steam management guarantees temperatures are kept just right, which is crucial for getting the intended flavours and uniform quality in the beer.

Similarly, textile manufacturers find these valves indispensable for achieving consistent production quality. Steam is frequently employed in tasks like dyeing, finishing, and pressing fabrics. A solenoid valve for steam that reliably delivers steam at the correct settings helps ensure uniformity from one fabric batch to another. This cuts down on imperfections and boosts the quality of textiles made in the UK, a key factor for staying competitive worldwide.

These varied uses highlight just how adaptable and significant the solenoid valve for steam is for UK industries. They show how this technology helps businesses achieve many different operational objectives.

UK Market Dynamics And Investment Drivers

The increasing use of modern steam control methods, especially the solenoid valve for steam, in UK industries is no coincidence. This shift stems from a mix of economic pressures, progress in technology, and a stronger focus on sustainability. Grasping these influences provides a clearer view of upcoming market directions and areas for investment.

Economic Impulses And Automation Investments

Economic forces consistently reshape the UK's industrial sector. For example, fluctuating energy costs push businesses to put money into systems that operate more efficiently. A well-controlled solenoid valve for steam is important for making the best use of steam, which in turn affects energy use and running costs.

Changes in supply chains, partially due to events like Brexit, also highlight the importance of strong, automated manufacturing within the country. These economic trends are mirrored in the wider UK market for solenoid valves, including those for steam. The market is growing due to a greater need for automation in areas like manufacturing and energy generation.

This points to a definite shift towards systems that work more accurately with less human input. You can explore more detailed statistics on the global solenoid valves market for deeper insights. Such a push for automation logically boosts the call for parts like the solenoid valve for steam.

Sustainability And Regulatory Tailwinds

Government sustainability initiatives and national goals, like the push for net-zero emissions, are also encouraging the adoption of advanced steam control. Managing steam efficiently is now more than just saving money; it’s a key part of a company’s environmental plan.

As a result, the requirements for components such as a solenoid valve for steam increasingly focus on how they can help reduce carbon emissions and improve energy use. Because of these commitments, businesses are taking a closer look at their steam systems. They are searching for parts that provide better control and cut down on waste.

For instance, swapping out old, inefficient manual valves with automated solenoid valves for steam can noticeably decrease energy loss, supporting these national objectives. This opens up opportunities for valve makers and sellers who can show the green advantages of their items.

Industry 4.0 And The Future Of Steam Control

The principles of Industry 4.0, which center on connected and smart manufacturing, are increasingly shaping the design and management of steam systems. Although full adoption differs by sector, the move toward more intelligent factories is clear. This creates a higher demand for components like the solenoid valve for steam, which can be linked into digital control networks for live data and remote control.

Industries showing significant growth prospects for these advanced valves include food and beverage, pharmaceuticals, and chemicals, where exact process control is vital. The growing renewable energy field, especially in biomass and geothermal uses, also offers practical market chances where effective steam management is key.

Steam solenoid valves are frequently found in industrial plumbing and fluid control systems. You can find further insights into various plumbing projects and applications through specialized resources. The shift to smarter steam systems points to a promising future for the adaptable solenoid valve for steam.

Strategic Valve Selection And Sizing Methods

Designing an excellent steam system goes beyond simple flow calculations. It requires a careful and thoughtful method for choosing your solenoid valve for steam. This involves a detailed look at what your system needs to do, making sure the valve you pick works perfectly and fits your project's budget and schedule. A well-planned approach is crucial to sidestep expensive mistakes and ensure the system runs reliably for a long time.

Understanding The Critical Flow Coefficient (Cv)

A key factor in picking the right solenoid valve for steam is the Flow Coefficient (Cv). This is an engineering figure that shows how much fluid a valve can let through under certain conditions. The usual definition is the volume of water in US Gallons per minute that passes through a valve when there's a pressure drop of 1 psi across it.

For steam, the Cv rating indicates the steam flow rate for specific conditions. For example, a solenoid valve for steam with a Cv of 10 would permit 10 US Gallons of steam (which would be converted to steam units like kg/hr or m³/hr for real-world use) to flow per minute with a 1 psi pressure difference. Calculating the needed Cv accurately is very important, especially because steam is compressible, meaning its properties change a lot with pressure and temperature.

The Risks Of Incorrect Cv Sizing

Selecting a solenoid valve for steam with the wrong Cv rating can cause serious operational headaches. Valves that are too small or too large can both affect your system's performance and efficiency.

An undersized Cv rating can lead to several problems:

• Reduced flow rates: The valve acts as a bottleneck, limiting steam supply to equipment downstream. This can slow down production or lower heat transfer effectiveness.
• Increased energy consumption: The system, especially boilers, might need to work harder to make up for the restricted flow, resulting in higher fuel bills.
• Excessive pressure drop: A large pressure drop across the valve can hinder the operation of turbines, heat exchangers, or other machinery that uses steam.
• Premature wear and tear: High steam speeds through a narrow opening can cause erosion. A significant pressure drop might also lead to cavitation, where steam bubbles form and then collapse, damaging the valve's internal parts and making noise. Thermal fatigue from quick temperature shifts due to pressure changes can also be an issue.

On the other hand, an oversized Cv rating also causes difficulties:

• Poor flow control: The valve might only reach the target flow rate when it's almost closed, making fine adjustments hard and potentially causing the control system to "hunt" or fluctuate.
• Reduced efficiency: Oversized valves can be less precise, possibly wasting steam and using more energy than needed to operate.
• Valve overshoots: Small adjustments can result in too much steam flow, leading to inefficiencies or even harm to downstream components.

Matching Cv To Steam Type And System Demands

The best Cv value also hinges on the kind of steam used – whether it's wet steam (which has water droplets), dry saturated steam, or superheated steam. For instance, wet steam is denser and can be more erosive, so it needs careful material selection and a Cv that considers its two-phase nature. Applications using dry steam, common in processes requiring precise temperature management, need a Cv that allows smooth flow without unwanted changes in steam state.

Because of this, the first step is to accurately figure out your system's specific flow needs. This includes maximum and minimum flow rates, inlet and outlet pressures, and the steam's temperature. This information allows for the proper calculation of the target Cv for your solenoid valve for steam.

Key Selection Specifications For Steam Solenoid Valves

Beyond the Cv, other specifications are very important. The table below details essential factors to consider when choosing a solenoid valve for steam for different steam conditions.

This table, "Steam Valve Selection Specifications," outlines essential technical specifications and performance data for selecting appropriate solenoid valves based on steam pressure, temperature, and flow requirements.

Specification	Low Pressure Steam	Medium Pressure Steam	High Pressure Steam	Critical Considerations
Typical Pressure	Up to 2 bar	2 to 10 bar	Above 10 bar	Ensure valve's Maximum Operating Pressure Differential (MOPD) exceeds system pressure.
Typical Temperature	Up to 120°C	120°C to 180°C	Above 180°C	Check material compatibility (e.g., stainless steel) and temperature derating curves.
Cv Calculation	Critical for accurate flow	Essential for balanced performance	Precision vital for safety & efficiency	Factor in steam state (saturated, superheated) and specific gravity.
Material Choice	Brass (for saturated), Stainless Steel	Stainless Steel recommended	Stainless Steel (316 or higher) essential	Consider corrosive elements in steam; seal materials (e.g., PTFE, EPDM, FKM).
Response Time	Application dependent	Faster response often preferred	May be less critical than durability	Direct-acting for fast response, pilot-operated for high flow/pressure.

Carefully reviewing what vendors offer is crucial. For systems working at higher pressures and temperatures, you might find Understanding High-Pressure Solenoid Valves a useful resource. This information helps ensure the chosen valve meets the demanding conditions of high-pressure steam applications.

Environmental Impact And Installation Nuances

The environment where the valve is installed—like ambient temperature, possible vibrations, or exposure to moisture or corrosive substances—greatly affects material choices. This is especially true for the valve's coil housing and outer parts. Choosing suitable enclosure ratings (like IP ratings for protection against dust and water) and materials that resist ambient conditions helps the solenoid valve for steam last longer. This careful planning prevents early failures caused by environmental issues, making sure the valve works as intended throughout its operational life. Striking a balance between the initial cost and these long-term operational factors is a sign of smart valve selection.

Installation Excellence And Safety Best Practices

So, you've picked out the perfect solenoid valve for steam for your setup. Great! But the job isn't done yet – getting it installed correctly is a really big deal. It's not just about slotting the valve in; a good installation means your valve will work well for a long time, keeping things efficient and safe. If you cut corners here, even the best valve can become a headache, leading to constant repairs and system breakdowns.

Pre-Installation Checks And Pipe Preparation

Before you even think about opening the box for your new solenoid valve for steam, take a good look at your existing pipework. It's super important to double-check that the valve’s details – like its pressure, temperature, and voltage ratings – are a perfect match for your system and power supply. This quick check can save you from big problems right from the start.

Next up, make sure those pipes are sparkling clean. Bits of rust, scale, or leftover welding material can wreak havoc on the delicate insides of your valve, such as the seats and seals, or stop it from closing properly. Industry folks know that a significant portion of premature valve failures happen because of contaminants left in the pipes. So, here’s what you need to do:

• Thoroughly flush new or recently modified pipe systems before installing the valve.
• Consider installing a strainer (typically a Y-type strainer with a fine mesh screen, around 80-100 mesh for steam) upstream of the solenoid valve for steam. This acts as a vital protective barrier, particularly in older systems.
• Ensure pipes are correctly aligned and adequately supported to prevent mechanical stress on the valve body. Misalignment can distort the valve, leading to leaks or operational failure.

Having the right support for your pipes is key. If they're not supported, vibrations and stress can go straight to the solenoid valve for steam, which could damage joints or the valve body itself down the line.

Mounting And Orientation Of Your Steam Solenoid Valve

Getting your solenoid valve for steam mounted in the right way is pretty simple, but it’s essential for it to work its best and last a long time. Most solenoid valves will have a flow direction arrow clearly marked on the body; installing the valve in line with this indicated flow is mandatory for it to function as designed.

Although many solenoid valves can be installed in any position, when you're dealing with steam, best practice is to mount the valve with the solenoid coil assembly upright (vertical) and on top. This setup has a few advantages:

• It helps get rid of heat from the coil more effectively.
• It makes it less likely for any gunk or moisture to mess with the plunger's movement within the core tube.
• It can help reduce wear and tear on the moving bits.

Make sure the valve is tightly secured to the pipework. Use the right kind of fittings and sealants, like PTFE tape or an approved pipe sealant for threaded connections, suitable for steam conditions.

Managing Thermal Expansion And Condensate

Steam systems are lively places, with pipes growing and shrinking quite a bit due to temperature changes. For example, a 30-metre length of steel pipe can actually get over 30mm longer when it heats up from ambient temperature to 180°C steam. This kind of movement can put a lot of strain on a solenoid valve for steam if it's rigidly fixed in place. Adding expansion loops or sometimes flexible connectors into your pipe design can help manage this movement and keep your valve safe.

Condensate (water formed as steam cools) is another big thing to watch out for. If you don't handle condensate properly, it can cause some serious problems:

• Water hammer: This is when slugs of condensate get shot through the pipes by steam at high speed. It can create a nasty shock, potentially damaging your solenoid valve for steam and other components.
• Corrosion: Even in stainless steel systems, if certain types of condensate sit around for too long, they can cause issues.
• Reduced heating efficiency: When condensate builds up, it can block steam flow and make your heating less effective.

Effective condensate management means installing steam traps at strategic low points in the system and before control valves like your solenoid valve for steam. Pipework should also be sloped to encourage condensate to drain towards these traps and away from the valve, particularly on the upstream side.

Electrical Connection And Safety Compliance In The UK

When it comes to the electrical bits for your solenoid valve for steam, it's crucial that a qualified person handles the job. All wiring must meet UK safety standards, primarily the current edition of the IET Wiring Regulations (BS 7671). Here are some key things to keep in mind:

• Voltage and Current Matching: Always double-check that the coil's voltage matches the supply voltage. Using an incorrect voltage can damage the coil or prevent the valve from operating.
• Secure Connections: Use the correct type of electrical connector (e.g., DIN connector as per EN 175301-803) and ensure all connections are secure and protected from moisture and mechanical damage. Loose connections are a common source of failure.
• Earthing: Ensure the valve (if metallic and required) and associated electrical components are correctly earthed.
• Safe Isolation: Always isolate the electrical supply before carrying out any installation or maintenance work on the solenoid valve for steam.

Sticking to these electrical safety practices is paramount to prevent electrical shock, fire, or equipment malfunction.

Commissioning And Initial Troubleshooting

After your solenoid valve for steam is all set up, both mechanically and electrically, it's time to commission it to make sure everything's working as it should. This usually involves a few steps:

• Leak Testing: Carefully check all connections for leaks once the system is pressurised (initially with a safer medium like air if possible, before introducing steam).
• Operational Cycling: Energise and de-energise the solenoid coil several times to confirm the valve opens and closes smoothly and completely. Listen for any unusual noises.
• System Response: Observe how the valve's operation affects the downstream process, ensuring it meets the system's control objectives.

If issues arise, such as the valve not actuating, check for power at the coil, correct wiring, and any signs of binding (perhaps due to debris if a strainer wasn't used or pipework wasn't flushed). Early identification and resolution of installation-related problems are crucial to prevent more significant issues down the line. For further support, consulting the manufacturer’s documentation or seeking advice from suppliers like Solenoid Valve World can be invaluable.

Maximizing Performance Through Proactive Maintenance

To get the most out of your solenoid valve for steam and ensure it runs smoothly for years to come, proper selection and installation are just the starting line. What really makes a difference is a solid, proactive maintenance plan. This kind of planning doesn't just make your valves last longer; it’s key to cutting down on surprise shutdowns and keeping your whole system working well. Think of this proactive care as an investment in your steam control system's continuous, top-notch operation.

Establishing Practical Maintenance Schedules

When it comes to maintaining a solenoid valve for steam, there’s no magic schedule that fits every situation. Your maintenance plan needs to be specifically designed around a few important points. Consider how hard the valve works, the steam quality (like moisture or dirt content), the valve's design, and what the maker suggests. For example, a valve operating under high-pressure steam 24/7 will need check-ups more often than one used occasionally at lower pressures.

A good maintenance routine should include:

• Regular Visual Checks: Look for outside signs of wear and tear, rust, leaks, or any harm to the coil and its wiring.
• Finding Leaks: Listen for hissing steam sounds or use proper tools to find leaks near valve joints and the main body. Even minor steam leaks can lead to big energy bills; a tiny 3mm leak at 7 bar pressure can cost over £2,000 in wasted energy each year.
• Function Tests: Test the valve now and then to see if it opens and closes properly, without getting stuck or making strange noises.
• Coil Health Check: Look for clues that the coil is getting too hot (like changes in color or a burnt smell) or if the electrical wiring is damaged.
• Internal Check-ups (during planned system stops): When the system is down for regular maintenance, take a look inside at parts like diaphragms, seals, and the plunger. Check them for wear, gunk buildup, or damage. This step is vital for keeping the performance of your solenoid valve for steam at its best.

Always remember to follow the relevant Health and Safety Executive (HSE) guidelines during any maintenance work, which is a top priority for UK industrial sites.

Recognising Warning Signs Of Impending Valve Issues

Spotting early trouble with your solenoid valve for steam can save you from major breakdowns and expensive surprise downtime. It's important for both operators and maintenance teams to know what to look and listen for. These are the common signals that something might be wrong:

• Slow or Non-Responsive Action: The valve takes too long to open or close, or it doesn’t react when it's supposed to.
• Hissing Sounds: A clear hissing noise means steam is leaking from the valve itself or its connections.
• Seeing Steam or Water Drips: If you see steam escaping or water constantly dripping around the valve.
• Hot Coil: The solenoid coil feels unusually hot (be careful when checking!) or gives off a burnt smell.
• Odd Noises: Sounds like clicking, too much buzzing (more than the usual hum from an AC coil), or chattering when the valve is working.
• Unsteady System Output: If you notice temperature, pressure, or flow changes after the valve, it might mean the valve isn't controlling the steam properly.

Reporting these signs quickly so they can be checked out is key to getting ahead of problems. This watchfulness helps your solenoid valve for steam keep doing its job effectively.

Diagnostic Procedures For Common Failure Modes

If your solenoid valve for steam isn't working right, a step-by-step check can help find the problem quickly. Common issues include a burnt-out coil, worn or broken diaphragms or seals, blockages inside from scale or dirt, or a plunger that gets stuck.

Here are some basic diagnostic steps to try:

1. Verify Power: Make sure the solenoid coil is getting the right amount of electricity.
2. Inspect Externally: Look for any clear physical damage, loose wires, or leaks.
3. Listen Carefully: Pay attention to any unusual noises when the valve tries to operate.
4. Check Coil Temperature (Safely!): If the coil is much hotter than normal, it could mean there's an internal short circuit or it's working too hard.
5. Isolate and Inspect Internally (if necessary): Before you open up the valve, always make absolutely sure it’s cut off from both steam pressure and electricity. Once it's safe, look for wear and tear, dirt, or broken parts inside.

Following the right steps is important for any maintenance job. For instance, whether you're working with intricate systems or what seem like basic parts, clear instructions are essential. Knowing how to correctly install polyethylene tank systems for bulk storage, for example, shows just how important it is to stick to guidelines to avoid problems down the line.

Repair Or Replace? A Cost-Benefit Perspective

When a faulty solenoid valve for steam acts up, you'll need to decide: fix it or get a new one? A quick repair might look like the cheaper choice at first, but sometimes a new valve is better value in the long run.

Think about these points when deciding:

Factor	Favours Repair	Favours Replacement
Cost of Parts	Low (e.g., seals, O-rings, minor coil)	High (e.g., extensive body damage, obsolete coil)
Valve Age/Condition	Relatively new, good overall condition	Old, heavily worn, multiple previous repairs
Labour Time	Quick, simple repair (e.g., <1 hour)	Complex, time-consuming repair (e.g., >2 hours)
Downtime Impact	Minimal, repair can be done quickly on-site	Significant, replacement is faster if parts are ready
Availability of Spares	Readily available, standard parts	Obsolete parts, long lead times for specialist items
Technology Upgrade	Current technology is still efficient	Opportunity to upgrade to more energy-efficient or reliable model

Usually, swapping out seals or a bad coil on a relatively new solenoid valve for steam makes good financial sense. But, if the valve is getting old, parts are hard to find, or there's a newer, better model out there, replacing it is often the smarter move. A new valve could work better and save energy, which can make up for the cost of buying it.

Keeping up with maintenance ahead of time, along with making smart choices about repairing or replacing, will greatly boost how reliable and long-lasting your steam control systems are.
