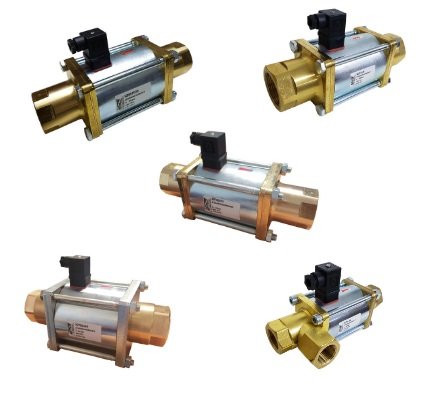

Coaxial Valves — Better Alternatives to Nieruf CV Series
Comparing Nieruf CV01/CV02/CV03 coaxial valves? Solenoid Valve World supplies quality, like-for-like replacements in brass or 304/316L stainless, 2/2 or 3/2, NC/NO, with 24 VDC or 230 VAC coils. We keep popular builds in stock for fast dispatch and offer free UK delivery on qualifying orders.
Why choose Solenoid Valve World
Fast delivery & stock across UK/EU; global shipping available
Like-for-like specs: 2/2 or 3/2, NC/NO, direct-acting
Materials: Brass, 304/316L stainless steel
Voltages: 24 VDC, 230 VAC (others on request)
Engineering support for media, pressure, viscosity, and duty cycle
ISO 9001 & 14001 processes; documentation on request
Typical applications
Vacuum systems • Compressed air • Water & process fluids • Gas service • Systems with counter-pressure • Viscous media (within specified limits)
Spec coverage at a glance
Port sizes / DN: DN10 (1/4-3/4"), DN15 (3/8-1"), DN20 (1/2-11/4"), DN25 (3/4-11/2"), DN32 (1-11/2"), DN40 (11/2) and DN50 (2")
Connections: BSP or NPT (on request)
Functions: 2/2 and 3/2; NC (normally closed) or NO (normally open)
Electrical: 24 VDC, 230 VAC; IP ratings and duty options available
Bodies/Internals: Brass, 304/316L stainless; seal options to suit media
Cross-reference (examples we commonly replace)
CV01000003, CV01000004, CV01000005, CV01000103, CV01000104, CV01000105, CV01001003, CV01001004, CV01001005, CV01001103, CV01001104, CV01001105, CV01010003, CV01010004, CV01010005, CV01010103, CV01010104, CV01010105, CV01011003, CV01011004, CV01011005, CV01011103, CV01011104, CV01011105, CV02000003, CV02000004, CV02000005, CV02000103, CV02000104, CV02000105, CV02001003, CV02001004, CV02001005, CV02001103, CV02001104, CV02001105, CV02010003, CV02010004, CV02010005, CV02010103, CV02010104, CV02010105, CV02011003, CV02011004, CV02011005, CV02011103, CV02011104, CV02011105, CV03000002, CV03000003, CV03000004, CV03000005, CV03000102, CV03000103, CV03000104, CV03000105, CV03001002, CV03001003, CV03001004, CV03001005, CV03001102, CV03001103, CV03001104, CV03001105, CV03010002, CV03010003, CV03010004, CV03010005, CV03010102, CV03010103, CV03010104, CV03010105, CV03011002, CV03011003, CV03011004, CV03011005, CV03011102, CV03011103, CV03011104, CV03011105
(If your code isn’t listed, send it and we’ll map it 1:1.)
How to match a Nieruf coaxial valve to our alternative
- Function: 2/2 or 3/2; NC or NO
- Size/connection: DN and thread (e.g., DN15, 1/2" BSP)
- Voltage & duty: 24 VDC vs 230 VAC; duty/ambient
- Media & seals: water, air, gas, viscous fluids; seal material
- Pressure & temperature: operating range, any counter-pressure
FAQs
Are these direct replacements for Nieruf CV01/CV02/CV03?
Yes. We supply like-for-like builds (2/2 or 3/2; NC/NO; brass or stainless; 24 VDC/230 VAC). We’ll verify pressure, media and duty before quoting.
Do you offer NO and NC versions?
Both. Tell us your fail-safe state and we’ll specify NO or NC to suit the application.
What about lead times?
Many popular configurations are stocked for rapid dispatch. If a custom build is needed, we’ll confirm a firm lead time before you order.
Can you help with viscous media or counter-pressure?
Yes. Coaxial valves are well-suited to these conditions. Share viscosity, pressure, temperature and cycle rate; we’ll recommend the best seat/seal combination.
Do you provide documentation?
Yes — drawings, datasheets, Certificates of Conformity, and other documentation aligned to our ISO 9001/14001 systems.
Call to action
Send your Nieruf CV code and application details. We’ll quote a like-for-like or an upgraded alternative — often with faster delivery and better value.
