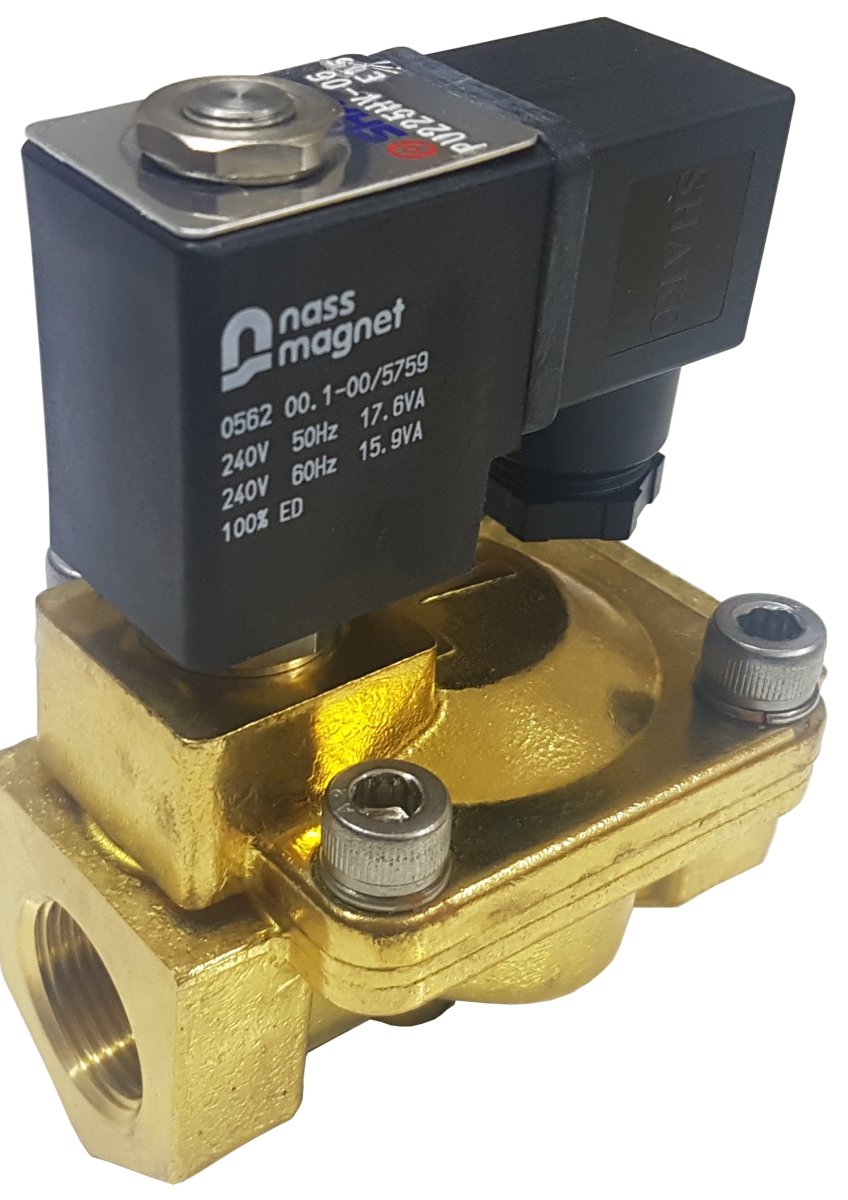

Shako PU225H High-Pressure Solenoid Valve – 2/2 Way, 0.5–25 Bar
PU225H Overview
The Shako PU225H is a high-performance 2/2-way solenoid valve engineered for demanding industrial applications requiring reliable control of fluids and gases under high pressure. Designed to operate within a pressure range of 0.5 to 25 bar, this valve is ideal for systems where both durability and precision are paramount.
Key Features
High-Pressure Capability: Operates efficiently within a pressure range of 0.5 to 25 bar, making it suitable for various industrial applications.
Versatile Configurations: Available in both Normally Closed (PU225H) and Normally Open (PU225HN) configurations to meet diverse system requirements.
Robust Construction: Features a brass body with stainless steel internals, including a stainless steel stem, ensuring exceptional durability and resistance to corrosion.
Seal Options: Equipped with nylon-reinforced elastomer seals available in NBR, EPDM, HNBR or Viton, providing compatibility with a wide range of media.
Port Sizes and Connections: Offered in port sizes of 3/8", 1/2", 3/4", and 1" with BSP or NPT threading, accommodating various piping systems.
Voltage Options: Compatible with multiple voltage inputs, including 12VDC, 24VDC, 24VAC, 110VAC, and 230VAC, enhancing its adaptability to different electrical systems.
Coil Variants: Available with standard DIN43650A coils or ATEX EExmIIT4 certified coils for use in hazardous environments.
Optimised Orifice Sizes: Designed with reduced orifice sizes (8mm for 3/8" and 1/2" valves; 13mm for 3/4" and 1" valves) to limit the downward force of high-pressure fluids, thereby enhancing operational stability.
Quick Response Time: Engineered for rapid actuation, ensuring efficient system performance.
Applications
The Shako PU225H solenoid valve is suitable for controlling the flow of various media, including:
Air
Water
Oil
Non Aggressive Gases
Its high-pressure handling capability and robust design make it ideal for use in industries such as manufacturing, chemical processing, and water treatment.

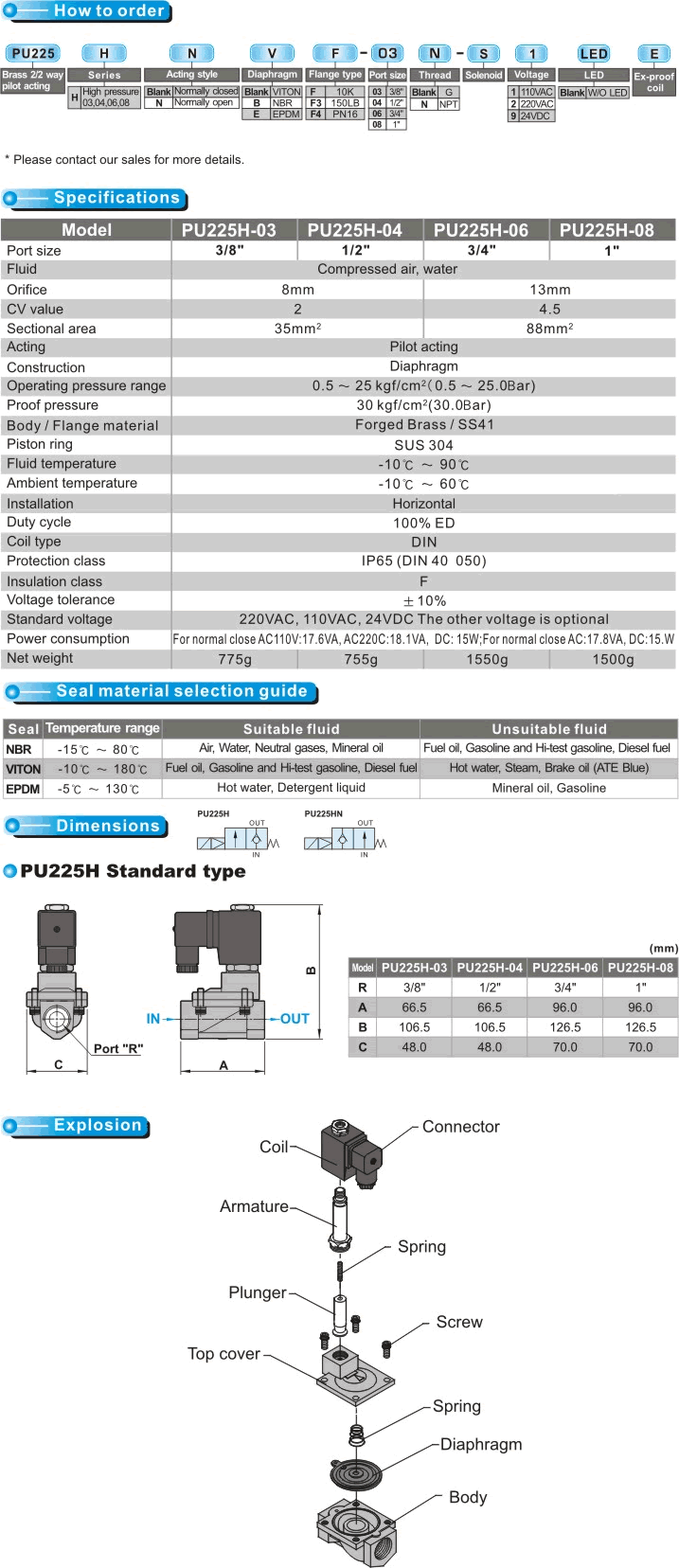

Technical Specifications
Valve Type: 2/2 Way Solenoid Valve
Operation: Pilot-Operated
Pressure Range: 0.5 to 25 bar
Test Pressure: 30 bar
Body Material: Brass
Seal Materials: NBR, EPDM, HNBR, Viton (nylon-reinforced)
Port Sizes: 3/8", 1/2", 3/4", 1"
Thread Types: BSP, NPT
Voltage Options: 12VDC, 24VDC, 24VAC, 110VAC, 230VAC
Coil Options: DIN43650A, ATEX EExmIIT4
Orifice Sizes: 8mm (3/8", 1/2"); 13mm (3/4", 1")
Product Variants
2/2 Normally Closed
2/2 Normally Open
Additional Accessories
Seal Kits: Available for maintenance and repair, including options for NBR, EPDM, and Viton seals.
Timers: Optional timers for setting on/off cycles, enhancing automation capabilities.
Why Choose the Shako PU225H?
The Shako PU225H solenoid valve combines high-pressure performance, reduced noise elastomer sealing, reliable operation, making it a preferred choice for engineers and system designers. Its versatile configurations, robust construction, and compatibility with various media ensure that it meets the stringent demands of modern industrial applications.
Order Now
Experience the reliability and efficiency of the Shako PU225H solenoid valve in your high-pressure applications. Contact us today to place your order or to learn more about how this valve can meet your system requirements.
