Fast-Acting WRAS Motor Actuated Ball Valves Now Available
Cut Response Times with 2-Second Actuated Ball Valves
Industrial and commercial water systems now have a faster, more reliable solution with the launch of the ABVM-2SEC and ABV-2SEC-MO-E2 WRAS approved motor actuated ball valves. These robust valves, manufactured with stainless steel construction and PTFE + EPDM seals, ensure precision control, excellent flow, and compliance for potable water applications.
Key Features of the ABVM-2SEC Series Ball Valves
Ultra-Fast Operation: 2-Second Open/Close Time
Designed for installations requiring rapid valve actuation, the ABVM-2SEC range operates fully in just 2 seconds with consistent performance across 1/4” to 1” BSP ports.
WRAS Approved for Water Applications
Certified under WRAS Certificate No. 2010303, the ABVM-2SEC is safe for use in potable water systems across residential, commercial, and industrial sectors.
Technical Highlights
Voltage: 9–24V AC/DC
Media: Water
Pressure Rating: 0–10 Bar
Temperature Range: -15°C to +100°C
Construction: 304 Stainless Steel Body
Duty Cycle: 100% (100,000 cycles tested)
Mounting Orientation: Any (except upside down)
Sealing: WRAS approved EPDM + PTFE
Download the technical data sheet

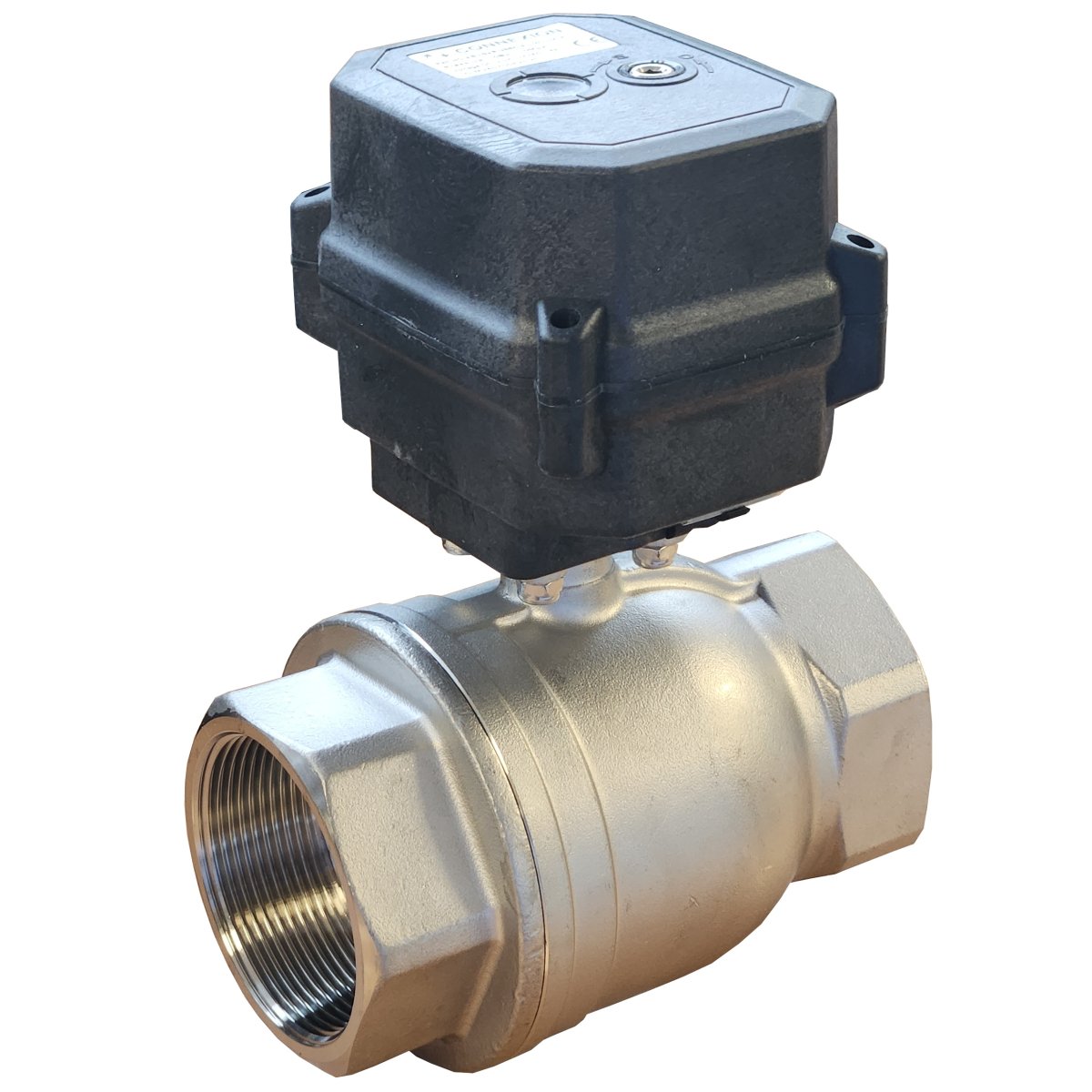

ABV-2SEC-MO-E2: Fail-Safe Motorised WRAS Ball Valve with Feedback
For larger applications requiring sizes up to 2” BSP, the ABV-2SEC-MO-E2 offers enhanced safety and control, featuring fail-safe power-off actuation, position feedback, and WRAS certification (2012107).
Built-In Fail-Safe Operation
The ABV-E2-MO is fitted with Farah capacitor energy storage. This enables automatic return to the default position during power loss—ideal for safety-critical systems.
Features at a Glance
Open/Close Time: 1–2 seconds
Sizes: 1¼”, 1½”, 2” BSP
Fail-Safe: Power-off return to default (NO/NC options)
Voltage: 12–24V DC
Torque Output: Up to 26 Nm
Seals: PTFE + EPDM
Enclosure Rating: IP68
Cycle Life: 70,000 operations
Position Feedback: Volt-free switches included
Download the technical data sheet
Side-by-Side Comparison: ABVM vs ABV
| Feature | ABVM-2SEC | ABV-2SEC-MO-E2 |
|---|---|---|
| Size Range | ¼” – 1” BSP | 1¼” – 2” BSP |
| Open/Close Time | 2 Seconds | 1–2 Seconds |
| WRAS Approved | Certificate 2010303 | Certificate 2012107 |
| Fail-Safe Option | Not Available | with Farah capacitor |
| Torque | 2 Nm | Up to 26 Nm |
| Duty Cycle | 100% | 100% |
| Position Feedback | Optional | Included |
| Enclosure Rating | IP67 | IP68 |
Applications & Industries
These motorised WRAS approved ball valves are ideal for:
Potable water systems
Building automation
Leak detection shutdown
HVAC
Rainwater harvesting
Irrigation
Smart plumbing controls
Order Today for Fast Delivery With a combination of precision, speed, and safety, the ABVM-2SEC and ABV-2SEC-MO-E2 are leading choices for WRAS compliant motorised valves in 2025. Request a quote today or contact us to learn more about stock availability and technical integration.
