Brass Solenoid Valves - 2/2 Normally Closed

Brass 2/2 normally closed solenoid valves are designed to remain closed when de-energised and open when electrical power is applied, providing reliable on/off control of fluids and gases. These electrically operated valves are widely used across industrial, commercial and process systems for controlling water, air, oil, gas and steam. The 2/2 configuration (two ports, two positions) ensures simple and efficient flow control, while the normally closed (NC) design provides a fail-safe shut-off in the event of power loss. Key Features: Normally closed operation (energise to open) Durable brass valve bodies BSP threaded connections Suitable for water, air, oil and light gases Fast switching and reliable sealing Wide range of voltages including 12V, 24V, 110V & 230V Typical Applications: Water control systems Air and pneumatic circuits Oil and fuel handling Irrigation systems Industrial automation General fluid shut-off and control All brass 2/2 normally closed solenoid valves are available from UK stock with fast delivery.

Show Sub Categories

Brass 2/2 normally closed pilot operated solenoid valves (also known as pressure assisted solenoid valves) are designed for higher flow applications where system pressure is available to assist valve operation.

Unlike direct acting valves, pilot operated solenoid valves require a minimum pressure differential between inlet and outlet (typically around 0.5 bar) to function correctly.

When energised, the solenoid opens a pilot orifice, allowing system pressure to lift the diaphragm and fully open the valve. This design enables higher flow rates with lower power consumption.

The normally closed (NC) configuration ensures the valve remains shut when de-energised, providing safe and reliable shut-off.

Key Features:
Pilot operated (pressure assisted design)
Normally closed (energise to open)
Suitable for higher flow applications
Durable brass valve bodies
BSP threaded connections
Efficient operation with lower power coils
Available in multiple voltages including 12V, 24V, 110V & 230V
Important Note:

Pilot operated valves require a minimum pressure differential and are not suitable for vacuum or zero-pressure applications. For those applications, use direct acting solenoid valves.

Typical Applications:
Water systems and distribution
HVAC and heating systems
Irrigation systems
Industrial process control
Oil and light fluid handling

All brass pilot operated solenoid valves are available from UK stock with fast delivery.

Brass 2/2 Normally Closed - Pilot Assisted

Brass 2/2 normally closed direct acting solenoid valves (also known as zero rated solenoid valves) are designed to operate from zero pressure, making them ideal for applications where no differential pressure is available.

Unlike pilot-operated valves, direct acting solenoid valves can open fully using only the electromagnetic force of the coil, allowing reliable operation from vacuum conditions up to maximum rated pressure.

The normally closed (NC) design ensures the valve remains shut when de-energised, providing safe shut-off in the event of power loss.

Key Features:
Direct acting (zero pressure operation)
Normally closed (energise to open)
Suitable for vacuum and low-pressure systems
Durable brass construction
BSP threaded connections
Fast response and reliable sealing
Available in multiple voltages including 12V, 24V, 110V & 230V
Typical Applications:
Vacuum systems
Low-pressure fluid control
Dosing and filling systems
Laboratory and analytical equipment
Water, air and light oil control
General industrial automation

Direct acting brass solenoid valves are ideal where consistent operation is required regardless of system pressure.

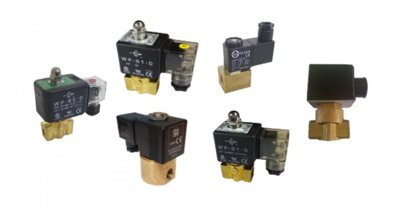

Brass 2/2 Normally Closed - Direct Acting
