Understanding Swing Check Valves: Your System's Silent Guardians
Imagine a one-way street in a busy city. Traffic flows easily in one direction, but trying to go the other way? Forget it. That’s essentially what a swing check valve does in your piping system. It's a straightforward device that acts like a gatekeeper, allowing fluid to move freely in one direction but stopping any backflow.
This "one-way" feature is vital for protecting your system from the problems reverse flow can cause. Keeping on top of regular plumbing maintenance can prevent larger issues, including those that impact valve performance. For more help with this, take a look at this resource on common plumbing problems.
Why Backflow Prevention Matters
Backflow can cause all sorts of headaches: contamination, pressure surges, and even damage to your equipment. Picture a water pump pushing water up to the top of a tall building. If the pump suddenly stops, all that water would try to rush back down. This could seriously damage the pump and other parts of the system.
A swing check valve, placed in the discharge line, acts like a trapdoor, instantly slamming shut and stopping that reverse flow. This seemingly small action can prevent significant repair costs and avoid expensive downtime. For a deeper dive into check valves, you might find this interesting: Check out our guide on check valves.
The Swinging Heart of the Matter
The core part of a swing check valve is its hinged disc. This disc, often circular, swings open and closed on a hinge or pivot. When fluid flows the right way, the pressure pushes the disc open, allowing it to pass through.
But when the flow tries to reverse, the back pressure pushes the disc against the valve seat, creating a seal that stops the backflow in its tracks. This simple mechanism uses the fluid's own energy to ensure reliable and automatic operation. Swing check valves are essential in various UK industries, particularly in the oil and gas sector, where ensuring smooth fluid flow is critical. Further information about the swing check valve market can be found here.
Simple Design, Powerful Protection
The elegance of a swing check valve is its simplicity and effectiveness. Unlike other types of check valves, it doesn’t need any external power or complex controls. Because it works mechanically, it's naturally reliable and inexpensive to maintain.
This "set-it-and-forget-it" design makes the swing check valve a popular choice for many applications, from plumbing in your house to large industrial systems.
How Swing Check Valves Actually Work: The Engineering Behind the Magic

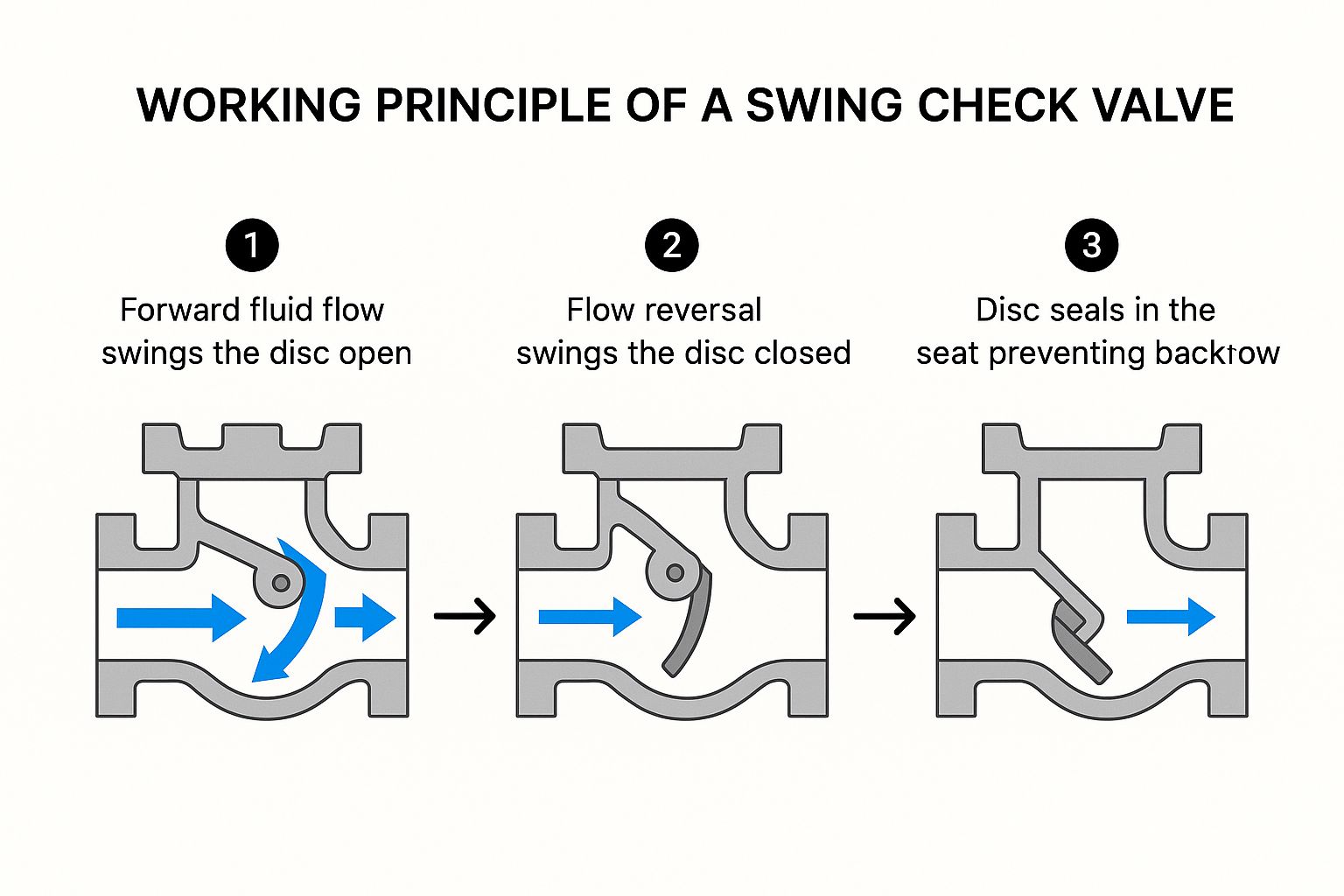

The infographic above gives us a clear view of the three main stages of a swing check valve in action. It shows how the disc interacts with the flow, both going forward and backward. The elegance of the swing check valve lies in its simplicity.
Forward flow pushes the disc open, letting the fluid through. When the flow reverses, the disc swings shut, stopping any backflow. This automatic response is what makes these valves so useful.
Cracking Pressure: The First Step in the Dance
Cracking pressure is the minimum upstream pressure required to start opening the valve's disc. Think of it like nudging a swing to get it moving.
This value is important because if the system pressure is too low, the valve might not open fully. This can restrict flow and possibly cause other issues down the line.
Flow Coefficient (Cv): Measuring the Gracefulness of the Swing
The flow coefficient (Cv) tells us how much fluid can pass through the valve at a given pressure drop. A higher Cv means less resistance to flow.
Imagine a ballerina's graceful, fluid movements compared to someone moving in a more restricted, jerky way. The right Cv ensures your system works efficiently without losing pressure unnecessarily.
The Disc and Seat: A Perfectly Choreographed Partnership
At the heart of a swing check valve is the partnership between the disc and the seat. The disc, swinging on its hinge, acts like a gate. The seat is the precisely machined surface the disc closes against, creating a seal.
This tight fit is essential. It prevents leaks and ensures the valve reliably stops backflow.
Installation Orientation: Setting the Stage for Success
Proper installation is critical. Think about trying to do a ballet upside down! Likewise, a swing check valve needs the correct orientation.
Most swing check valves are designed for horizontal flow, with the hinge on top. Vertical installation is sometimes possible, but it requires careful planning. You need to consider the valve design and the forces involved to ensure the disc swings freely and closes completely. This careful attention prevents costly and potentially damaging backflow.
To help you select the right swing check valve, we've put together a comparison guide. This table summarizes key performance characteristics across different valve sizes and pressure ratings.
Swing Check Valve Performance Comparison Guide Essential operating characteristics across different valve sizes and pressure ratings to guide your selection decisions
| Valve Size | Cracking Pressure | Flow Coefficient (Cv) | Maximum Pressure | Typical Applications |
|---|---|---|---|---|
| 2" | 0.5 psi | 100 | 150 psi | Water supply systems |
| 4" | 1.0 psi | 400 | 200 psi | Wastewater treatment plants |
| 6" | 1.5 psi | 900 | 250 psi | Large industrial pipelines |
| 8" | 2.0 psi | 1600 | 300 psi | Power generation facilities |
Note: These are example values and may vary depending on the specific valve manufacturer and model.
This table illustrates how valve size, cracking pressure, flow coefficient, and maximum pressure are all related. Choosing the right combination of these parameters is crucial for optimal system performance. Consider the specific needs of your application when making your selection.
Materials That Make the Difference: Building Valves for Real-World Challenges
Picking the right material for your swing check valve is a big deal. It’s like choosing the right tool for the job – you wouldn’t use a hammer to tighten a screw, right? The same principle applies here. The conditions your valve will face determine the best material for its construction.
Cast Iron: The Reliable Choice for Water
Cast iron is a popular choice for water systems because it's both tough and budget-friendly. It can easily handle the pressures found in many municipal water applications, making it a workhorse in the industry.
However, even workhorses have their limits. Cast iron is prone to corrosion in certain environments. While it thrives in clean water, it's not the ideal candidate for wastewater or harsh chemical processing.
Stainless Steel: Standing Up to the Tough Stuff
If you need a valve that can laugh in the face of corrosion, stainless steel is your answer. There are different grades available, each tailored to withstand specific chemicals and temperatures.
This versatility makes stainless steel swing check valves suitable for a broad spectrum of applications, from the food industry to chemical plants. While the initial price tag might be higher, the extended lifespan and reduced maintenance often make it a worthwhile investment.
Bronze: Finding the Sweet Spot
Bronze offers a compelling balance between corrosion resistance and cost. It's a common choice for marine applications and systems handling seawater or brackish water, thanks to its ability to resist the corrosive effects of salt.
Bronze also holds up well against wear and tear from abrasive particles. However, it's crucial to choose the right bronze alloy to ensure compatibility with the specific fluid being handled.
Exotic Alloys: For the Extreme Jobs
Sometimes, standard materials just won’t cut it. In truly demanding applications, such as those involving highly corrosive chemicals or extreme temperatures, exotic alloys like Hastelloy or Monel become essential. These materials offer exceptional resilience but come at a higher cost.
They're the specialists you call in for the toughest challenges, ensuring reliable performance even in the most extreme environments. The UK, by the way, is a significant player in the European swing check valve market, which is a part of the larger check valve market. This broader market encompasses various types, including swing, lift, and ball check valves, serving industries like water supply, oil and gas, and wastewater management. For a deeper dive into this market, discover more insights here.
The Big Picture: Considering the Whole Environment
Choosing the right material isn't just about the fluid; it's about the entire operating environment. Factors like temperature fluctuations, chemical exposure, and pressure cycling all play a role in a valve's lifespan.
For example, rapid temperature changes can stress and fatigue some materials. Similarly, corrosive chemicals can degrade a valve over time, leading to premature failure. By understanding these factors, you can choose a material that’s up to the challenge and avoid costly replacements down the road.
Real-World Applications: Where These Valves Prove Their Worth
From the water running through your home to the intricate systems in a power plant, swing check valves quietly work behind the scenes to prevent backflow. Let’s explore how these essential components contribute to a variety of sectors.
Protecting Water Systems: A Municipal Necessity
Water treatment and distribution systems heavily depend on swing check valves. Imagine a water main break down the street. Without a swing check valve, contaminated water could flow back into the clean water supply, creating a significant health hazard. These valves act like a gatekeeper, isolating the contaminated section and protecting public health.
Similarly, in wastewater treatment plants, swing check valves prevent backflow into residential areas, especially during heavy rains when systems can be overloaded. This crucial role keeps our water systems safe and dependable.
Power Generation: Ensuring Smooth Operation
Power plants also rely on swing check valves for uninterrupted operation. In these high-pressure, high-temperature environments, backflow could cause serious damage to turbines and other crucial equipment.
Swing check valves ensure a steady flow of cooling water, preventing costly downtime and ensuring a continuous supply of electricity to the grid. Think of them as traffic cops, directing the flow and preventing any wrong-way drivers.
Marine Applications: Battling the Elements
On ships and offshore platforms, swing check valves face the constant corrosive threat of seawater. Specialized materials, like bronze, are often used in these demanding environments. These valves protect vital systems like ballast and fire suppression systems from the harmful effects of saltwater backflow. This protection is especially critical in emergencies where system failure could have severe consequences.
Industrial Processes: Safeguarding Efficiency
Many industrial processes depend on swing check valves to maintain proper flow and prevent contamination. In chemical processing plants, they make sure chemicals flow in the right direction, preventing unwanted reactions and ensuring product quality. They act like one-way signs on a chemical highway.
In manufacturing, they protect pumps and other equipment from damage caused by backflow. This prevents production delays and keeps the whole process running smoothly.
The Growing Market Reflects the Essential Role
The importance of swing check valves is clear in the growth of the global market. It’s a testament to the vital role these valves play across diverse industries. Recent analyses show substantial expansion in this area. The global swing check valve market, valued at USD 2.5 billion in 2024, is projected to reach USD 4.1 billion by 2033, demonstrating a CAGR of 7.1% from 2026 to 2033. This growth highlights the increasing need for dependable backflow prevention solutions in various industries. For a deeper dive into this trend, check out the full market research here.
Smart Selection Strategies: Finding Your Perfect Valve Match
Choosing the right swing check valve isn't like grabbing a pair of shoes in your size – it's more like finding a good business partner. You need compatibility, a shared understanding, and the ability to work together seamlessly. It's about understanding the nuances of what makes a valve tick and how it'll behave in your specific system.
Beyond the Basics: A Deeper Dive into Selection
Matching pipe size is just the first step. Think of it as introducing two potential partners – they might look good on paper, but will they actually get along? Experienced engineers look beyond the surface, starting with flow velocity requirements. A valve too small restricts flow, like a congested highway. One too large might not close completely, leading to backflow and inefficiency – imagine a revolving door that doesn't quite seal.
Then there's the matter of pressure ratings. The valve needs to withstand the system's maximum pressure, including any unexpected surges. Think of it as stress-testing a relationship – can it handle the pressure? Ignoring this could lead to a catastrophic breakup – or worse, a system failure. Swing check valves are frequently found in residential plumbing systems. For those in the plumbing trade, digital marketing for plumbers can help grow your business.
Just as important are the fluid characteristics. Is the fluid corrosive, like a jealous ex? Does it contain suspended solids, like baggage from past relationships? These factors influence material selection and valve design. Choosing the wrong material is like wearing a silk suit to a mud wrestling match – it won't last.
Finally, space constraints matter. Does the valve have enough room to operate? Can you access it for maintenance? Consider this the living arrangements of your valve – cramped quarters can lead to friction and difficulty down the road.
Deciphering Data Sheets: A Specifier's Secret Weapon
Manufacturer data sheets may not be thrilling, but they are crucial. They're like a pre-nuptial agreement, outlining the capabilities and limitations of the valve. They're packed with vital information, including flow coefficients, pressure ratings, and material specifications.
Learning to interpret these data sheets is like becoming fluent in a new language – it unlocks a deeper understanding of the valve's potential. This knowledge empowers you to make informed decisions and avoid costly mismatches.
The Art of Asking Questions: Collaboration with Suppliers
Your valve supplier is your relationship counselor. They have a wealth of knowledge and experience, so tap into it! Don't hesitate to ask questions and discuss your specific needs. A good supplier can offer personalized advice and help you navigate the complex world of valve selection. For a more detailed guide, you can check out our guide on valve selection.
Balancing Act: Performance, Cost, and Reliability
Choosing a swing check valve is about balancing competing priorities – performance, cost, and reliability. High performance can come with a hefty price tag. But sometimes, investing more upfront in a reliable valve saves you money in the long run.
Experienced engineers understand this balancing act. They look beyond the initial cost and consider the total cost of ownership, including maintenance and potential downtime. This long-term perspective results in smarter choices and a more efficient system.
To help you navigate this process, we've created a decision matrix to guide your valve selection.
Introducing the Swing Check Valve Selection Decision Matrix: This strategic guide matches optimal valve characteristics to your system's specific requirements and operating conditions.
| Application Type | Recommended Material | End Connection | Pressure Rating | Special Considerations |
|---|---|---|---|---|
| Water Supply Systems | Brass or Bronze | Threaded or Flanged | 150 PSI | Consider lead-free options for potable water |
| Wastewater Systems | Cast Iron or Stainless Steel | Flanged | 200 PSI | Corrosion resistance is key |
| HVAC Systems | Bronze or Brass | Threaded or Sweat | 125 PSI | Temperature compatibility is crucial |
| Chemical Processing | Stainless Steel or PVC | Flanged | Varies | Chemical compatibility and corrosion resistance are paramount |
| High-Pressure Steam | Forged Steel | Flanged | 600 PSI and higher | High-temperature resistance is critical |
This table provides a starting point. Remember to consult with your supplier and refer to manufacturer data sheets for detailed specifications. Choosing the right swing check valve is a journey, not a destination, but with the right information, you can find the perfect match for your system.
Installation Secrets: Setting Up for Long-Term Success
Even the highest-quality swing check valve will underperform if not installed correctly. Think of it like installing a top-of-the-line deadbolt on a flimsy door – the lock is great, but the entire setup is compromised. Proper installation is essential for reliable, long-term operation.
Flow Direction: Getting it Right from the Start
Imagine a one-way street sign facing the wrong direction – instant confusion! Similarly, incorrect flow direction is a common mistake when installing swing check valves. The valve body is clearly marked with an arrow indicating the intended flow direction. Ignoring this marking will prevent the disc from opening correctly, restricting flow and potentially damaging the valve. Always double-check this flow arrow before finalizing the installation.
Clearances and Supports: Avoiding Stress and Strain
Just as a tightrope walker needs proper tension and support, your swing check valve requires adequate upstream and downstream clearances. Insufficient space can restrict the disc's movement, reducing flow efficiency and leading to premature wear and tear. Always consult the manufacturer's guidelines for minimum clearance distances.
Proper support is equally crucial. Think of a wobbly shelf – it won't hold much weight. Similarly, a poorly supported swing check valve, especially a larger one in a high-pressure system, can experience excessive stress. Proper supports, such as pipe hangers or brackets, distribute the weight evenly and prevent damage. For related information on valve installation, check out our guide on Solenoid Valve Installations and Maintenance Instructions.
Accessibility for Maintenance: Planning for the Future
Installing a swing check valve in a hard-to-reach location is like burying a treasure without marking the spot on a map. Future maintenance becomes a nightmare. Always consider accessibility when planning the installation location. Make sure there's enough space around the valve for inspection, cleaning, and potential repairs.
Warning Signs: Catching Problems Early
Just as a doctor checks vital signs, regular inspection of your newly installed swing check valve is essential. Listen for unusual noises or vibrations and monitor for unexpected pressure drops. These can be early indicators of installation issues. Addressing these problems quickly can prevent them from becoming major headaches down the road. Early detection saves time and money.
Learning from Mistakes: Real-World Examples
Consider the case of a contractor who installed a large swing check valve backwards in a critical cooling water line. The result was restricted flow, overheating, and a costly plant shutdown. In another instance, a poorly supported valve cracked under pressure, flooding a basement and causing significant water damage. These real-world examples underscore the importance of correct installation. By learning from these mistakes, we can avoid similar issues in our own projects.
Maintenance Mastery: Keeping Your Investment Working
A well-maintained swing check valve works quietly in the background, ensuring your systems run smoothly and preventing costly downtime. Think of it as the unsung hero of your fluid control system. But neglecting these critical components can lead to unexpected problems and expensive repairs, much like ignoring a small engine problem can eventually lead to a major breakdown. Proper installation is the first step, and having the right tools at your facility is essential. If you're looking for guidance on warehouse equipment, which often plays a role in valve handling and storage, this resource on essential warehouse equipment is a great place to start.
Recognizing the Early Warning Signs
Just as a doctor checks your vital signs, it's crucial to recognize the early warning signs of a failing swing check valve. Unusual sounds, like chattering or banging, could indicate a loose disc or worn hinge. A sudden drop in system pressure might suggest the valve isn't opening fully or that it's leaking. And vibrations in the pipeline could point to excessive wear and tear. Catching these small clues early can prevent bigger problems down the line.
Developing a Proactive Maintenance Schedule
Preventative maintenance is the key to a long and healthy life for your swing check valves. Regular inspections, scheduled according to the valve’s operating conditions and how important it is to your system, are vital. Think of it like scheduling regular dental checkups – small interventions can prevent major issues later. These inspections should include checking for visible external damage, listening for unusual noises, and making sure the valve is operating correctly.
Performing Routine Maintenance Tasks
Simple routine maintenance, like cleaning and lubrication, can dramatically extend the lifespan of a swing check valve. Cleaning removes debris and build-up that can interfere with the disc's movement, much like cleaning a clogged drain allows water to flow freely again. Lubrication ensures smooth operation and reduces wear on moving parts, similar to how oil keeps your car engine running smoothly. These seemingly small actions can prevent major headaches and save you money in the long run.
Troubleshooting Common Issues
When problems do arise, knowing how to troubleshoot effectively is important. Start by isolating the valve and giving it a thorough inspection. Check the disc for damage or wear, the hinge for looseness, and make sure the seat is sealing properly. If the disc is damaged or worn, it might need replacing. A loose hinge can often be tightened. And a damaged seat may require machining or replacement.
Repair vs. Replacement: Making Informed Decisions
Sometimes, repairing a swing check valve is the most economical solution. But other times, replacing the entire valve makes more sense. Factors to consider include the extent of the damage, the age of the valve, and the cost of repairs compared to the price of a new valve. Think of it like deciding whether to repair an old appliance or buy a new one – sometimes, a fresh start is the best option.
Building a Sustainable Maintenance Program
A well-structured maintenance program includes detailed inspection checklists, clear procedures for routine tasks, and a system for tracking repairs and replacements. This documentation offers valuable insights into valve performance and helps identify potential issues before they develop. By implementing these strategies, you transform your swing check valves from potential liabilities into dependable assets.
