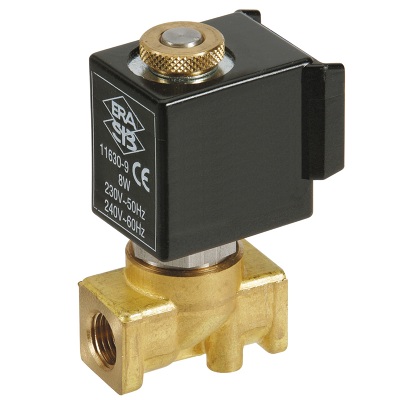

1/8, 1/4 & 3/8 Inch Brass Direct Acting Solenoid Valve – 2/2 Way NC
The ERA-SIBl 200201 Series is a compact brass direct acting solenoid valve designed for reliable control of vacuum, air, water, light oils, gases and other compatible fluids. Its direct operated poppet design allows operation from zero pressure, making it suitable for both vacuum and high-pressure applications without requiring a minimum pressure differential.
Available with 1/8", 1/4" and 3/8" BSP threaded ports, the 200201 Series offers eight orifice sizes from 1.5 mm to 7.5 mm, allowing the valve to be selected for applications requiring either precise flow control or higher flow capacity. Working pressures of up to 30 Bar are achieved depending on the selected orifice size, coil and operating voltage.
Manufactured with a forged brass body, stainless steel internal components and FKM seals as standard, the valve is supplied with an IP65 Class F continuous duty coil and DIN connector. Optional NBR or EPDM seals, NPT threads and ATEX explosion-proof coils make the range suitable for a wide variety of industrial and OEM applications.
Features & Benefits
✓ Direct acting poppet valve
✓ Zero pressure operation
✓ Suitable for vacuum applications
✓ Working pressures up to 30 Bar
✓ Eight orifice sizes from 1.5 mm to 7.5 mm
✓ Compact brass body
✓ Stainless steel internal components
✓ FKM seals fitted as standard
✓ Optional NBR or EPDM seals
✓ Class F 100% duty rated coils
✓ IP65 DIN43650A connector supplied
✓ Optional BSP or NPT threads
✓ Optional ATEX Ex d IIC T4 or T6 explosion-proof coil
Valve Specification
Function: 2/2 Way Normally Closed (Power to Open)
Operation: Direct acting poppet
Port Sizes:
1/8", 1/4" or 3/8" BSP
(Optional NPT)
Orifice Sizes:
1.5 mm
2.0 mm
2.5 mm
3.5 mm
4.5 mm
5.2 mm
6.0 mm
7.5 mm
Flow Factor (Kv): 1.2–15 L/min
Working Pressure: 0–30 Bar
(Dependent upon orifice size, coil power and voltage)
Maximum Media Viscosity: 40 cSt
Mounting Position: Any position.
Construction
Body: Forged brass
Internal Parts: Stainless steel
Seal Materials: FKM (Standard)
EPDM (Optional)
NBR (Optional)
Electrical Connection: DIN43650A
IP65 connector included.
Coil Specification
Standard Coils:
11630
10 Watt DC
Class F
100% duty rated
31400
14 VA AC holding
20 VA AC inrush
Class F
100% duty rated
Protection: IP65 with DIN43650A connector
Available Voltages:
12VDC
24VDC
48VDC
24VAC
48VAC
110VAC
230VAC.
Hazardous Area Option
Optional explosion-proof coil available:
ATEX Ex d IIC T4
ATEX Ex d IIC T6
Suitable for hazardous area installations requiring explosion-proof electrical protection.
Media Compatibility
Suitable for:
Vacuum
Air
Water
Light oils
Gases
Compatible fluids below 40 cSt viscosity
Media must be compatible with the selected seal material.
Pressure:
0.02 Bar (20 mBar), 0.1 Bar (100 mBar), 0.2 Bar (200 mBar), 0.3 Bar (300 mBar), 0.4 Bar (400 mBar), 0.5 Bar (500 mBar), 0.6 Bar (600 mbar), 0.7 Bar (700 mBar), 0.8 Bar (800 mBar), 1 Bar, 1.2 Bar, 1.3 Bar, 1.4 Bar, 1.5 Bar, 1.6 Bar, 2 Bar, 2.5 Bar, 3 Bar, 3.5 Bar, 4 Bar, 4.5 Bar, 5 Bar, 5.5 Bar, 6 Bar, 6.5 Bar, 7 Bar, 7.5 Bar, 8 Bar, 8.5 Bar, 9 Bar, 10 Bar, 12 Bar, 13 Bar, 14 Bar, 15 Bar, 16 Bar, 17 Bar, 18 Bar, 20 Bar, 25 Bar, 30 Bar
