Key Features
✓ 2/2 way normally open operation
✓ Failsafe open design
✓ Shako System 13 armature
✓ Fits 225A, 225D & 225H Series
✓ Brass & stainless steel valve compatible
✓ Converts compatible NC valve to NO
✓ Patented spring-balanced design
✓ Reduced energised coil temperature
✓ 430F stainless steel armature
✓ 304 stainless steel tube
✓ 302 stainless steel spring
✓ M20 × 1mm mounting thread
✓ 14.5mm tube diameter
✓ Copper shading ring standard
✓ DC no-shading-ring option
✓ NBR, EPDM, FKM & HNBR options
✓ WRAS EPDM option
✓ Fits System 13/30 & 13/36 coils
Datasheets
Description

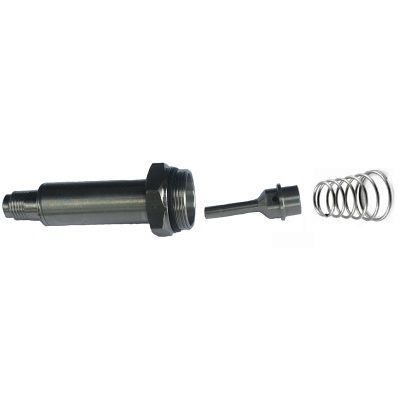

Shako System 13 Normally Open Solenoid Armature Assembly – 225 Series
The Shako System 13 normally open armature assembly is a 2/2 way failsafe-open solenoid operator designed for Shako 225 Series brass and stainless steel solenoid valves and other compatible valves using a System 13, M20 × 1mm mounting.
This second-generation patented Shako design uses a lighter, spring-balanced three-piece stainless steel normally open armature assembly, developed to reduce solenoid coil operating temperature by more than 20°C when energised. Lower coil temperature can help extend coil service life and reduce long-term replacement costs.
Available with a standard copper shading ring for AC and DC operation, or without a shading ring for DC-only applications involving aggressive or corrosive media.
The assembly can also be used to convert compatible 2/2 way normally closed Shako 225 Series solenoid valves to normally open operation.
Function & Operation
Function: 2/2 way normally open
Failsafe Position: Open
Energised Position: Closed
Design: Spring-balanced normally open armature
Generation: Second generation
Construction: Three-piece stainless steel design
In its normal de-energised state, the armature is configured for normally open / failsafe open operation.
When the solenoid coil is energised, the magnetic field moves the armature against the spring mechanism to operate the valve into its closed position.
When electrical power is removed, the spring mechanism returns the valve to its normally open state.
Normally Closed to Normally Open Conversion
A particularly useful feature of this assembly is its ability to convert a compatible Shako 225 Series normally closed solenoid valve into normally open operation.
It fits Shako brass and stainless steel:
✓ 225A Series
✓ 225D Series
✓ 225H Series
It is also suitable for other compatible solenoid valves using the Shako System 13 armature arrangement with an M20 × 1mm mounting thread.
This provides a useful conversion or repair option where the existing valve body and diaphragm assembly remain serviceable.
Construction & Materials
Armature / Plunger: 430F stainless steel
Armature Tube: 304 stainless steel
Spring: 302 stainless steel
Tube Diameter: 14.5mm
Mounting Thread: M20 × 1mm
The stainless steel construction provides a durable internal operator assembly for industrial fluid-control applications.
Seal Options
The normally open armature assembly is available with:
✓ NBR
✓ FKM / Viton
✓ EPDM
✓ HNBR
✓ WRAS approved EPDM
The appropriate seal material should be selected according to the controlled media, operating temperature and required approvals.
Seal Temperature Ranges
NBR
Temperature: -15°C to +80°C
FKM / Viton
Temperature: -10°C to +180°C
EPDM
Temperature: -5°C to +130°C
HNBR
Temperature: -40°C to +150°C
Actual operating temperature remains subject to the complete valve, solenoid coil, controlled media and application conditions.
WRAS EPDM Option
A WRAS approved EPDM seal option is available for compatible potable-water applications.
Where WRAS compliance is required, the complete valve configuration and applicable approval should be checked rather than assuming approval from the replacement armature component alone.
Shading Ring Options
Copper Shading Ring – Standard
The standard armature assembly uses a copper shading ring and is suitable for AC and DC coil voltages.
Without Shading Ring – Aggressive Media
For aggressive or corrosive media where a copper shading ring is undesirable, an armature assembly without a shading ring is available.
This version is for DC coil operation only.
Copper Shading Ring → AC or DC
No Shading Ring → DC only
Why AC Requires the Shading Ring
With an AC solenoid coil, the magnetic field continually varies as the alternating supply passes through each electrical cycle.
The copper shading ring helps maintain sufficient magnetic attraction through the AC zero crossing, reducing armature chatter and helping maintain stable operation.
A DC solenoid does not require this AC shading function, allowing the shading ring to be omitted where required for media compatibility.
System 13 Coil Compatibility
System: Shako System 13
Compatible Coil Sizes: 13/30 and 13/36
Compatible Power Levels: 3, 4 & 5
Tube Diameter: 14.5mm
Mounting Thread: M20 × 1mm
The armature assembly is therefore suitable for compatible Shako System 13/30 and System 13/36 coils in power levels 3, 4 and 5.
Reduced Coil Temperature Design
Shako's second-generation normally open armature uses a lighter spring-balanced design.
This patented design reduces solenoid coil temperature by more than 20°C when energised compared with the previous arrangement.
Reducing continuous coil operating temperature can help:
✓ Extend coil service life
✓ Reduce thermal stress
✓ Improve reliability
✓ Reduce replacement costs
✓ Improve continuously energised operation
Compatible Valve Series
The armature assembly fits genuine Shako brass and stainless steel:
225A Series
225D Series
225H Series
It can also be used with other compatible valves employing the System 13 operator and M20 × 1mm armature mounting.
Compatibility should be confirmed before fitting to non-Shako valves.
Maintenance & Replacement
This assembly can be used for:
✓ Replacing a worn normally open armature
✓ Replacing a damaged armature tube
✓ Changing seal material
✓ Converting compatible NC valves to NO
✓ Corrosive-media DC applications
✓ Valve refurbishment
✓ Preventative maintenance
✓ Existing Shako 225 valve repair
Always isolate the electrical supply, fluid supply and system pressure before dismantling a solenoid valve.
Typical Applications
✓ Shako 225 valve servicing
✓ Normally open fluid control
✓ Failsafe open applications
✓ Water control systems
✓ Industrial fluid systems
✓ Compressed air systems
✓ Process equipment
✓ Corrosive media applications
✓ OEM machinery
✓ Existing valve conversion
Technical Specification
Manufacturer: Shako
Product Type: Solenoid valve armature assembly
System: System 13
Function: 2/2 way normally open
Failsafe Position: Open
Armature Material: 430F stainless steel
Tube Material: 304 stainless steel
Spring Material: 302 stainless steel
Tube Diameter: 14.5mm
Mounting Thread: M20 × 1mm
Standard Shading Ring: Copper
Standard Voltage Compatibility: AC & DC
No Shading Ring Option: DC only
Seal Options: NBR, FKM/Viton, EPDM, HNBR & WRAS EPDM
NBR Temperature: -15°C to +80°C
FKM/Viton Temperature: -10°C to +180°C
EPDM Temperature: -5°C to +130°C
HNBR Temperature: -40°C to +150°C
Compatible Coil Systems: 13/30 & 13/36
Compatible Coil Power Levels: 3, 4 & 5
Compatible Shako Series: 225A, 225D & 225H
NC to NO Conversion: Yes, for compatible valves
Ordering Options
Copper Shading Ring
Standard configuration
Suitable for AC or DC coils
No Shading Ring
For aggressive / corrosive media
DC coil operation only
Then select the required seal material according to the valve media and operating conditions.
Helpful Hint
Not sure whether you need the copper shading ring?
For AC coils, select the standard copper shading ring version.
For DC coils, either version can operate, but the no-shading-ring version is particularly useful where the controlled media is incompatible with copper.
If replacing an existing armature, check the 14.5mm tube diameter and M20 × 1mm mounting thread before ordering.
Why Choose the Shako Normally Open Armature?
Unlike simply replacing a worn operator with the same component, this assembly can also provide a practical means of changing a compatible 225 Series valve from normally closed to normally open operation.
The patented lighter spring-balanced design also addresses one of the disadvantages of normally open solenoid valves: the potentially long periods for which the coil remains energised while holding the valve closed.
With Shako quoting a reduction in energised coil temperature of over 20°C, this is a meaningful design improvement for applications requiring extended energisation.
Related Products & Categories.
Technical Specification
Brand: Shako Co Ltd
Model: 225320NO
Width: 14.60 mm
Height: 22.00 mm
Depth: 58.00 mm
Weight: 0.10 kg
Valve / Product Type: Solenoid Valve
Body Material: Stainless Steel
Function: 2/2 Failsafe Open
Operation: Pressure Assisted from 0.5 Bar
Pressure: 0.5 Bar (500 mBar), 0.6 Bar (600 mbar), 0.7 Bar (700 mBar), 0.8 Bar (800 mBar), 1 Bar, 1.2 Bar, 1.3 Bar, 1.4 Bar, 1.5 Bar, 1.6 Bar, 2 Bar, 2.5 Bar, 3 Bar, 3.5 Bar, 4 Bar, 4.5 Bar, 5 Bar, 5.5 Bar, 6 Bar, 6.5 Bar, 7 Bar, 7.5 Bar, 8 Bar, 8.5 Bar, 9 Bar, 10 Bar, 12 Bar, 13 Bar, 14 Bar, 15 Bar
Seals: EPDM, HNBR, NBR, FKM (Viton)
Approvals:: WRAS
Media: Air, Fluid (Non Aggressive), Gases (Non Aggressive), Oils + Fuels 50cSt Max, Water
Options required: Degreased
Spares (Coils, Connectors, Seals): Armature Assembly
