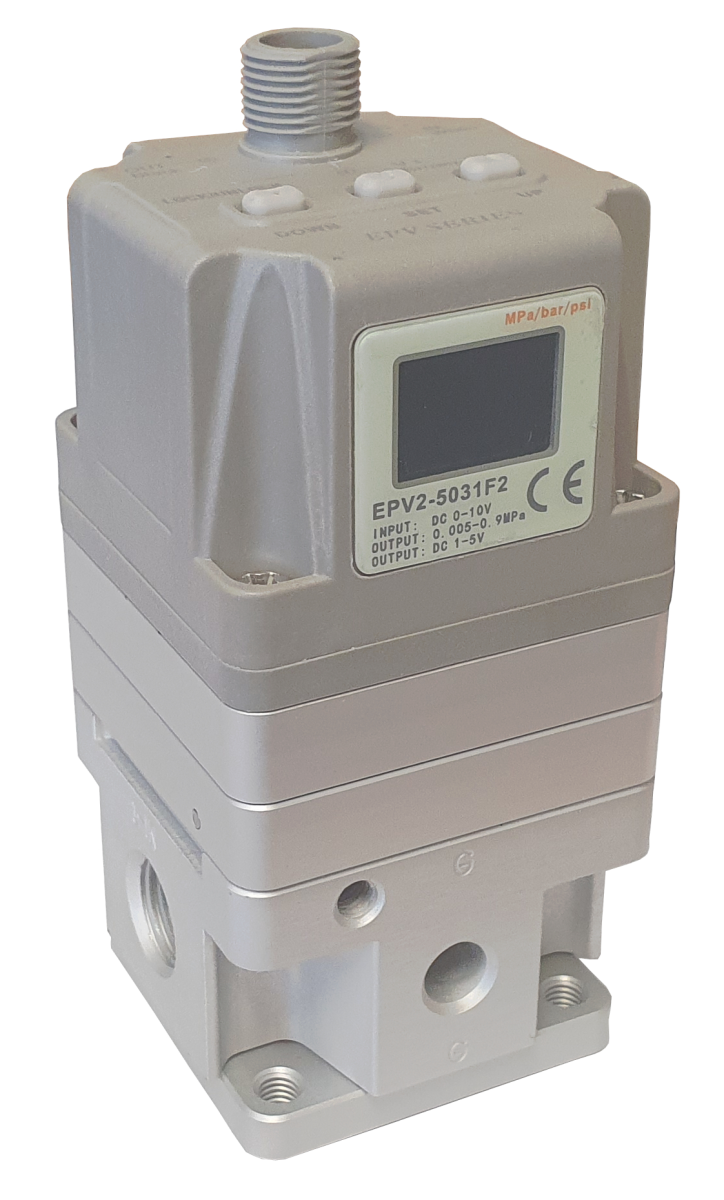

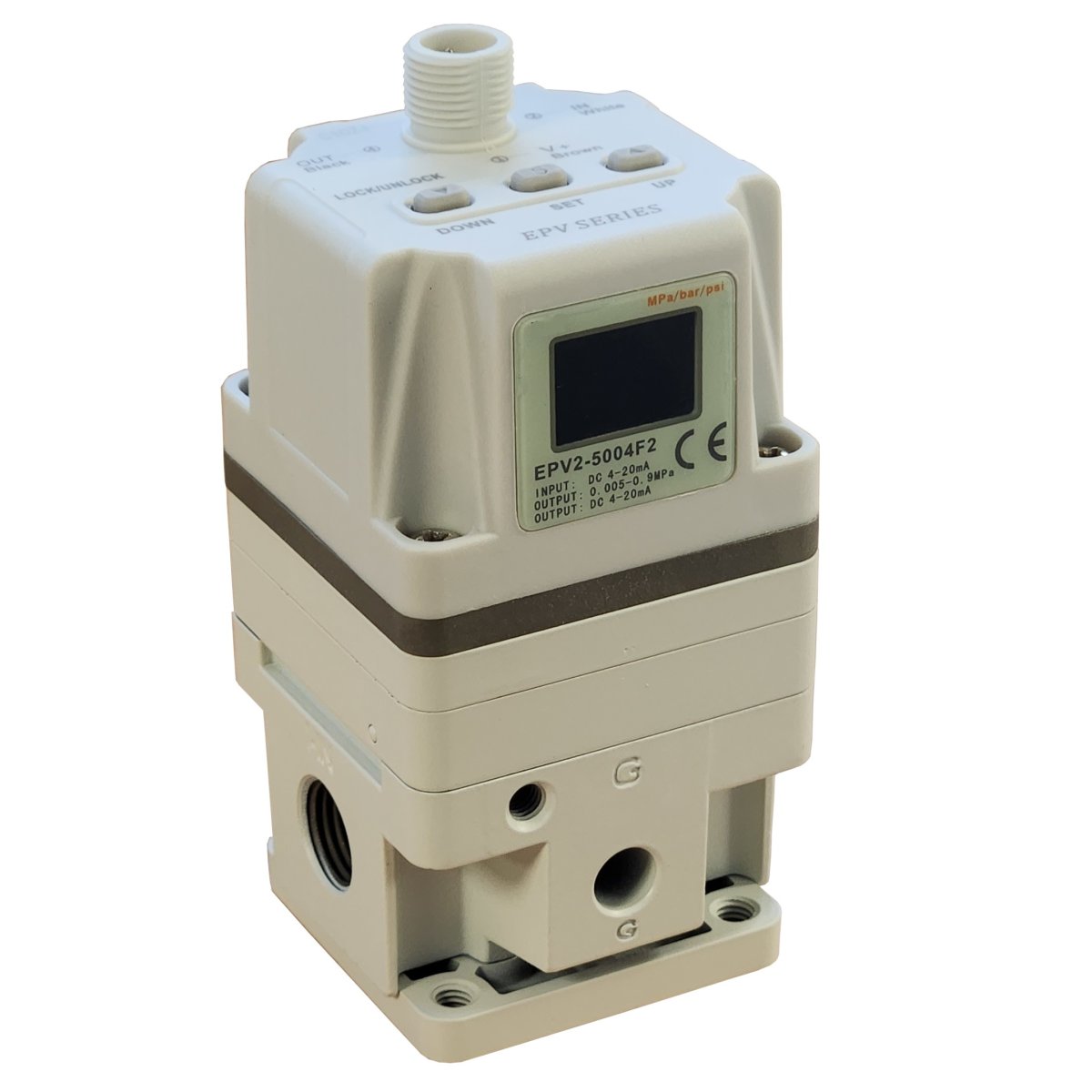

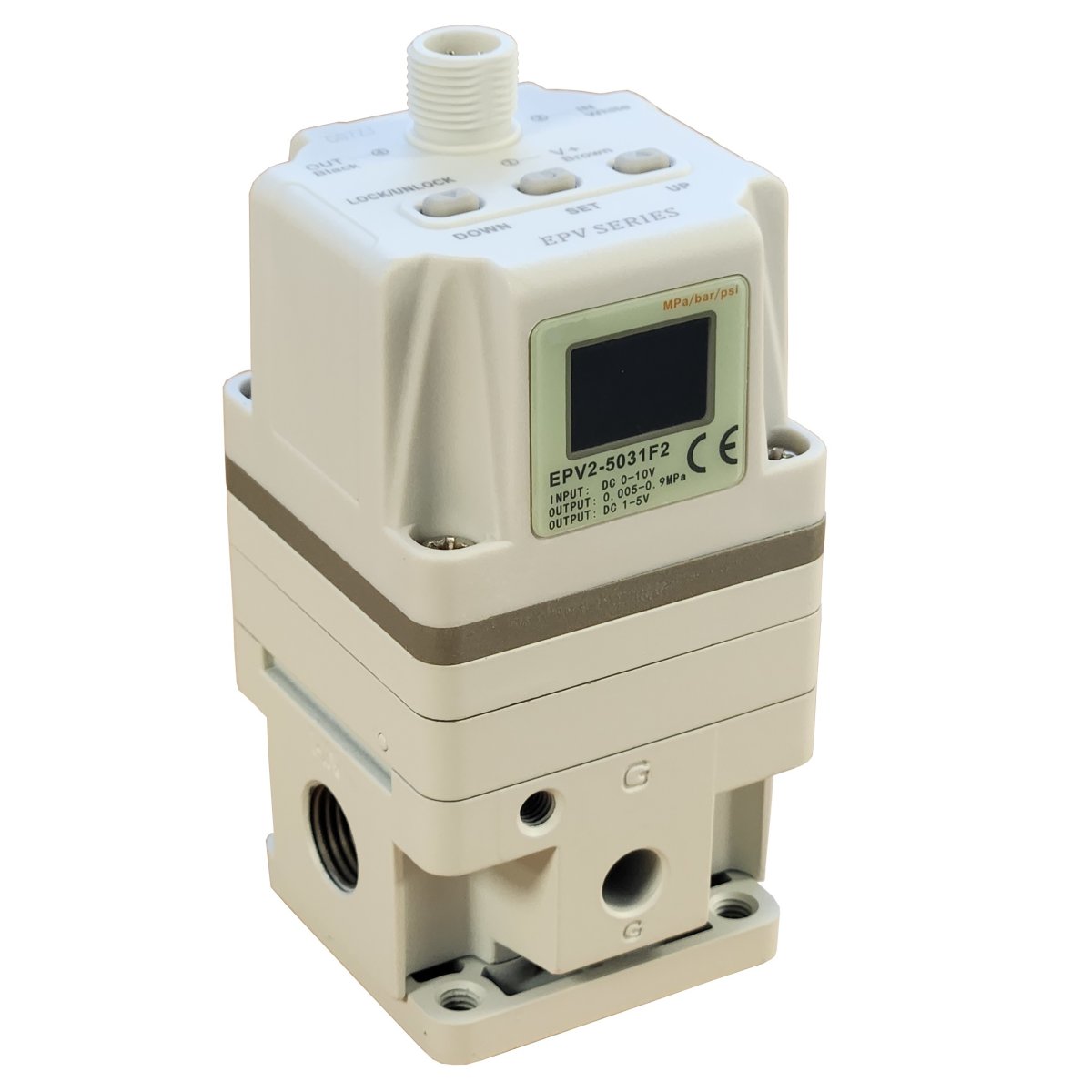

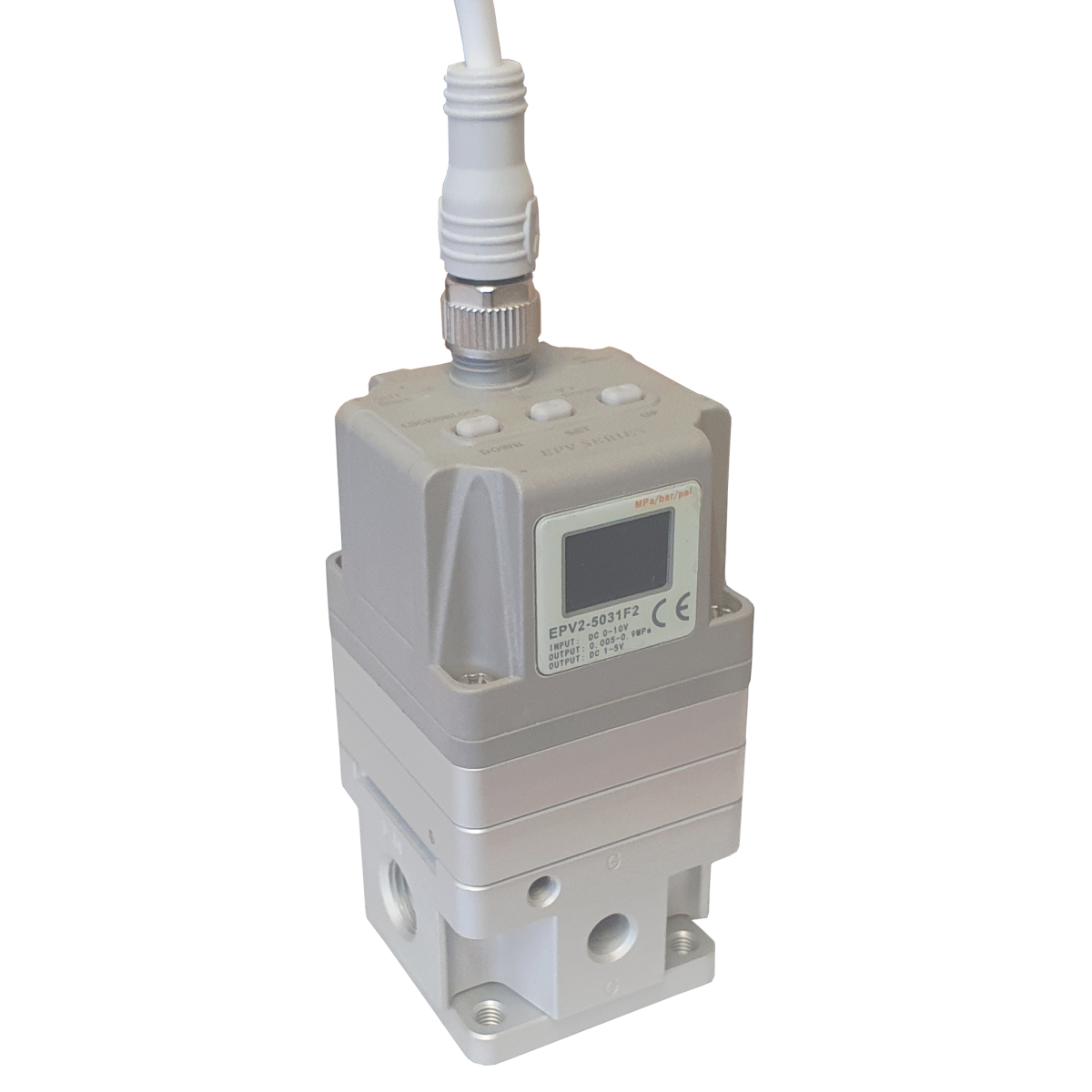

Digital Pressure Regulator (EPV)
The EPV Digital Pressure Regulator offers precise electronic control of air pressure in industrial systems. Engineered for reliability, speed, and fine-tuned proportional output, the EPV is ideal for applications that require accurate, real-time pressure adjustments.
Why Use the EPV Series Proportional Pressure Regulator?
The EPV series combines advanced electronic regulation with a compact form factor. Designed to respond quickly to electrical signals, it ensures stable output pressure in dynamic systems, enhancing productivity and control accuracy.
Key Features of the EPV Digital Pressure Regulator
High-Precision Proportional Control
Maintains stable output pressure with fast response times for consistent system performance.
Compact and Lightweight Design
Easily integrates into confined or mobile systems where space is limited.
Low Power Consumption
Efficient design supports continuous operation without excessive energy usage.
Excellent Repeatability and Sensitivity
Ensures accurate pressure modulation for delicate or high-speed applications.
Easy Integration
Available with analogue (0–10V / 4–20mA) or digital input signals for compatibility with PLCs, controllers, and industrial networks.
Technical Specifications
Pressure Range: 0–0.1 MPa to 0–1.0 MPa (model-dependent)
Input Signal: 0–5V / 0–10V / 4–20mA
Output Pressure Accuracy: ±0.5% F.S.
Response Time: ≤50ms
Port Sizes: M5, 1/8", or custom
Supply Voltage: 24VDC
Ambient Temperature: 0°C to 50°C
Mounting Options: DIN rail or panel mount
Applications
The EPV digital pressure regulator is ideal for:
Robotics and automated machinery
Semiconductor equipment
Test benches and calibration rigs
Pneumatic control systems
Precision manufacturing and laser cutting
Medical device manufacturing
Available Models
EPV-01: Ultra-low pressure, high sensitivity
EPV-02: Mid-range pressure control
EPV-03: High-output pressure model
EPV-N: Negative pressure or vacuum regulation
EPV-C: Cleanroom and low-contamination use
All models feature consistent performance, fast signal response, and minimal air consumption.
Order the EPV Regulator Online Today
Take control of your system's pressure with the EPV Digital Pressure Regulator. Browse available models and order directly from our online store. Enjoy fast shipping, expert support, and reliable performance with every purchase.
