1/8 BSP Aluminium Solenoid Valve with Manual Override – AM200-01
Direct Acting Solenoid Valve with Manual Override

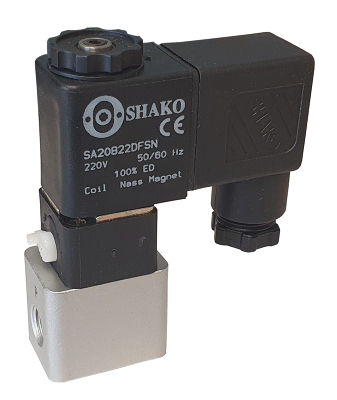

The Shako AM200-01 is a compact 2/2 way normally closed direct acting solenoid valve featuring an integral manual override for convenient manual operation during installation, commissioning and maintenance.
The direct acting design operates from 0 Bar differential pressure, making it suitable for compressed air, vacuum and low-pressure applications where a pressure-assisted valve may not operate reliably.
Direct Acting Operation
Function: 2/2 way normally closed
Operation: Direct acting
Manual Override: Included
Port: 1/8 BSP
Optional Thread: NPT
Minimum Pressure: 0 Bar
Maximum Pressure AC: 8.5 Bar
Maximum Pressure DC: 7 Bar
Port & Flow
Port Size: 1/8 BSP
Orifice: 1.8mm
Flow Factor: 1.4 L/min
Kv: 0.08 m³/hr
The datasheet actually gives us both figures: Kv 0.08 m³/hr and Cv 1.4 L/min.
Construction
Body: Anodised aluminium
Tube & Internal Components: Stainless steel
Standard Seals: NBR
Optional Seals: EPDM or FKM / Viton
Coil: Resin moulded
Weight Including Coil: 150g
The compact valve can be mounted in any position.
Media & Temperature
Suitable Media: Air, water, gas, light oil and vacuum
Maximum Media Viscosity: 40 cSt
Ambient Temperature: -10°C to +50°C
Standard NBR Maximum Media Temperature: +60°C
Coil & Electrical
Coil Power DC: 4.5 Watts
AC Inrush: 7.6 VA
AC Holding: 6 VA
Duty Rating: 100%
Insulation: Class F 155°C
Protection: IP65 with connector
Electrical Connection: DIN 43650
Standard Voltages: 12V DC, 24V DC, 110V DC, 24V AC, 110V AC and 230V AC
ATEX Explosion-Protected Coil Option
An ATEX-certified encapsulated solenoid coil is available for installation in potentially explosive gas and dust atmospheres.
✓ ATEX Category: II 2G / II 2D
✓ Gas Protection: Ex mb IIC T4 Gb
✓ Dust Protection: Ex mb tb IIIC T130°C Db
✓ Gas Group: IIC
✓ Dust Group: IIIC
✓ Temperature Class: T4
✓ Maximum Surface Temperature: T130°C
✓ Suitable for Zone 1 gas applications
✓ Suitable for Zone 21 dust applications
✓ IP65 Protection
✓ Class F Insulation
✓ Encapsulated Solenoid Coil
✓ ATEX & IECEx Certified Coil Options
Manual Override
The integral manual override allows the valve to be operated without electrically energising the coil, useful during system setup, testing, commissioning and maintenance.
Typical Applications
Ideal for pneumatic automation, compressed-air systems, vacuum equipment, machinery, test equipment and general industrial fluid control requiring a compact direct acting valve with manual override.
