Port Size

3/8 Flange DN10

1/2 inch Flange DN15

3/4 Flange DN20

1 inch Flange DN25

11/4 inch Flange DN32

11/2 inch Flange DN40

2 inch Flange DN50

21/2 inch Flange DN65

3 inch Flange DN80

4 inch Flange DN100

Media

Body Material

Brass

Bronze

Cast Iron

Function

2/2 Normally Closed

2 ports (inlet/outlet) with 2 positions (Open/Closed) - valve stays closed (Failsafe) requires power to open

2/2 Normally Open

2 ports (inlet/outlet) with 2 positions (Open/Closed) - valve stays open (Failsafe) requires power to close

Pressure Maximum

Seals

EPDM

EPDM (Ethylene Propylene Diene Monomer) - known as Ethylene Propylene terpolymer, Buna-AP, Dutral, Polysar-EDM, Royalene, Vistalon, Keltan, Epcar, Nordel or Epsyn). Good for hot and drinking water, Steam, Freon refrigerant gas and Air -40°C to +120°C (+150°C steam) Poor resistance to oils + fuels

FKM (Viton)

FKM Fluoro elastomer (Fluorocarbon) Viton® Dupont registered, known as Tecnoflon, Fluorel, Dai-El. Good for hot water, acid, alkali, oils, hydrocarbons and salt solutions, many aggressive chemicals, diluted acids, weak alkali's, mineral oils, aliphatic and aromatic hydrocarbons, chlorinated hydrocarbons, sunlight and ozone. -26°C to +205°C. Poor resistance to Ketone's and Acetone.

HNBR

HNBR (Hydrogenated Nitrile Butadine Rubber) also known as Therban, Zetpol or Tornac). Good for motor oils, sour gas, amine oil mixtures, oxidised fuels, lubricating oils, mineral based hydraulic oil, animal and vegetable oil, diesel fuel, ozone, dilute acids and bases, new bio-oils, H2S Hydrogen Sulphide and C02 carbon dioxide. -40°C to +150°C. Poor for concentrated alkali's, esters, alkyl phosphate, ethers, halogenated solvents, ketone's, halogenated hydrocarbons, solvents and flames.

Hypalon

Hypalon is a chlorosulfonated polyethylene (CSPE) synthetic rubber (CSM). Good for chemicals, ozone, ultraviolet light, oxidising agents, hot water, corrosive chemicals, low gas permeability, good electrical properties, low flammability. -35°C to +125°C. Poor to fair fuel resistance and its low temperature properties are generally limited.

NBR

NBR (Nitrile Buna Rubber) known as Nitrile Butadine, Buna-N, Hycar, Chemigum, Butakon, Breaon, Butacril, Paracil, Nipol, Perbunan, Krynac or Europrene-N. Good for Aliphatic Hydrocarbons, Petroleum, Fuels, Mineral Oil, Vegetable and Hydraulic Oil, Alcohol and many Acids. -35°C to +100°C. Poor for Ozone, Acetone, Methyl ethyl Ketone, Chlorinated Hydrocarbons, Ethers and Esters.

Neoprene

Neoprene known as CR or Chloroprene. Good resistance to Freon and ammonia, flames, excellent UV resistance, Ozone, oxygen and sunlight, tough, abrasion resistant and has a low compression set with an outstanding ability to adhere to metals. -20°C to +110°C.

PTFE (Teflon)

PTFE (Polytetrafluoroethylene) also known as Teflon® Dupont registered. Excellent resistance to almost every fluid or gas. -200°C to +230°C

Silicone

Silicone (VMQ) known as PVMQ, Silastic, Siloprene, Rhodorsil or Silplus. Good resistance to Oil, solvents, aniline alcohol, dilute acids or bases, benzene, toluene, petrol. -60°C to +230°C. Poor resistance Diesel, hot air, steam over 150 C, strong acids and bases.

VST

VST (Viton-Silicone-Teflon). Has enhanced chemical resistance compared to Viton, especially against aggressive chemicals like ketones, esters, and some organic acids. Combines the properties of Viton, silicone, and Teflon, offering improved flexibility, compression set resistance, and low-temperature performance compared to standard Viton. -40°C to 200°C

Voltage

Approvals (EN,Ex,IP,CSA,UL etc)

ATEX Zone II GD

hazardous area classification indicating a potentially explosive atmosphere with gases and dust present, requiring specific equipment for safe operation.

ATEX Exm

ATEX Protection by encapsulation ll 2 G Ex mb ll T4 Gb and ll 2 D Ex tb IIIC T130°C Db IP65

IP54

Dust protected and protected against splashing water

IP65

Dust tight and protected against water jets

IP66

Dust protected and protected against powerful water jets.

IP67

Dust protected and protected against immersion in water

CSA

CSA approval certifies products for safety and performance, conducted by the Canadian Standards Association.

UL

UL (Underwriters Laboratories) approval indicates that a product has met safety standards set by UL for electrical devices and components.

Orifice

13mm

Valve orifice or sealing face with diameter 13mm

15mm

Valve orifice or sealing face with diameter 15mm

20mm

Valve orifice or sealing face with diameter 20mm

25mm

Valve orifice or sealing face with diameter 25mm

35mm

Valve orifice or sealing face with diameter 35mm

38mm

Valve orifice or sealing face with diameter 38mm

45mm

Valve orifice or sealing face with diameter 45mm

50mm

Valve orifice or sealing face with diameter 50mm

80mm

Valve orifice or sealing face with diameter 80mm

Operation

Assisted Lift

Assisted lift solenoid valve assists in opening against pressure, ensuring reliable operation from vacuum to medium pressure systems.

Pressure Assisted

Operate via pilot pressure control and require a minimum pressure difference between inlet and outlet from 0.5 Bar.

Options required

Degreased

Oil and grease removed typically for oxygen or paint spray use.

Manual Override

A facility to manually move the valve into the fully actuated position via a button, lever or key.

Only Show Items In Stock

Hide spare parts

All Brass Flanged Solenoid Valves

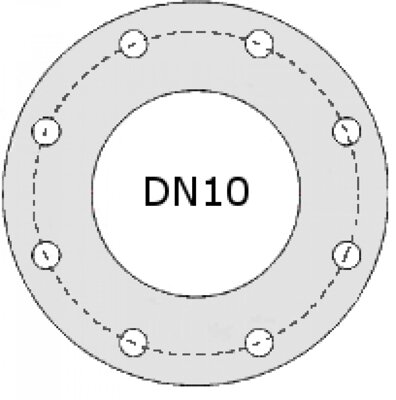

DN10 3/8 Flange Brass Solenoid Valves

DN15 1/2 Flange Brass Solenoid Valves

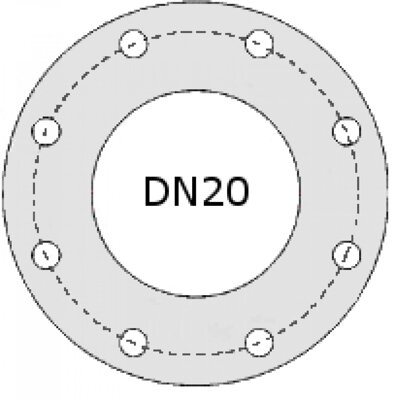

DN20 3/4 Flange Brass Solenoid Valves

DN25 1 Flange Brass Solenoid Valves

DN32 11/4 Flange Brass Solenoid Valves

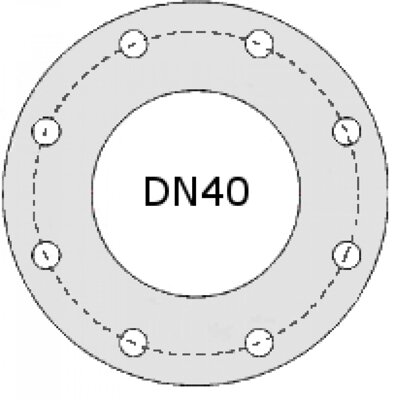

DN40 11/2 Flange Brass Solenoid Valves

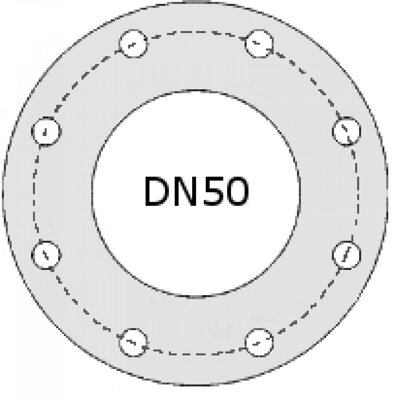

DN50 2 Flange Brass Solenoid Valves
