Valve / Product Type

Air Actuated Valve

air actuated valves that utilise a compressed air supply to operate.

Angle Seat Valve

Angle seat piston valves, air actuated globe valves.

Proportional Modulating

Flow regulating valves with manual or electric modulating 4-20mA control.

Solenoid Valve

Valves controlled by electrical signal via a solenoid or electro magnet.

Port Size

Media

Body Material

Polypropylene

PVC

Stainless Steel

Function

2/2 Failsafe Closed

2 ports (inlet/outlet) with 2 positions (Open/Closed) - valve stays closed (Failsafe) requires power to open

2/2 Failsafe Open

2 ports (inlet/outlet) with 2 positions (Open/Closed) - valve stays open (Failsafe) requires power to close

2/2 Double Acting

2 ports (inlet/outlet) with 2 positions (Open/Closed) - power or air one side to move - power or air opposite side to return.

3/2 Normally Closed

3 ports with 2 positions. Power off inlet closed, outlet open to exhaust - power on inlet open to outlet with exhaust closed.

3/2 Normally Open

3 ports 2 positions. Inlet open to outlet with exhaust closed - power on inlet closed with outlet open to exhaust.

3/2 Universal

3 ports, 2 positions flow can be in any direction. Can be piped as 3/2 normally closed flow into inlet, 3/2 normally open flow into exhaust, 3/2 diverting flow into outlet.

Proportional / Modulating

Valve opens proportionally according to signal input, either 4-20mA, 0-10v or 0-5 volt. Example 4mA valve closed, 8mA 25% open, 12mA 50% open, 18mA 75% open and 20mA fully open.

Pressure

Seals

EPDM

EPDM (Ethylene Propylene Diene Monomer) - known as Ethylene Propylene terpolymer, Buna-AP, Dutral, Polysar-EDM, Royalene, Vistalon, Keltan, Epcar, Nordel or Epsyn). Good for hot and drinking water, Steam, Freon refrigerant gas and Air -40°C to +120°C (+150°C steam) Poor resistance to oils + fuels

FKM (Viton)

FKM Fluoro elastomer (Fluorocarbon) Viton® Dupont registered, known as Tecnoflon, Fluorel, Dai-El. Good for hot water, acid, alkali, oils, hydrocarbons and salt solutions, many aggressive chemicals, diluted acids, weak alkali's, mineral oils, aliphatic and aromatic hydrocarbons, chlorinated hydrocarbons, sunlight and ozone. -26°C to +205°C. Poor resistance to Ketone's and Acetone.

PTFE (Teflon)

PTFE (Polytetrafluoroethylene) also known as Teflon® Dupont registered. Excellent resistance to almost every fluid or gas. -200°C to +230°C

Voltage

24vDC

24 volts Direct Current

230VAC

230 volts 50/60Hz Alternating Current

Approval: ATEX,WRAS,IP etc

ATEX Exm

ATEX Protection by encapsulation ll 2 G Ex mb ll T4 Gb and ll 2 D Ex tb IIIC T130°C Db IP65

IP65

Dust tight and protected against water jets

Orifice

Options required

Only Show Items In Stock

Hide spare parts

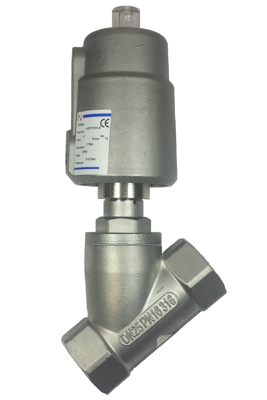

Angle Seat Piston Valves

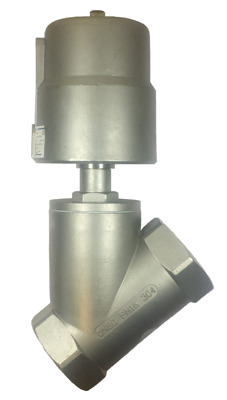

Angle Seat Piston Valves - Normally Closed

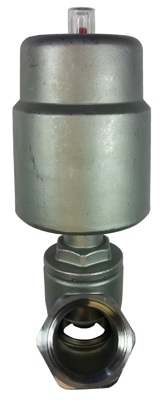

Angle seat piston valves - Normally Open

Angle seat piston valves - Double Acting

Filters

121 IN STOCK

183 IN STOCK

43 IN STOCK

20 IN STOCK

87 IN STOCK

23 IN STOCK

9 IN STOCK

10 IN STOCK

1 IN STOCK

5 IN STOCK

33 IN STOCK

24 IN STOCK

11 IN STOCK

9 IN STOCK

1 IN STOCK

5 IN STOCK

5 IN STOCK

2 IN STOCK

9 IN STOCK

5 IN STOCK
