How to Choose the Right Solenoid Valve for Your Application

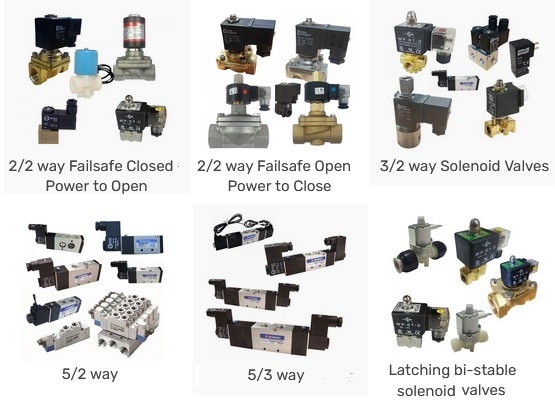

wysupload_1855

Selecting the correct solenoid valve is crucial for optimizing the performance and efficiency of your system. Whether you're working with fluid, gas, or steam control, understanding the technical specifications and operational needs of your application will ensure reliable and cost-effective results. Below is an in-depth guide to help you navigate the key factors to consider when choosing a solenoid valve.

1. **Valve Type Selection

The first step in choosing a solenoid valve is determining the appropriate valve type for your specific application. The type of valve dictates how fluid or gas is controlled, and different types serve unique purposes:

**Two-Way Valves**: These valves have one inlet and one outlet, making them ideal for simple on/off control applications. They are commonly used for switching the flow of fluids in either direction, offering reliable control for basic flow regulation.

**Three-Way Valves**: These valves feature one inlet and two outlets. They are typically employed in applications where fluid needs to be diverted or mixed, making them suitable for systems like HVAC, water treatment, or irrigation systems.

**Five-Way Valves**: These valves come with two inlets, two outlets, and an exhaust. They are essential for directional control and are often used in applications involving pneumatic cylinders, particularly in systems requiring double-acting cylinders.

2. **Valve Size and Flow Capacity**

The valve size is determined by the pipe diameter and flow capacity required by your application. Solenoid valves are typically rated according to their ability to handle specific flow rates and pipe sizes, such as 1/2", 3/4", or larger. Proper sizing ensures efficient fluid control without compromising system performance. It is critical to align the valve size with the flow requirements of your piping system to prevent flow restrictions or excessive pressure drops.

### 3. **Material Compatibility**

The material of the solenoid valve is a critical factor, as it must be compatible with the fluid being controlled. Solenoid valves are available in a variety of materials, including:

**Brass**: Commonly used for low-pressure, non-corrosive fluid systems.

**Stainless Steel**: Ideal for high-pressure systems or corrosive environments, offering excellent durability and resistance to wear.

**Plastic**: Suitable for low to medium pressure systems, especially in industries dealing with chemicals or food-grade applications.

**Aluminium**: Lightweight and durable, often used in pneumatic systems.

When selecting a material, consider factors like chemical compatibility, temperature resistance, and pressure ratings to ensure the valve can withstand the operational demands of your application.

4. **Pressure and Temperature Ratings**

Each solenoid valve is designed to operate within specific pressure and temperature ranges. It is essential to assess your system’s operational conditions and ensure the valve can handle the maximum pressure and temperature without failing. Exceeding these limits can lead to valve failure, leaks, or reduced lifespan

**Pressure**: Ensure the valve’s pressure rating matches the pressure in your system.

**Temperature**: Solenoid valves have specific temperature ranges. Make sure the selected valve can operate effectively in the temperatures your application will encounter.

5. **Electrical Requirements**

Understanding the electrical requirements is vital to ensure compatibility with your power supply. Solenoid valves come in various voltage configurations, such as:

**12V DC**

**24V DC**

**24V AC**

**110V AC**

**230V AC**

When selecting the appropriate voltage, ensure it matches your system’s power supply. Additionally, consider the type of electrical connection required—whether it is screw terminals, plug-in connectors, or flying leads—to ensure seamless integration with your wiring system.

6. **Valve Operation Mode: Normally Open vs. Normally Closed**

Solenoid valves can be classified based on their operation mode:

**Normally Open (NO)**: These valves allow flow when the solenoid is energized and shut off when the power is turned off. Typically used in applications where flow should be continuous unless interrupted by a signal.

**Normally Closed (NC)**: In contrast, NC valves prevent flow when the solenoid is energized and allow it when the power is off. They are often used in systems where flow should only occur when activated by the solenoid.

Choosing between NO and NC valves depends on your system's need for continuous or intermittent flow control.

7. **Environmental and Operating Conditions**

The environment in which the solenoid valve will operate plays a crucial role in valve selection. Factors such as ambient temperature, humidity, exposure to dust or corrosive substances, and even physical space limitations should all be considered. Solenoid valves are often rated with **Ingress Protection (IP)** ratings, which define their level of resistance to dust and water ingress. Common IP ratings include:

**IP65**: Dust-tight and water-resistant.

**IP67**: Fully dust-tight and capable of withstanding immersion in water.

Additionally, if the solenoid valve is used in hazardous environments, ensure it is certified for explosion-proof operation (e.g., ATEX certification).

8. **Industry Certifications and Standards Compliance**

If your application requires compliance with specific industry regulations or safety standards, it is essential to select a solenoid valve that meets those certifications. Common certifications include:

**WRAS (Water Regulations Advisory Scheme)** for potable water applications.

**ATEX** for explosive atmospheres in hazardous environments.

**UL (Underwriters Laboratories)** for electrical safety.

Verify that the valve adheres to any relevant standards to ensure safety, reliability, and legal compliance.

9. **Application-Specific Features**

Finally, consider any specialised features that may be necessary for your particular application. These can include:

**Manual Override**: Allows for manual control of the valve in case of solenoid failure or when power is unavailable.

**Flow Control**: Some solenoid valves come with built-in flow regulation capabilities to precisely control fluid rates.

**Explosion-Proof Housing**: For applications in hazardous environments, explosion-proof enclosures provide added safety.

**Special Seal Materials**: For high-temperature or chemically aggressive environments, special seals made from materials like Viton or PTFE may be necessary to prevent leaks and ensure long-term valve performance.

Use our solenoid valve search wizard to choose approvals and options required.

### Conclusion: Expert Guidance is Key

Choosing the right solenoid valve requires careful consideration of several technical factors, including valve type, size, material compatibility, pressure and temperature limits, and environmental conditions. Consulting with a knowledgeable supplier who specialises in solenoid valves can help ensure you select the best option for your application. They can provide valuable insights and recommendations based on your system’s unique needs, ensuring long-lasting, efficient, and safe operation.

For more information and expert advice on choosing the perfect solenoid valve for your system, contact our technical sales team.
