Description

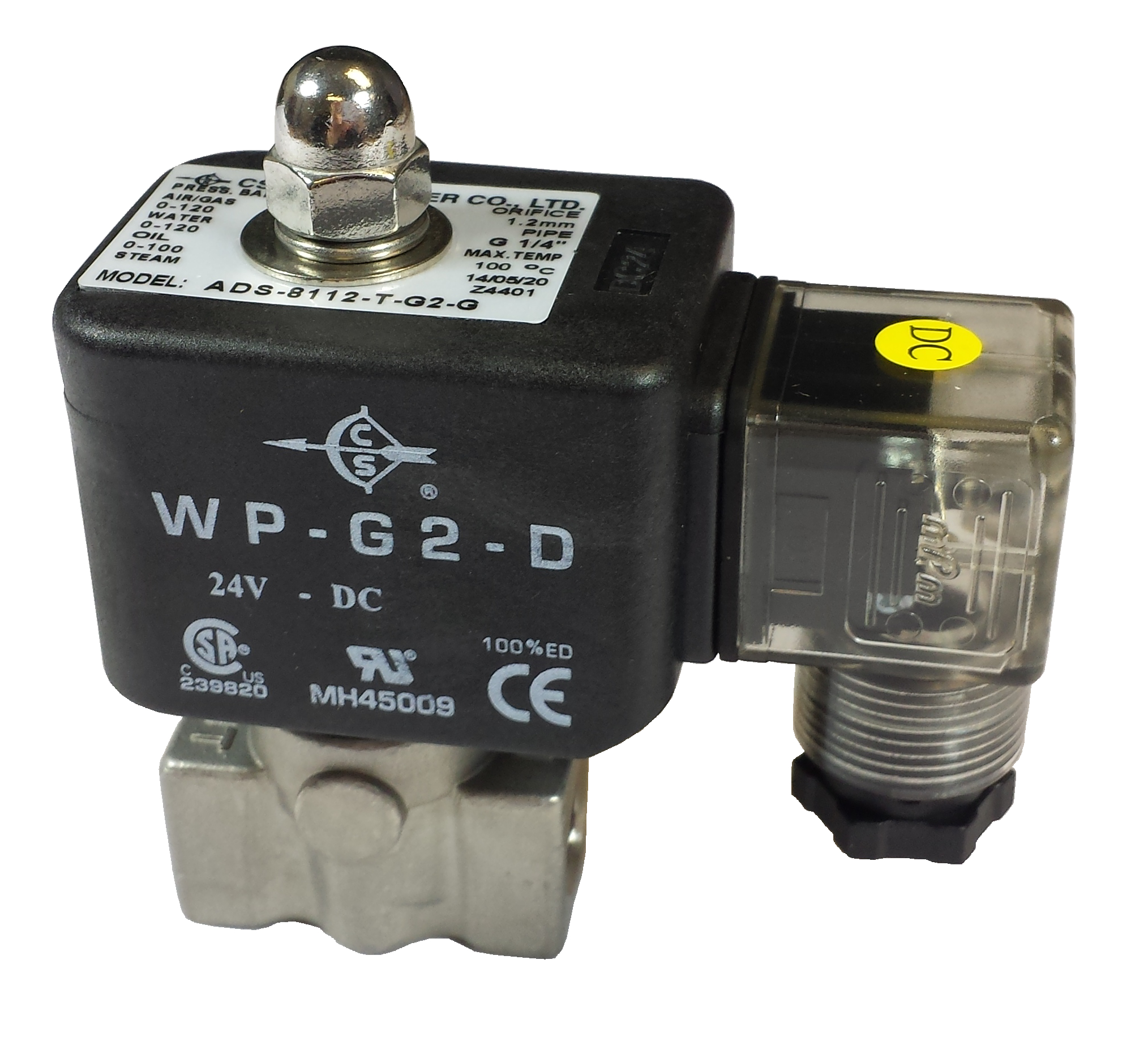

1/4 inch Miniature stainless solenoid valve CS Fluid Power ADS8000.
Function: 2/2 way normally closed
Operation: direct acting
Port: 1/4 BSP standard, option NPT or Rc thread.
Body: 316 stainless steel
Internals: stainless steel
Pressure: 0 to 150 Bar (PTFE seals required for pressure 30 Bar or more)
Vacuum: Torr 10-6 Max
Temperature: +180°C Max according to seals
Orifice: 1.2mm, 1.6mm, 2.0mm, 3.0mm, 4.0mm or 5.0mm
Kv flow factor: 1 to 9.15 according to orifice, based on water with 1 Bar pressure drop.
Seals: FKM standard, Option EPDM, NBR, Silicone, PTFE, VST, Neoprene, ECO, HNBR, Hypalon, Butyl IIR. PTFE must be used for pressures over 30 Bar.
Media: air, water, light oils, vacuum, and most other non corrosive fluids under 50CST and gases that are compatible with materials of construction.
Coil: WPG1 12 watt UL, CSA, CE, IP67 Class H 100% duty rated DIN43650A
Coil: WPG2 18 Watt UL, CSA, CE and IP67 Class H 100% duty rated
Coil option: WPA3C 14.3 to 27.5 Watt (according to voltage) IP54 Class H with 30cm flying lead wires 100% duty rated.
Coil option: ATEX EExmIIT4 Temperature Class T4 T130°C Ex mb IIC T4 and Gb Ex mb tb IIIC T130°C Db for hazardous area 21 and 22 Pressure same as 12 Watt WPG1 coil
Voltages: 12vDC, 24vDC, 48vDC or 24vAC, 48vAC, 110vAC or 230vAC.
Other options: Manual Over Ride, Silver shading ring, degreased and other custom made options.

Equivalent To

ACL solenoid valve, e110be15, e110bv15, e110bb15, e110be20, e110bv20, e110bb20, e110be25, e110bb25, e110bv25, e110be35, e110bb35, e110bv35, e110be52, e110bb52, e110bv52, E110BV35/A, D110BE35, D110BB35, D110BV35, D110BV20, D110BE20, D110BB20, D110BB52, D110BV52, D110BE52, D110BE15, D110BB15, D110BV15
Asco solenoid valve, sce272a031, sce272a046, sce272a032, sce272a047, sce272a033, sce272a048, sce272a034, sce272a035, SCG256B414VMS, CG256B434VMS, SCG256B416VMS, CG256B436VMS, 8262H198, 8262H199, 8262H130, 8262H205, 8262H134, 8262H219, 8262H138, 8262H223, 8262H142, 8262H224, 8262H148, 8262H225, 8262H152, SCG256B434VMS, SCG256B436VMS, E262K214S1W00 (2)
8262K214S1W00, 8262K080S1N00, 8262K086S1N00, E262K182S1N00, 8262K182S1N00, E262K183S1N00, 8262K183S1N00, 8262K007S1N00, E262K184S1N00, 8262K184S1N00, E262K185S1N00, 8262K185S1N00, E262K220S1N00, 8262K220S1N00, E262K187S1N00, 8262K187S1N00, E262K226S1N00, 8262K226S1N00, E262K188S1N00, 8262K188S1N00, 8262K036S1N00, 8262K038S1N00, E262K189S1N00, 8262K189S1N00, E262K230S1N00, 8262K230S1N00, E262K182S1N01, 8262K182S1N01, E262K183S1N01, 8262K183S1N01, E262K184S1N01, 8262K184S1N01, E262K185S1N01, 8262K185S1N01, E262K220S1N01, 8262K220S1N01, E262K187S1N01, 8262K187S1N01, E262K226S1N01, 8262K226S1N01, E262K188S1N01, 8262K188S1N01, E262K189S1N01, 8262K189S1N01, E262K230S1N01, 8262K230S1N01
Burkert 6027 compact, 184689, 184690, 184692, 184693, 20292, 252750, 191909, 216883, 216992, 126085, 136065, 168495, 136520, 280063, 430774, 231571, 461299, 466320, 23984, 25179, 20004682, 20008303, 225466, 271439, 281513, 207860, 368772, 277474, 391455, 386750, 386762, 20002472, 20012855, 380710, 380715, 380720, 2008463, 393076, 380713, 380719, 380721, 267217, 364029, 300602, 380708, 380709, 372715, 369248, 385685, 262988, 281099, 302886, 304083, 382028, 20010646, 393984, 205407, 218385, 261384, 271440, 271441, 292974, 308851, 308852, 308854, 366723, 390005, 394367, 393589, 20007469, 283278, 310899, 352894, 361198, 386756, 386768, 380717, 380723, 380724, 20008463, 393162, 393020, 393163, 344788, 267234, 267235, 308845, 308846, 394783, 369597, 286822, 320664, 384645, 6013, 137533, 137534, 137536, 125317, 126082, 126084, 125318, 125319, 125320, 126086, 126087, 126089, 255379, 251198, 184741, 18276, 24563, 17684, 18131, 284532, 263185, 123516, 130546, 136291, 274123, 247217, 457687, 292529, 308842, 281171, 6013A, 137820, 137821, 137822, 137823, 137824, 137825, 177806, 177807, 177808, 184739, 184740, 278718, 278719, 215024, 215028, 203855, 267237, 178239, 178240, 178241, 178243, 178244, 178245, 178247, 178248, 178249, 300603, 318327, ATEX, 288439, 278601
CS Fluid Power ADS8012, ADS8016, ADS8020, ADS8112, ADS8116, ADS8120, ADS8130, ADS8140, ADS8150, ADS8212, ADS8216, ADS8220, ADS8230, ADS8250, ADS-8112-T-G2-N, ADS8112PTFE-24VAC-NPT, ADS-8112-T-G2-G, ADS-8116-T-G2-G
Danfoss, 180L0241 Type VDHT
mandm vflow solenoid valve d299dvc, d299dvg, d299dvh, d299dvl, d299dvn, fss-14, D299DRB1, D299DRC1, D299DRE1, D299DRG1, D299DRH1, d299dke, d299dkg, d299dkh, d299dec, d299deg, d299deh, d299del, d299den
Nadi, L02I08C0P, L02I08C1P, L02I08C3P, L02I08C6P, L02I18C0P, L02I18C1P, L02I18C3P, L02I18C6P, L02I25C0P, L02I25C1P, L02I25C3P, L02I25C6P, L02I32C0P, L02I32C1P, L02I32C3P, L02I328C6P
Norgren, Herion, Buschjost, solenoid valve 8256000.8004.23049, 8256000.8001.02400, 82730XX.9101.00000
ODE solenoid valve, 21l2qdv15, 21l2qdv20, 21l2qdv25, 21l2qdv30, 21l2qdv45, 21lqdv55, 21L2K1T25, 21L2K1T30, 21L2K1T40, 21L2K1T40, 21L2K1T55, 21L2QDV40, 21L2QDV55
Parker, 201LG2GVG7A, 201LG2GKG7A, 201LG2NVG7, 201LG2NVG7A, 201LG2NVG7, 201LG2NVG7A, 201LG2NKG7A, 201LG2NKG7A, 201LG2QVG7, 201LG2QVG7A, 201LG2QVG7, 201LG2QVG7A, 201LG2QKG7A, 201LG2QKG7A, 201LG2SVG7, 201LG2SVG7A, 201LG2SVG7, 201LG2SVG7A, 201LG2SKG7A, 201LG2SKG7A, 71215SN2VN00, 201LG2GVG2, 121V5406, 121V5463, 121V5497, 121V5706, 121V5763, 121V5306, 121V5363, 121V5397, 121V5206, 121V5212, 121V5263, 121V5106, 121V5112, 121V5163, 501CG2GVG7, 501CG2LVG7
Sirai, solenoid valve l176v07-14
Skinner, Honeywell, 71235SN2AN00, 71235SN2EN00, 71235SN2GN00, 71235SN2KN00, 71235SN2MN00, 73216sn2mt00, 71216sn2fu00, 71216sn2gl00, 71215sn2ef00, 71215sn2gf00, 71216sn2jt00, 71215sn2en00, 71215sn2gn00, 73212sn2mn00, 71215sn2kn00, 71215sn2kf00, 71215sn2mf00, 71215sn2mn00, 71215sn2qn00, 71215sn2sn00, 71214vn2kn00, 71214vn2kt00, 71214vn2mn00, 71214vn2mt00, 712155sn2vn00, 71214vn2qn00, 71214vn2qt00, 71214vn2sn00, 71214vn2st00, 71215sn21n00
