1/4 Stainless Solenoid Valve 0-10 Bar 2/2 N/Closed 3,4+5mm
£84.40
£115.09 incl. VATMisc Option
Description

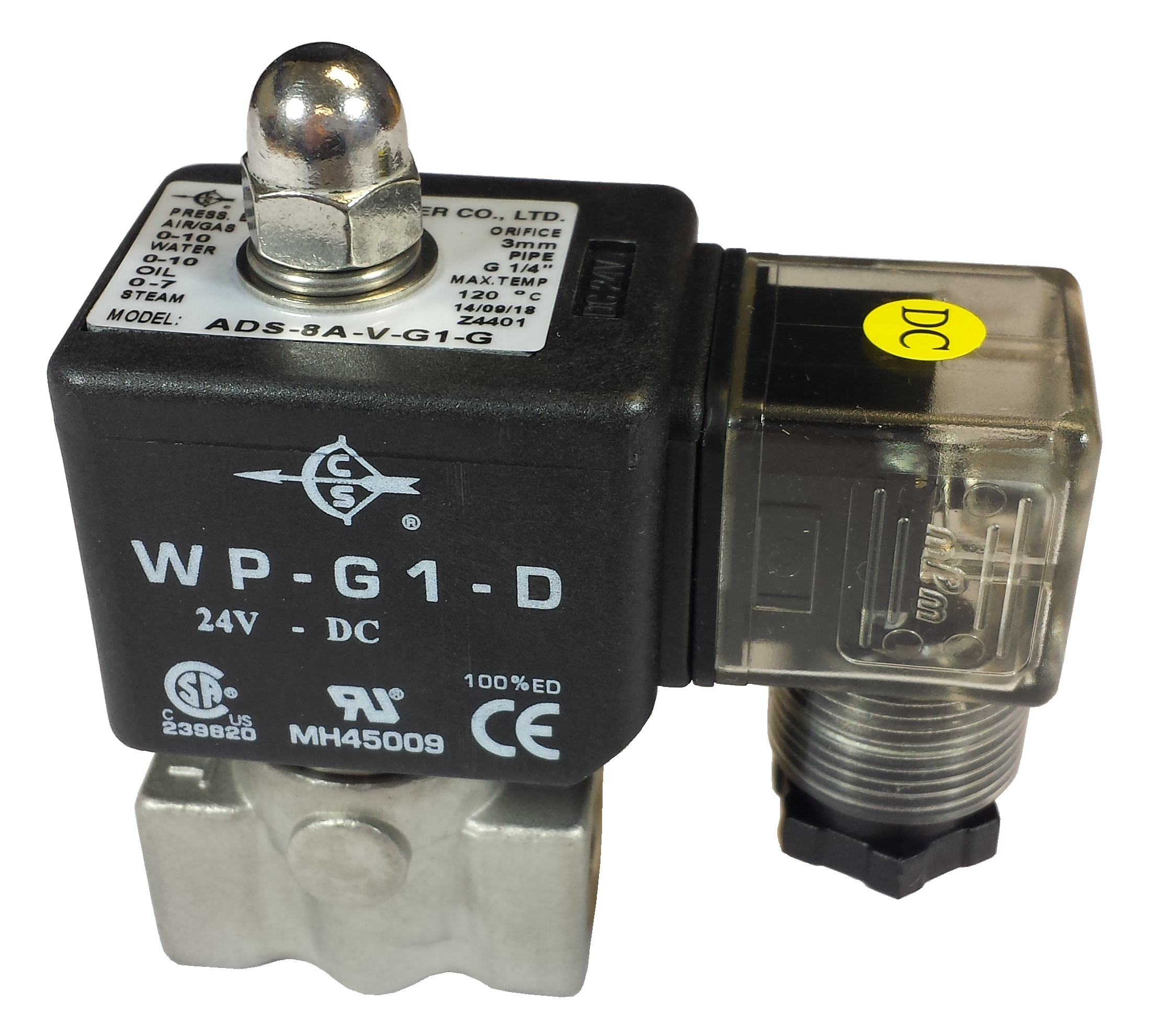

1/4 inch Stainless solenoid valve CS Fluid Power ADS8A, ADS8B + ADS8C.
Function: 2/2 way normally closed
Operation: direct acting
Port: 1/4 BSPT, option NPT thread
Body: 316 stainless steel
Internals: stainless steel
Pressure: 0 to 10 Bar according to voltage and orifice
Vacuum: 0 to -101kPa (relative 757.56 mmHg) or 99.67% vacuum
Orifice: 3mm (ADS8A), 4mm (ADS8B) and 5mm (ADS8C).
Flow: 3.71 to 9.2 L/Min according to orifice, based on water with 1 Bar pressure drop.
Temperature: -10 to +180°C Max according to seal material
Sealing: FKM standard, Option EPDM, NBR, Silicone, PTFE, VST, Neoprene, ECO, HNBR, Hypalon, Butyl IIR
Media: air, water, light oils, vacuum and most other fluids under 50CST and gases compatible with materials of construction.
Coil: WPG1 12 Watt UL, CSA, IP67 CE approved Class H 100% duty rated DIN43650A
Protection: IP65 with LED connector (Included)
Coil Option: ATEX EExmIIT4 Temperature Class T4 T130°C Ex mb IIC T4 and Gb Ex mb tb IIIC T130°C Db for hazardous area 21 and 22 (Replacing WPG 1 pressure range same, WPG2 is 70% of DC pressure).
Voltage: 12vDC, 24vDC, 48vDC or 24vAC, 48vAC, 110vAC or 230vAC.
Other options: Manual Override, silver shading ring, degreased for oxygen use.
Technical Specification
Brand: CS Fluid Power
Model: ADS8
Width: 19.00 mm
Height: 89.00 mm
Depth: 41.00 mm
Weight: 0.51 kg
Valve / Product Type: Solenoid
Body Material: Stainless Steel
Voltage: 110vAC, 12vDC, 230VAC, 24vAC, 24vDC, 380vAC, 48vDC
Port Size: 1/4 Inch
Function: 2/2 Normally Closed
Operation: Direct Acting
Pressure Maximum: 0.02 Bar (20 mBar), 0.1 Bar (100 mBar), 0.2 Bar (200 mBar), 0.3 Bar (300 mBar), 0.4 Bar (400 mBar), 0.5 Bar (500 mBar), 0.6 Bar (600 mbar), 0.7 Bar (700 mBar), 0.8 Bar (800 mBar), 1 Bar, 1.2 Bar, 1.3 Bar, 1.4 Bar, 1.5 Bar, 1.6 Bar, 2 Bar, 2.5 Bar, 3 Bar, 3.5 Bar, 4 Bar, 4.5 Bar, 5 Bar, 5.5 Bar, 6 Bar, 6.5 Bar, 7 Bar, 7.5 Bar, 8 Bar, 8.5 Bar, 9 Bar, 10 Bar
Seals: ECO, EPDM, FKM (Viton), HNBR, Hypalon, NBR, Neoprene, PTFE (Teflon), Silicone, VST
Approvals: ATEX Zone II GD, ATEX Exm, IP54, IP65, IP67, CSA, UL
Media: Air, Fluid >50cSt (Non Aggressive), Fluid >50cSt (Slight Acid/Alkali), Gases (Non Aggressive), Gases (Slight Acid/Alakli), Oils + Fuels >50cSt Max, Steam, Vacuum (High), Vacuum (Low), Vacuum (Medium), Water, Water (RO/Pure/Demin)
Options required: Degreased, Manifold, Manual Override, Mounting Holes, Shading Ring - Silver
Orifice: 3.0mm, 4.0mm, 5.0mm
