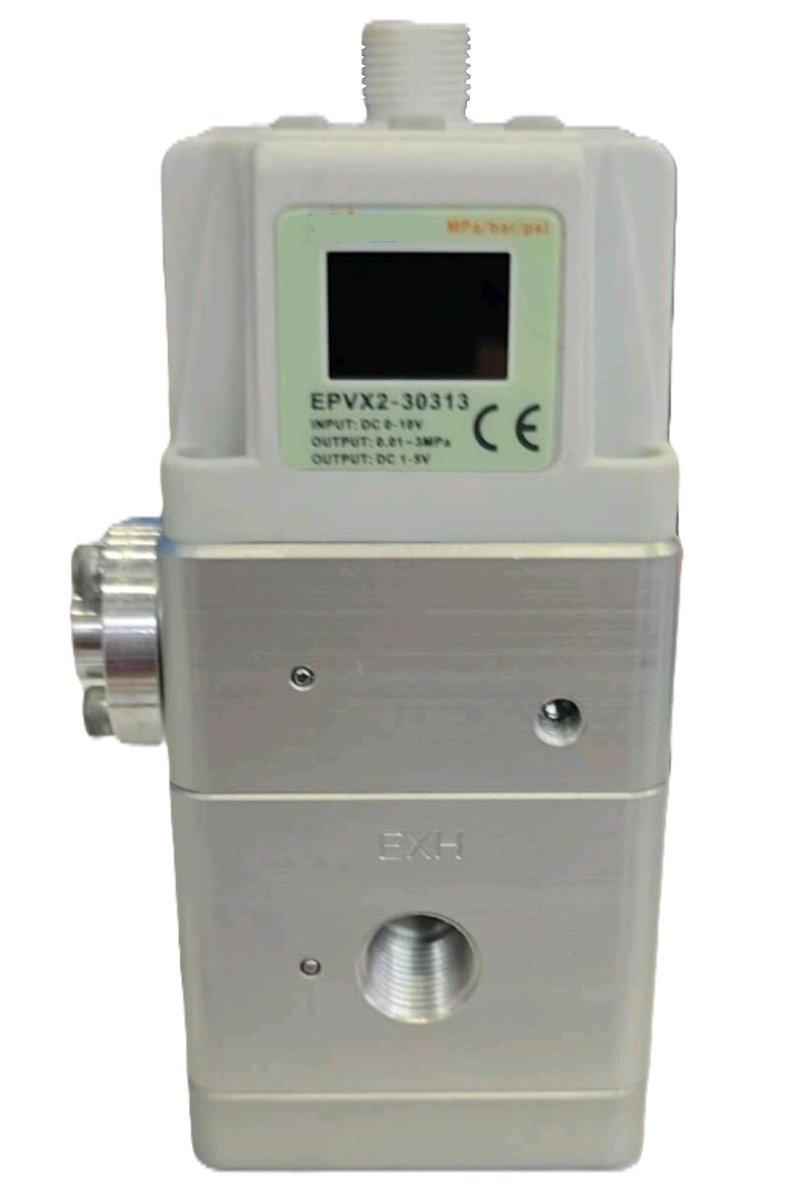

Introducing the EPVX2: High-Precision Pressure Control for Demanding Industrial Applications

In high-stakes industries where precision, safety, and responsiveness are non-negotiable, traditional pneumatic control systems often fall short. The EPVX2 High Pressure Proportional Valve is engineered to change that.

Precision You Can Trust

With a control range from 0.01 to 3.0 MPa (0.1 to 30 Bar) and linearity and repeatability within ±1% FS, the EPVX2 delivers exceptional pressure regulation across a wide range of industrial gases including air, nitrogen, oxygen, and argon. Whether you're calibrating delicate instruments or managing high-throughput automation lines, this valve ensures accurate and repeatable results.

Intelligent Control and Versatility

Designed to integrate seamlessly into your control systems, the EPVX2 supports multiple input signals:

Analog: 0–5V, 0–10V, 4–20mA, 0–20mA

Output feedback: 1–5V or 4–20mA

Digital I/O: NPN/PNP switch signals

This versatility allows the EPVX2 to adapt to legacy systems or cutting-edge PLCs with ease, making it ideal for retrofitting as well as new installations.

Precision You Can Trust

With a control range from 0.01 to 3.0 MPa (0.1 to 30 Bar) and linearity and repeatability within ±1% FS, the EPVX2 delivers exceptional pressure regulation across a wide range of industrial gases including air, nitrogen, oxygen, and argon. Whether you're calibrating delicate instruments or managing high-throughput automation lines, this valve ensures accurate and repeatable results.

Intelligent Control and Versatility

Designed to integrate seamlessly into your control systems, the EPVX2 supports multiple input signals:

Analog: 0–5V, 0–10V, 4–20mA, 0–20mA

Output feedback: 1–5V or 4–20mA

Digital I/O: NPN/PNP switch signals

This versatility allows the EPVX2 to adapt to legacy systems or cutting-edge PLCs with ease, making it ideal for retrofitting as well as new installations.

Flexible Configuration, Fast Integration

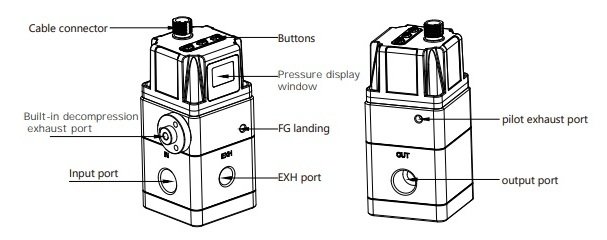

Available in 3/8 BSP or NPT Thread, bracket options (L and B-type), and cable orientations (straight or right-angle 3m cables), the EPVX2 is built for practical installation in space-constrained or harsh environments. A user-friendly interface with programmable set points (F-1/F-2 and P-1/P-2) allows quick setup with built-in safeguards against accidental mis configuration.

Safety and Stability at the Core

When handling oxygen and other critical gases, safety is paramount. The EPVX2 is manufactured with:

Built-in decompression and venting design

Noise-reducing grounding and shielding

Fail-safe behaviour in case of power or pressure loss

Clear warnings and precautions for oxygen use

Its robust structure and built-in protection against over voltage, static discharge, and power failure make it a smart investment for demanding environments.

Industrial Applications

The EPVX2 is ideal for:

Semiconductor manufacturing

Medical gas supply systems

Pneumatic testing systems

Automated welding and plasma cutting

Environmental simulation chambers

Wherever high-pressure, high-accuracy, and fail-safe performance matter — the EPVX2 is the solution.

Ready to transform your pressure control?

How to order.

Specification.

Model Code EPVX2
Min. supply pressure 0.5MPa, or ±0.2MPa above set pressure
Max. supply pressure 5MPa
Setting pressure range 0.01~3.0MPa
Power Voltage DC24V±10%
Current Static ≤0.1A; max. ≤0.3A
Input Signal Voltage Type DC 0~5V, DC 0~10V
Current Type DC 4~20mA, DC 0~20mA
Input Impedance Voltage Type 6.6kΩ or less
Current Type 250Ω (at room temperature)
Output Signal Analog output DC 1~5V (load impedance 1kΩ or more)
DC 4~20mA (load impedance 250Ω or less)
Switching Output NPN-OC output: 30mA
PNP-OC output: 30mA
Linearity ±1%FS or less
Hysteresis accuracy 1%FS or less
Repeatability ±1%FS or less
Temperature behaviour ±1%FS or less
Pressure accuracy ±2%FS or less
Unit MPa; bar; psi
Working medium air, O₂, N₂, Ar
Ambient and Media temp. 0 ~ 50°C
Weight 590g

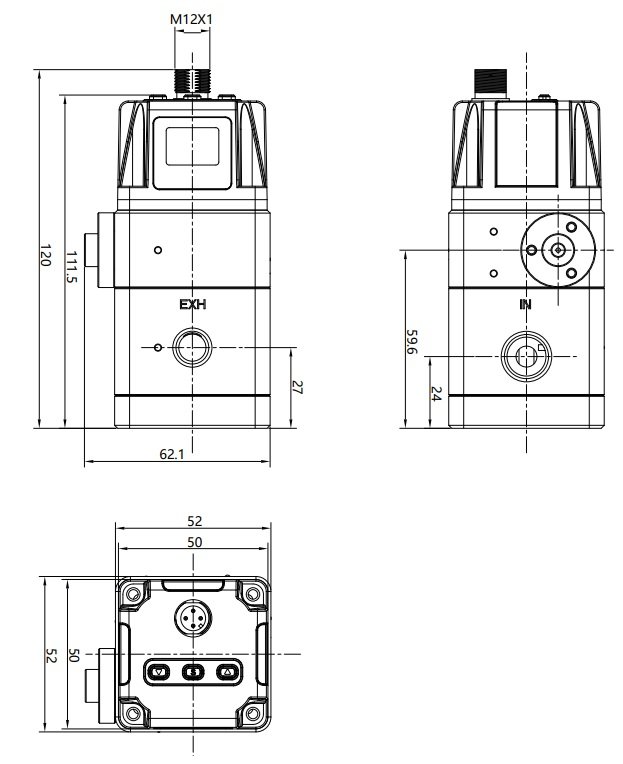

Dimensions

Download the EPVX2 data sheet here.

View all Pressure Control Valves.

Contact us today to request a quotation or help integrate the EPVX2 into your next project.
