1/8 1/4 Stainless solenoid valve 0-20 Bar 2/2 N/Closed +Open
£65.03
£86.71 incl. VATDescription

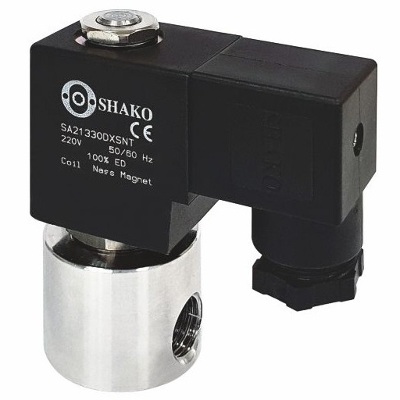

Shako Stainless steel solenoid valve 2/2 N/Closed & N/Open SPU220AR
Port: 1/8 or 1/4 BSPT, option NPT or Rc thread
Mounting holes: M5
Function: 2/2 Way Normally Closed or normally open
Operation: Direct acting
Body: AISI303 stainless steel
Internals: stainless steel
Pressure: 0 to 20 Bar according to orifice.
Media Temperature: +50°C NBR, +80°C VITON or +120°C EPDM and PTFE seals
Orifice: 1.6mm, 2.4mm, 3.2mm, 4mm or 5mm.
Kv flow factor: 1.43 to 7.15 L/min according to orifice, based on water with 1 Bar pressure drop.
Opening/closing time: 10-20 milliseconds Max
Seals: VITON standard with options EPDM, NBR or PTFE (PTFE normally closed only).
Media: air, water, light oils, vacuum and most other fluids under 40 CST and gases compatible with materials of construction.
Coil: 15 Watt IP65 Nass Magnet Class F DIN43650A 100% duty rated.
Protection: IP65 with connector (Included)
Coil option: ATEX EExmIIT4 Temperature Class T4 T130°C Ex mb IIC T4 and Gb Ex mb tb IIIC T130°C Db for hazardous area 21 and 22
Voltage: 12vDC, 24vDC, 24vAC, 110vAC or 230vAC, other options 48vDC, 80vDC, 190vDC, 12vAC, 48vAC etc available upon request
Weight: 242g (with coil + connector)
Technical Specification
Brand: Shako Co Ltd
Model: SPU220AR
Width: 35.00 mm
Height: 81.30 mm
Depth: 35.00 mm
Weight: 0.24 kg
Valve / Product Type: Solenoid Valve
Body Material: Stainless Steel
Voltage: 12vDC, 24vDC, 24vAC, 48vAC, 48vDC, 110vAC, 230VAC, 200vDC
Port Size: 1/8 thread, 1/4 thread
Operation: Direct Acting
Pressure Maximum: 0.02 Bar (20 mBar), 0.1 Bar (100 mBar), 0.2 Bar (200 mBar), 0.3 Bar (300 mBar), 0.4 Bar (400 mBar), 0.5 Bar (500 mBar), 0.6 Bar (600 mbar), 0.7 Bar (700 mBar), 0.8 Bar (800 mBar), 1 Bar, 1.2 Bar, 1.3 Bar, 1.4 Bar, 1.5 Bar, 1.6 Bar, 2 Bar, 2.5 Bar, 3 Bar, 3.5 Bar, 4 Bar, 4.5 Bar, 5 Bar, 5.5 Bar, 6 Bar, 6.5 Bar, 7 Bar, 7.5 Bar, 8 Bar, 8.5 Bar, 9 Bar, 10 Bar, 12 Bar, 13 Bar, 14 Bar, 15 Bar, 16 Bar, 17 Bar, 18 Bar, 20 Bar
Seals: EPDM, FKM (Viton), HNBR, NBR, PTFE (Teflon)
Approvals (EN,Ex,IP,CSA,UL etc): ATEX Exm, IP65
Media: Air, Fluid (Non Aggressive), Fluid (Slight Acid/Alkali), Fluid Thick 51>500cSt, Gases (Non Aggressive), Gases (Slight Acid/Alakli), Oils + Fuels 50cSt Max, Vacuum (Low), Vacuum (Medium), Water, Water (RO/Pure/Demin)
Options required: Mounting Holes
Orifice: 1.6mm, 2.4mm, 3.0mm, 4.0mm, 5.0mm
Function: 2/2 Normally Closed, 2/2 Normally Open
