DIN Electrical Connector Form A LED TVS PG9 (5-7mm) 24v
£11.95 incl. VAT -30%
£9.96
ex. VAT
Was £17.06 incl. VAT
Description

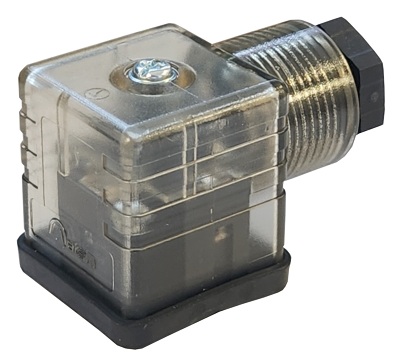

DIN Electrical Connector Form A LED TVS PG9 (5-7mm) 24V
High-quality DIN 43650 Form A electrical connector with integrated LED status indication and TVS (Transient Voltage Suppressor) surge protection for 24V AC/DC solenoid valves and coils. Designed to protect electrical circuits from voltage spikes whilst providing clear visual confirmation of power supply status.
Manufactured with a robust PA6/PA12 housing and supplied complete with NBR gasket and central fixing screw, this connector provides IP65 environmental protection when correctly assembled. The PG9 cable gland accommodates cable diameters from 5mm to 7mm, making it suitable for a wide range of industrial valve and automation applications.
The integrated TVS suppressor helps protect sensitive control equipment from switching transients generated by solenoid coils, improving reliability and extending component life.
Key Features
✓ DIN 43650 / EN175301-803 Form A connector
✓ Integrated yellow LED power indication
✓ TVS surge suppression protection (400W peak)
✓ Suitable for 24V AC or 24V DC operation
✓ PG9 cable gland for 5-7mm cable diameter
✓ IP65 protection when assembled correctly
✓ 2P + PE configuration
✓ Screw terminal connections
✓ Supplied with NBR gasket and fixing screw
✓ Operating temperature -20°C to +80°C
Technical Specification
Voltage: 24V AC/DC
Current Rating: 4A
Surge Protection: TVS (Transil), 400W Peak
LED Colour: Yellow
Standard: EN175301-803 A (DIN 43650 Form A)
Protection Class: IP65
Cable Entry: PG9
Suitable Cable Diameter: 5-7mm
Pin Size: 6.3 x 0.8mm + 4.8 x 0.8mm
Temperature Range: -20°C to +80°C
Housing Material: PA12 Transparent HB-UL94
Contact Holder: PA6 GF Black HB-UL94
Related Products & Categories.
Form A Electrical Connectors
Replacement Solenoid Coils
Solenoid Valves
Technical Specification
Brand: Connexion
Model: DIN2LEDYTVS
Width: 28.00 mm
Height: 31.00 mm
Depth: 28.00 mm
Weight: 0.05 kg
Voltage: 24vDC, 24vAC
Seals: NBR
Approvals:: IP65, UL
Spares (Coils, Connectors, Seals): DIN connector Form A
